Active Registration Area Control / Function
The paper fed from the pre-registration area is fed to the transfer area.
To realize the high productivity, the paper continues to be fed during the skew correction
control, side registration control and leading edge registration control.
M22
M24
M25
M26
PS47
PS48
PS49
PS50
PS59
PS60
PS53
PS54
PS51
PS52
PS45
PS46
PS44

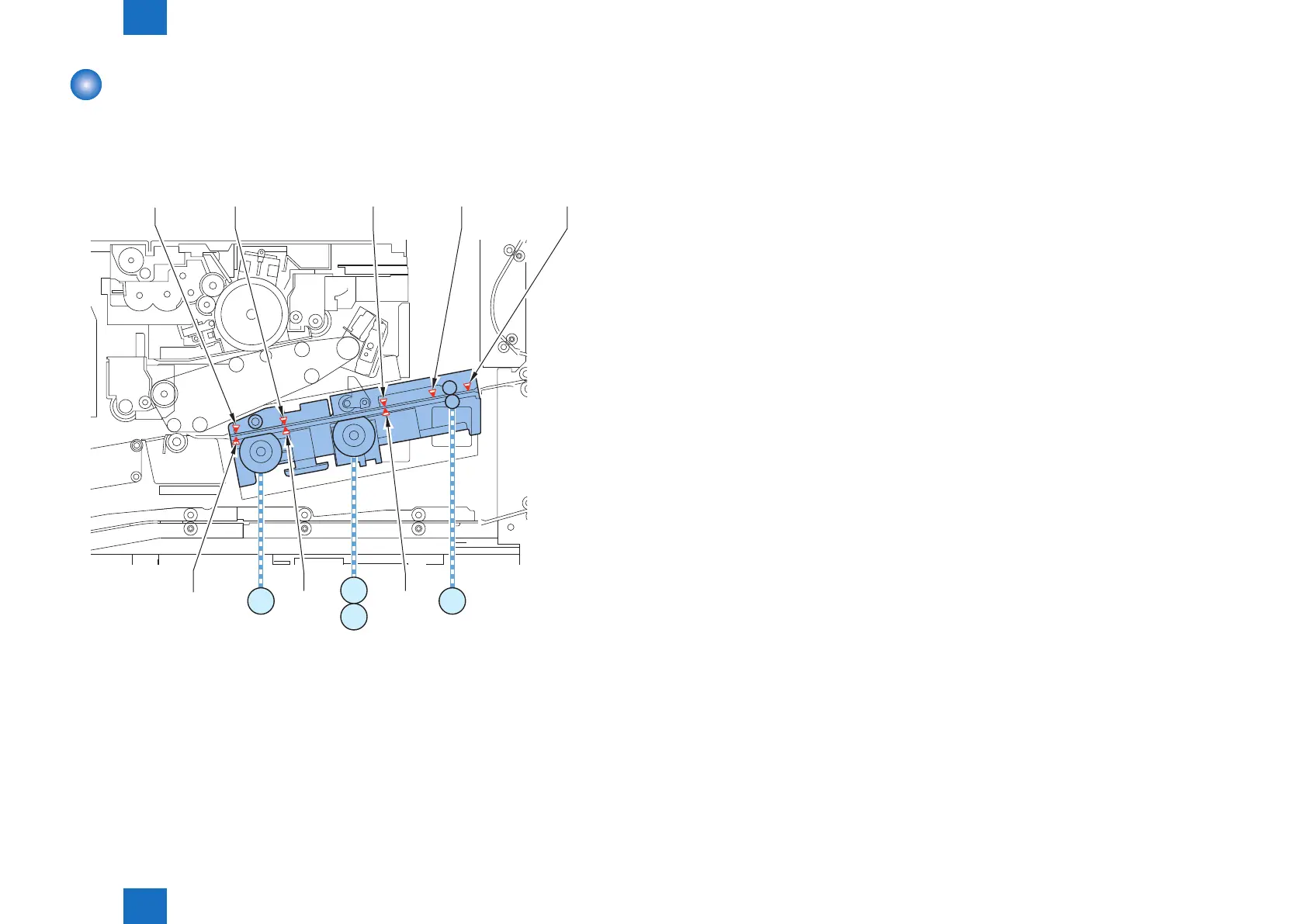

F-2-158
M22 Pre-registration motor
M24 Skew correction motor
1
M25 Skew correction motor
2
M26 Registration motor
PS44 Pre-registration roller separation sensor
PS45 Pre-registration sensor (front)
PS46 Pre-registration sensor (rear)
PS47 Primary skew sensor (front)
PS48 Primary skew sensor (rear)
PS49 Secondary skew sensor (front)
PS50 Secondary skew sensor (rear)
PS51 Primary skew sensor for transparency (front)
PS52 Primary skew sensor for transparency (rear)
PS53 Secondary skew sensor for transparency (front)
PS54 Secondary skew sensor for transparency (rear)
PS59 Post-registration sensor
PS60 Post-registration sensor for transparency
