Removing Secondary Transfer Inner Roller
<Preparation>
1) Open the Front Left Cover and the Front Right
Cover.
(Refer to page 4-54)
2) Remove Process Unit Cover.
(Refer to page 4-71)
3) Pull Out ITB Unit.
(Refer to page 4-83)
4) Remove ITB Cleaning Unit.
(Refer to page 4-227)
5) Remove Patch Sensor Unit.
(Refer to page 4-88)
6) Remove ITB.
(Refer to page 4-219)

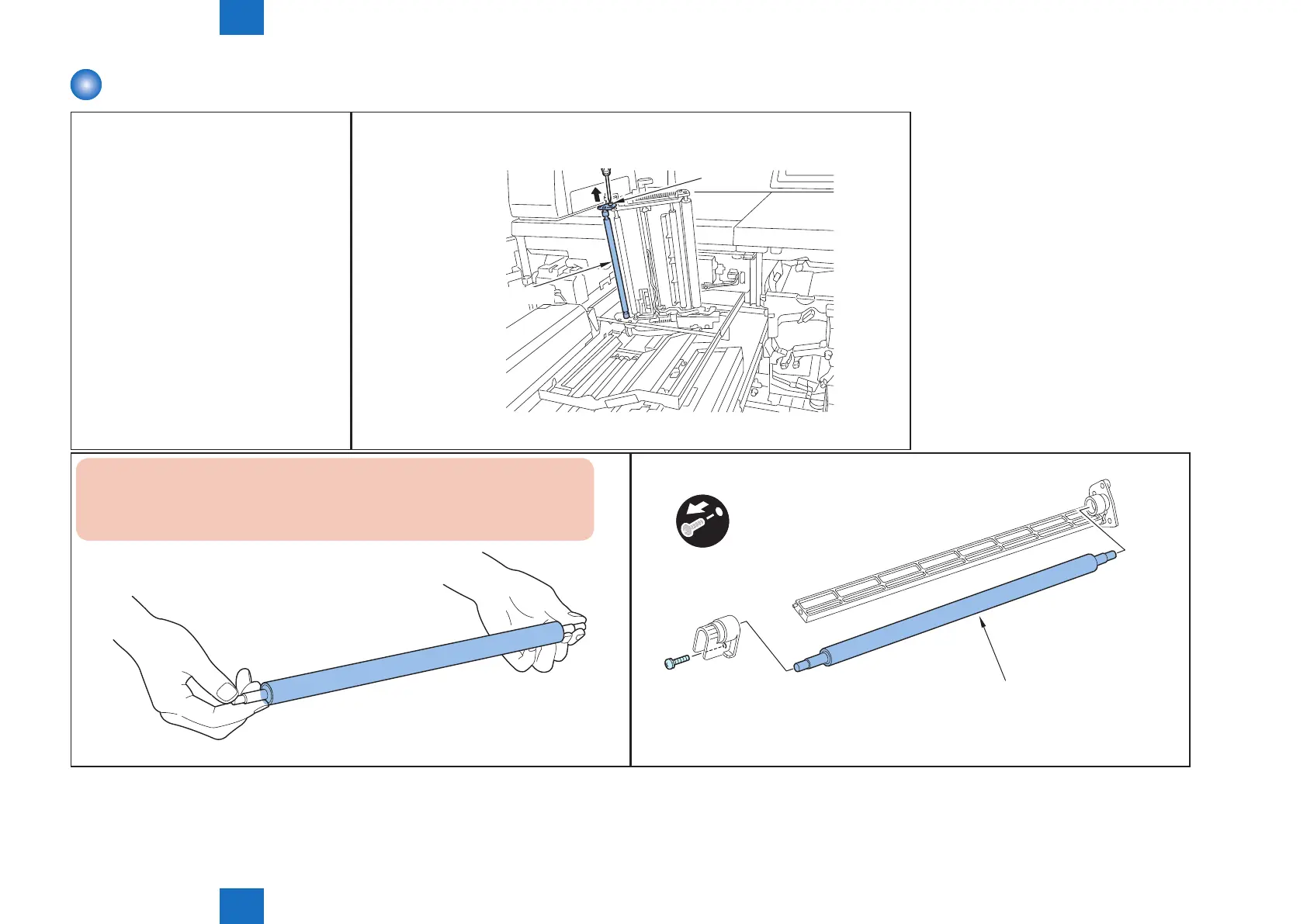

1) Loosen the screw and remove the secondary transfer inner roller unit (including the secondary
transfer mounting plate).
• 1 screw
Secondary transfer
inner roller unit
Screw
F-4-453
Caution :
Be careful not to touch the surface of secondary transfer inner roller because it
may cause the image failure.
F-4-454
2) Remove the secondary transfer inner roller.
Secondary transfer inner roller
F-4-455
