Service Mode > Overview > Display of Error Code/Alarm Code description
Service Mode > Overview > Display of Error Code/Alarm Code description
I/O information enhancement

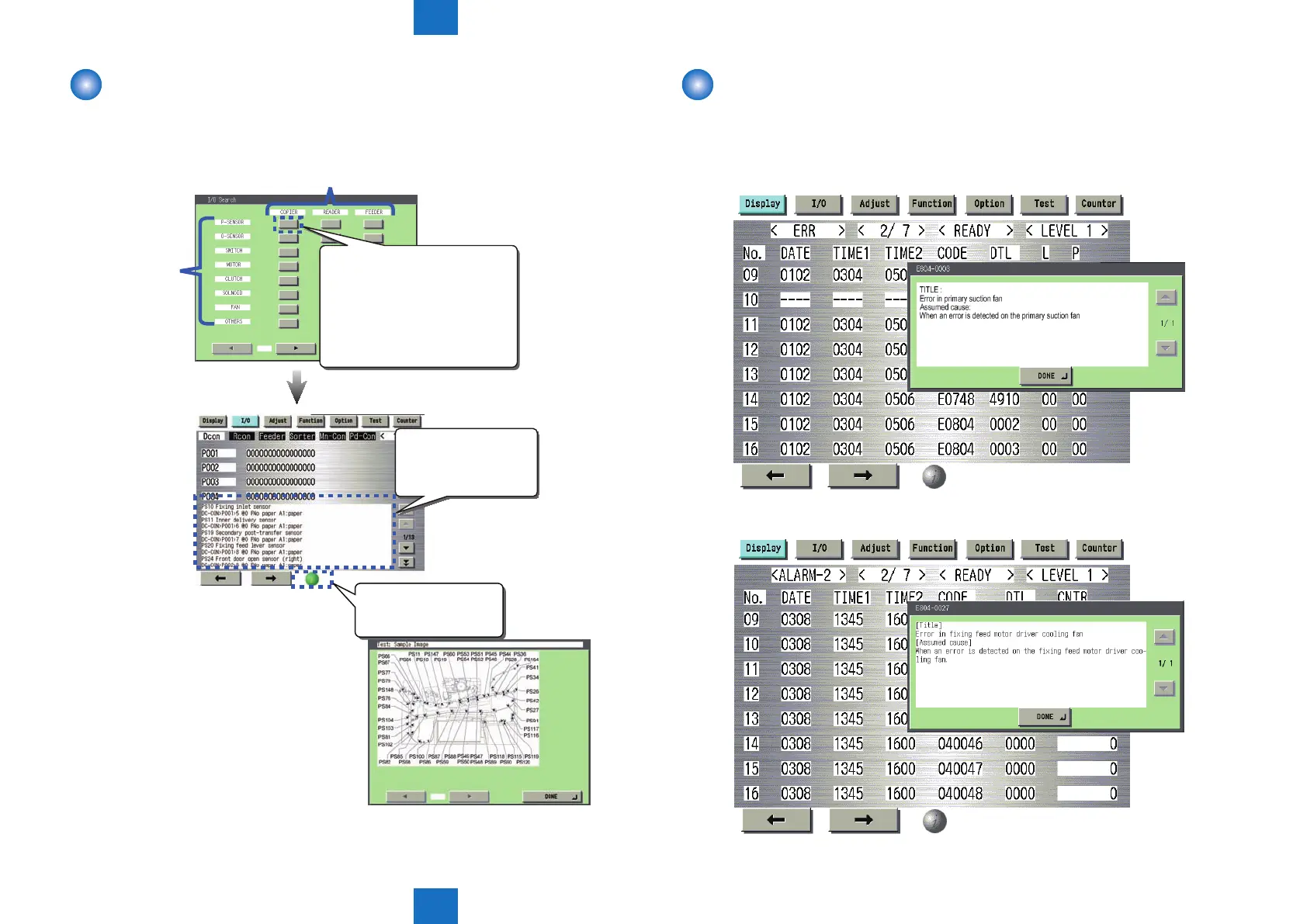

On the COPIER > I/O, the mode to conîš¿rm input output signal of electrical parts used (sensor,
motor, fan, etc), makes it easier to look for the intended electrical part.
And the screen will also display the input output signal.
1) Press the button.
Which button to press, will depend on which
electrical parts intended and its device
classification. For instance, if the host
machine uses paper pass detection sensor,
then press the button on the "COPIER" and
"P-Sensor" position.
Device classification
Electrical parts
classification
2) Then the selected electrical
parts classification's mark,
name, port number and 0/1
content will appear.
3) If the "i" button is pressed,
the screen displaying the
electrical parts array will appear.
F-8-4
Display of Error Code/Alarm Code description
The detail description of each code can be viewed on the error code and alarm code
occurrence record screen.
ERROR CODE : COPIER > DISPLAY >ERR
ALARM CODE : COPIER > DISPLAY >ERR
F-8-5
F-8-6
To Next Page
