Parts Replacement and Cleaning > PCB > Removing Potential Sensor PCB

Removing Potential Sensor PCB

1) Open the Front Left Cover and the Front Right

Cover.

(Refer to page 4-54)

2) Remove Process Unit Cover.

(Refer to page 4-71)

3) Pullout Process Unit.

(Refer to page 4-72)

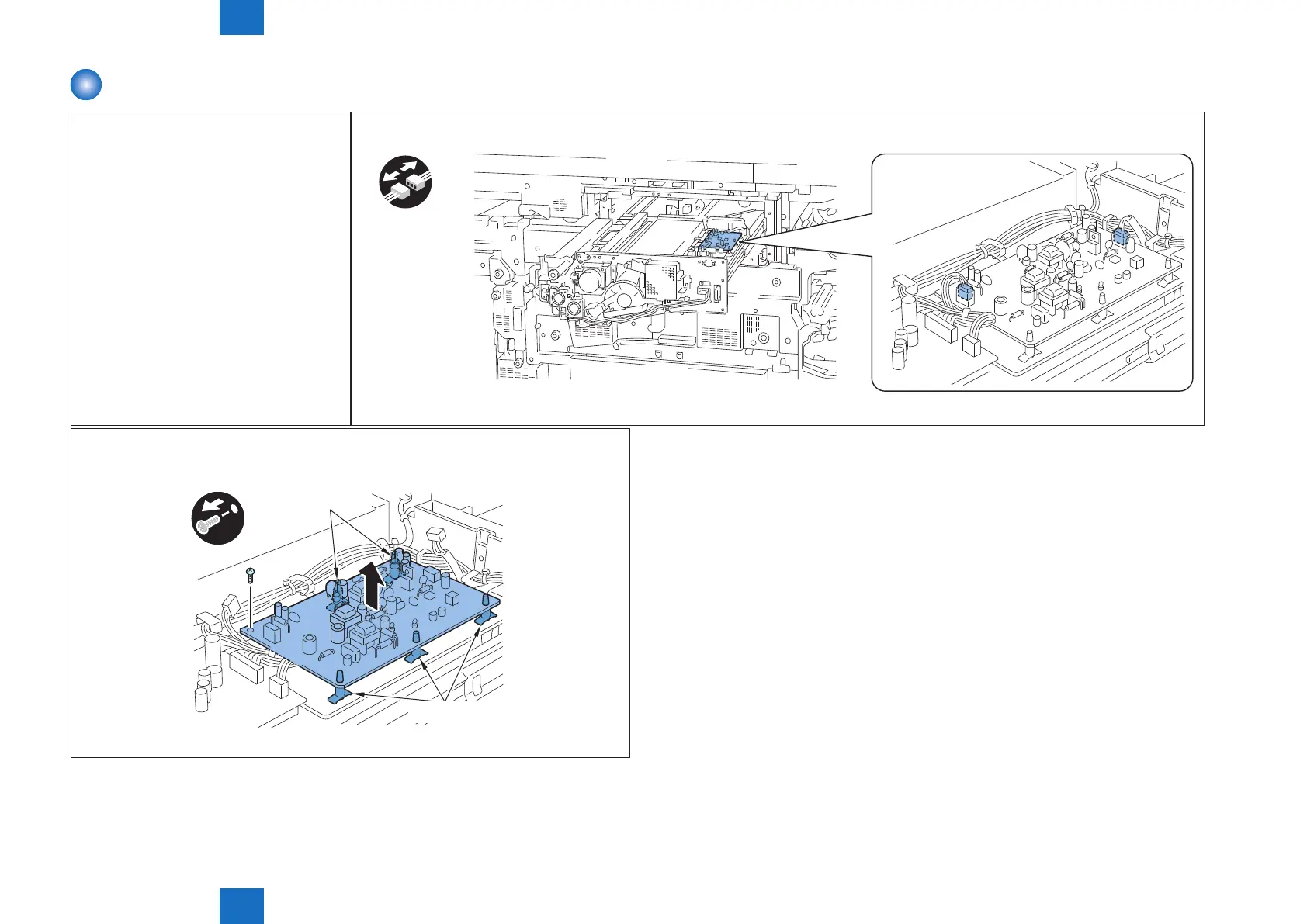

1) Remove the 2 connectors.

F-4-874

2) Remove the potential sensor PCB.

• 1 screw

• 5 PCB supports

PCB support

F-4-875
