Parts Replacement and Cleaning > Periodic Replacing Parts, Durable Parts, Cleaning Parts > Removing External Heat Roller Upper/Lower Thermo Switch
Parts Replacement and Cleaning > Periodic Replacing Parts, Durable Parts, Cleaning Parts > Removing External Heat Roller Upper/Lower Thermo Switch

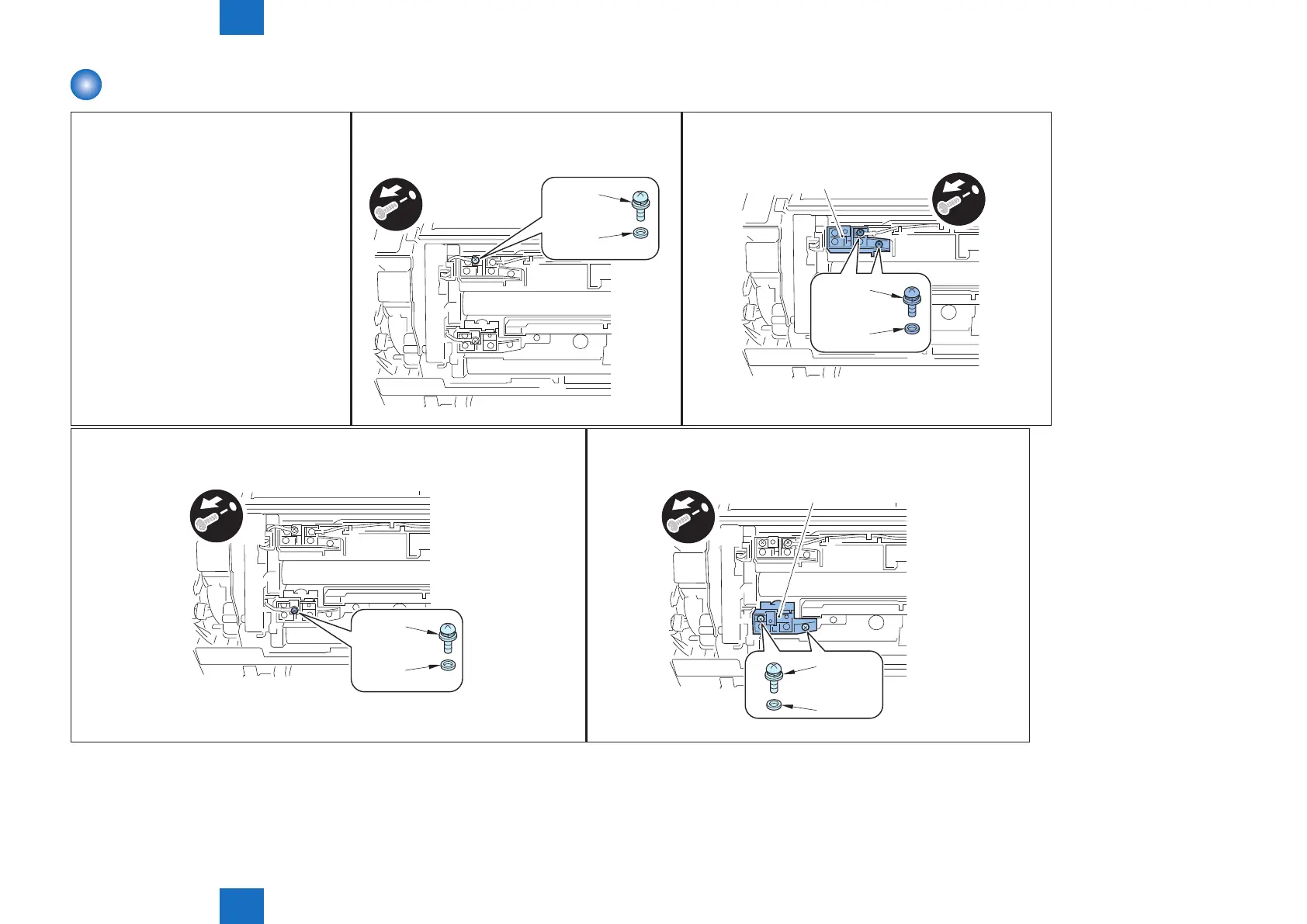

Removing External Heat Roller Upper/Lower Thermo Switch
<Preparation>
1) Open the Front Left Cover and the Front Right
Cover.
(Refer to page 4-54)
2) Pull Out Fixing Feed Unit.
(Refer to page 4-120)
3) Caution about the Disassembly of Fixing
Assembly.
(Refer to page 4-96)
4) Remove Fixing Pressure Unit.
(Refer to page 4-103)
5) Remove External Heat Roller Unit.
(Refer to page 4-294)
6) Caution about the thermistor/thermo switch.
(Refer to page 4-97)
1) Remove the external heat upper roller thermo switch.
• 1 screw
• 1 washer
Screw
Washer
F-4-691
2) Remove the external heat roller upper thermo switch.
• 2 screws
• 1 washer
External heat roller upper thermo switch
Washer
x2
Screw
F-4-692
3) Remove the following parts.
• 1 screw
• 1 washer
Screw
Washer
x1
F-4-693
4) Remove the external heat roller lower thermo switch.
• 2 screws
• 1 washer
External heat roller lower thermo switch
x2
Screw
Washer
F-4-694
