Technology > Controller System > Overview > Specication
Technology > Controller System > Overview > Specication
Controller System
Overview

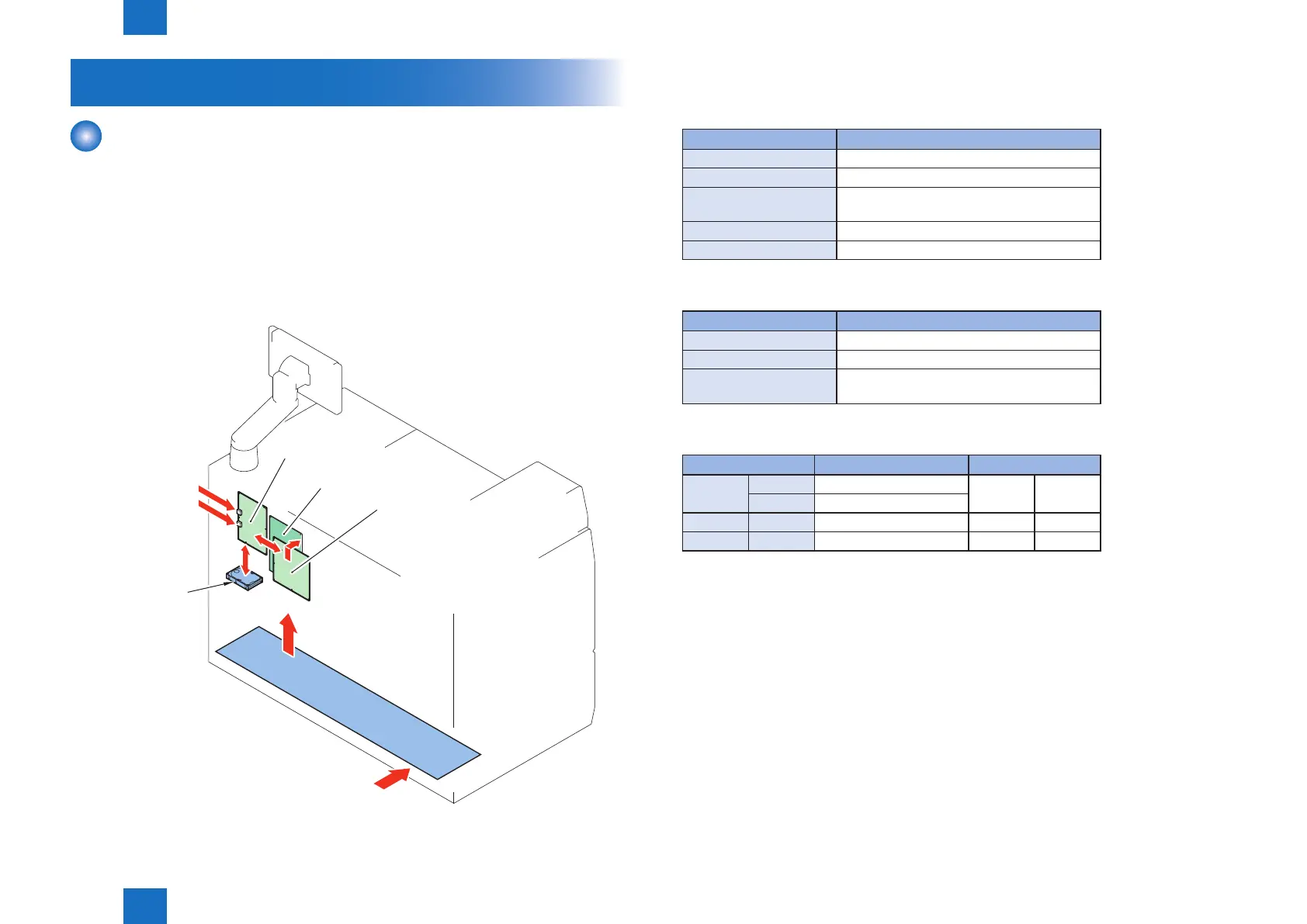

Controller system controls the various loads to convert the image data sent from the external
device etc. into the print data and to form the image based on the converted data.
Main controller PCB executes data processing. It converts the sent image data into the video
signals and sends them to DC controller. Main controller PCB has 2 layers. Main controller
PCB 1 controls the entire system and main controller PCB 2 executes the image processing.
DC controller controls the host machine and forms the image based on the video signals. The
power that drives the host machine is generated at the power unit.
External device
HDD
Main controller PCB1
Main controller PCB2
DC power supply
3V, 12V, 24V
AC power supply
Power
supply unit
DC controller PCB
F-2-6
■
Specication
●
Main controller PCB 1
Item Description
CPU 1.86 GHz
Image Memory (SD-RAM) Capacity: 512MB (standard), 1GB (maximum)
USB post standard USB2.0 host I/F
USB2.0 device I/F
Network port standard Ethernet I/F
Communication speed 1G bit/sec
●
Main controller PCB 2
Item Description
CPU 400MHz
Image memory (SD-RAM) Capacity: 512MB (standard), 1GB (maximum)
HDD Image data, storage for system software
Capacity: 80GB
●
Power Supply
Output All night/non-all night Power tolerance
24V type 24VA Non-all night 24.5V -/+ 5V
24VB Non-all night
12V type 12VA Non-all night 12.3 V -/+ 4%
3V type All-night 3.4 V -/+ 3%
T-2-1
T-2-2
T-2-3
