Parts Replacement and Cleaning > Periodic Replacing Parts, Durable Parts, Cleaning Parts > Cleaning Procedure of ITB back side
Parts Replacement and Cleaning > Periodic Replacing Parts, Durable Parts, Cleaning Parts > Cleaning Procedure of ITB back side
Cleaning Procedure of ITB back side
<Preparation>
1) Open the Front Left Cover and the Front Right Cover.
(Refer to page 4-54)
2) Remove Process Unit Cover.
(Refer to page 4-71)
3) Pull Out ITB Unit.
(Refer to page 4-83)
4) Remove ITB Cleaning Unit.
(Refer to page 4-227)
5) Remove Patch Sensor Unit.
(Refer to page 4-88)
6) Remove ITB.
(Refer to page 4-219)
Caution :
After removing the ITB, be sure to perform the
“operation after replacing the ITB”.
MEMO :
When the ITB is removed, if the back side of ITB is dirty,
make sure to clean it in the following procedure.
Caution :
• Do not scratch or fold the ITB.
• Be careful not to touch the surface of ITB (if required,
hold the surface within 10 mm from the edge of
belt.).

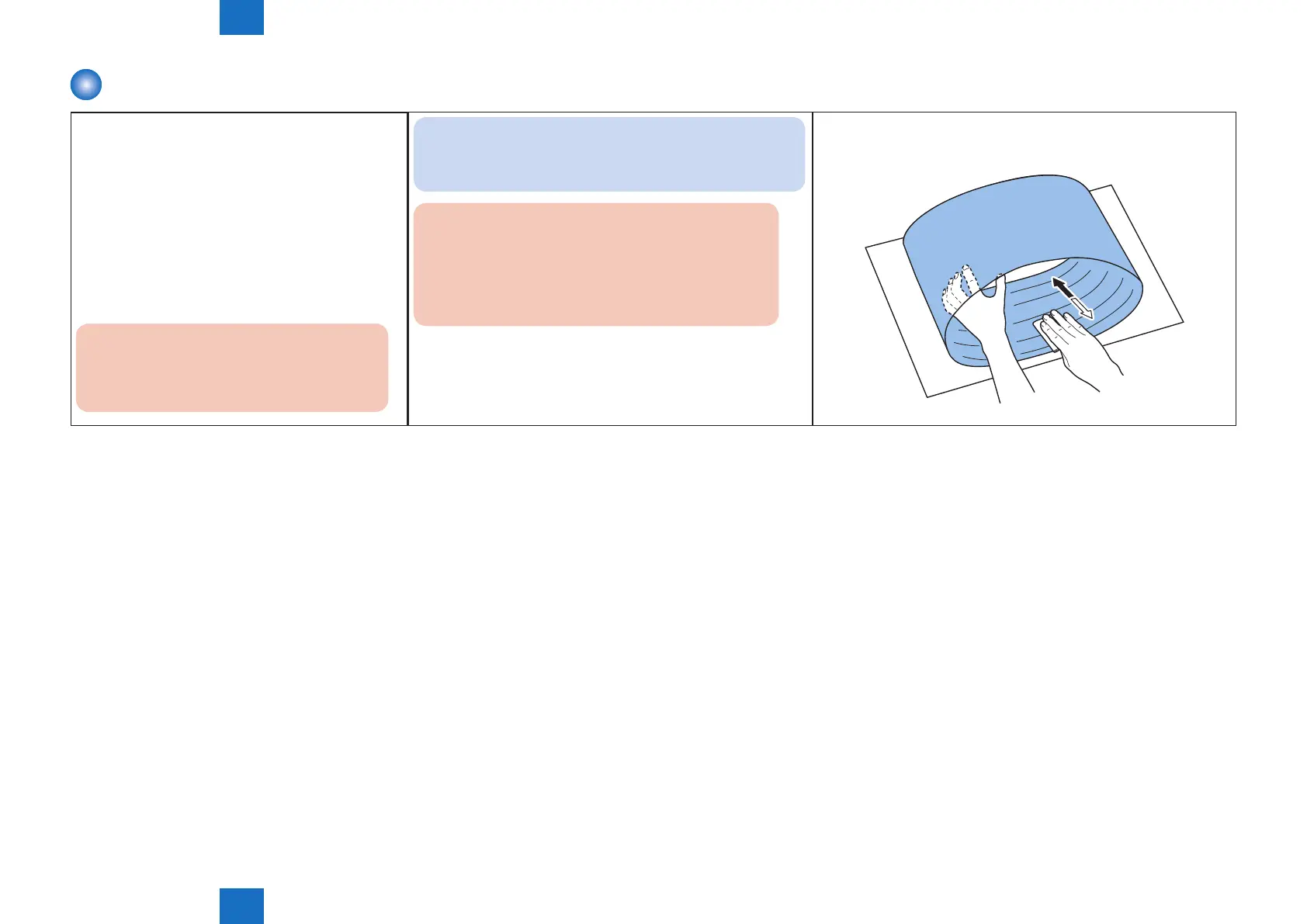

1) Place the removed ITB on the paper.
2) Clean the back side of ITB by evenly wiping all circumference in vertical
direction with the lint-free paper moistened with alcohol.
F-4-517
To Next Page
