Parts Replacement and Cleaning > PCB > Removing the Deck Driver PCB

Removing the Deck Driver PCB

1) Pull out Waste Toner Case Unit.

(Refer to page 4-56)

2) Pull out Paper Deck

(Refer to page 4-148)

3) Remove Paper Deck

(Refer to page 4-149)

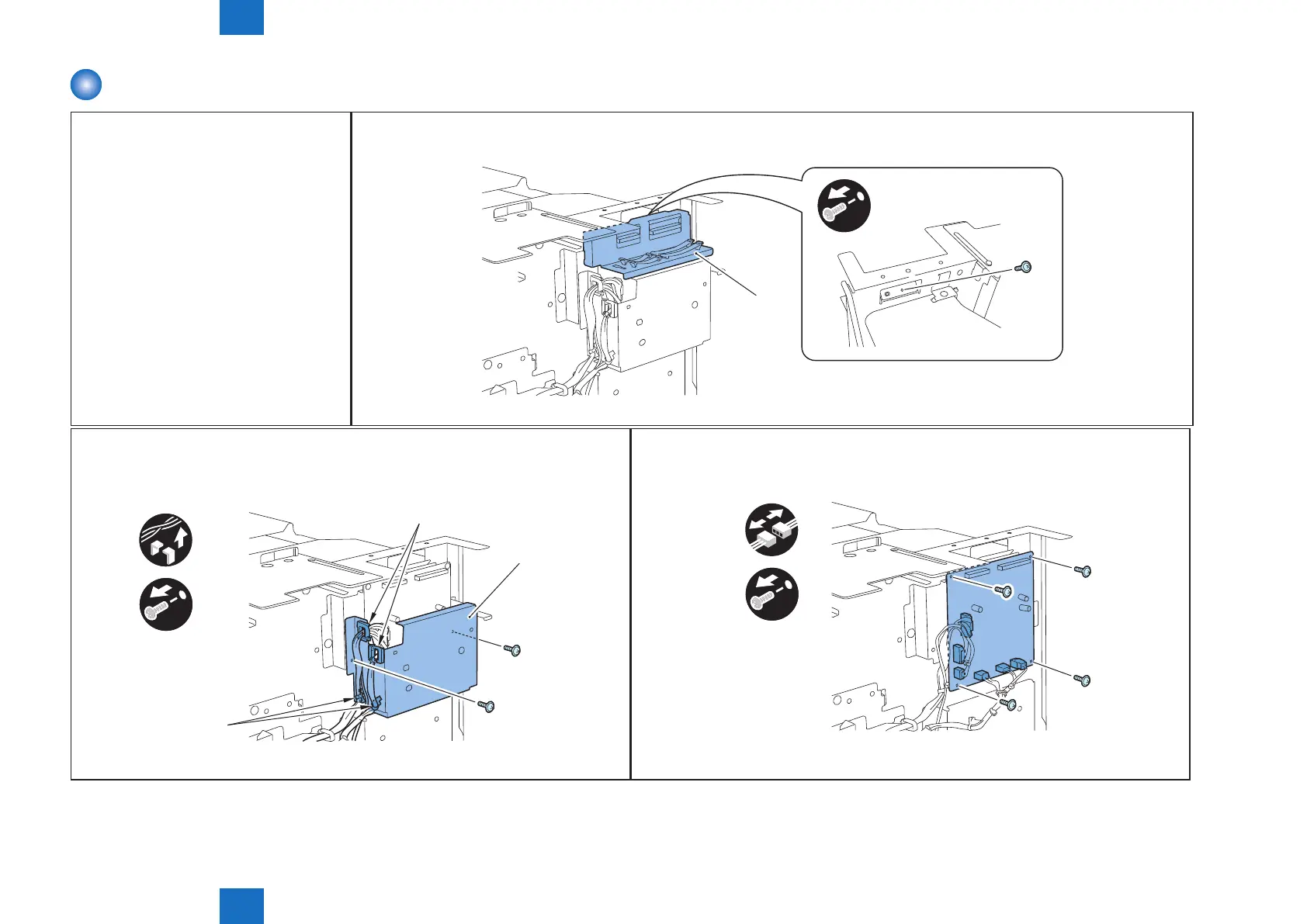

1) Remove the cover 1.

• 1 screw

Cover 1

F-4-879

2) Remove the cover 2.

• 2 edge saddles

• 2 reuse bands

• 2 screws

Edge saddle

Reuse band

Cover 2

F-4-880

3) Remove the deck driver PCB.

• 6 connectors

• screws

F-4-881
