Parts Replacement and Cleaning > PCB > Removing Developing High-Voltage PCB
Parts Replacement and Cleaning > PCB > Removing Developing High-Voltage PCB
Removing Developing High-Voltage PCB
<Preparation>
1) Remove Rear Right Cover.
(Refer to page 4-55)
1) Remove Ground wire.
• 1 screw
2) Disconnect all connectors on the PCB.
• 4 connectors
3) Remove Developing high-voltage PCB.
• 6 claws
x6
x4
claws
claws
Developing high-voltage PCB

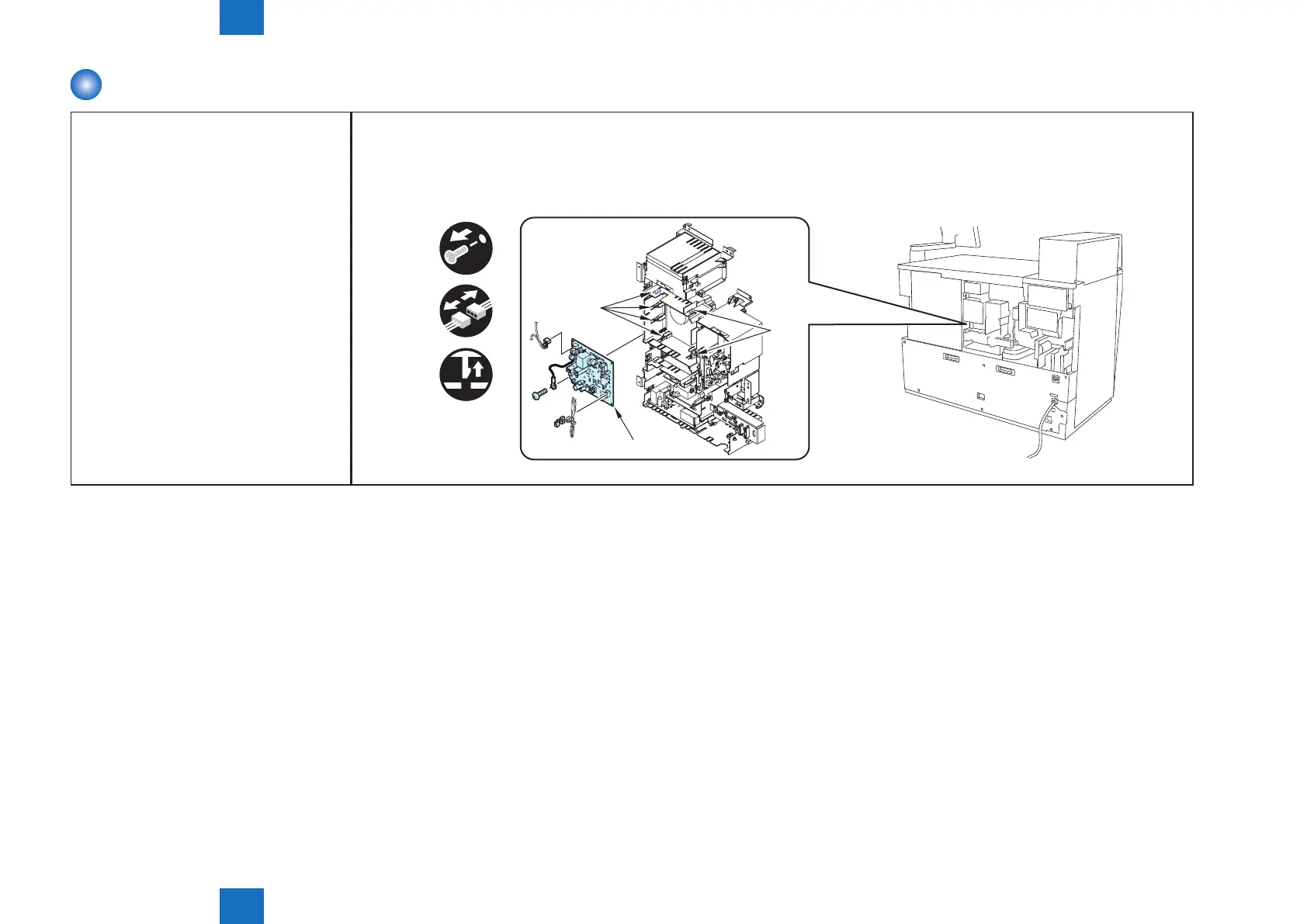

F-4-815
