Removing Leakage Breaker Unit
<Preparation>
1) Remove the Rear Right Cover.
(Refer to page 4-55)
2) Remove the Rear Left Cover.
(Refer to page 4-55)
3) Remove Rear Lower Cover.
(Refer to page 4-56)

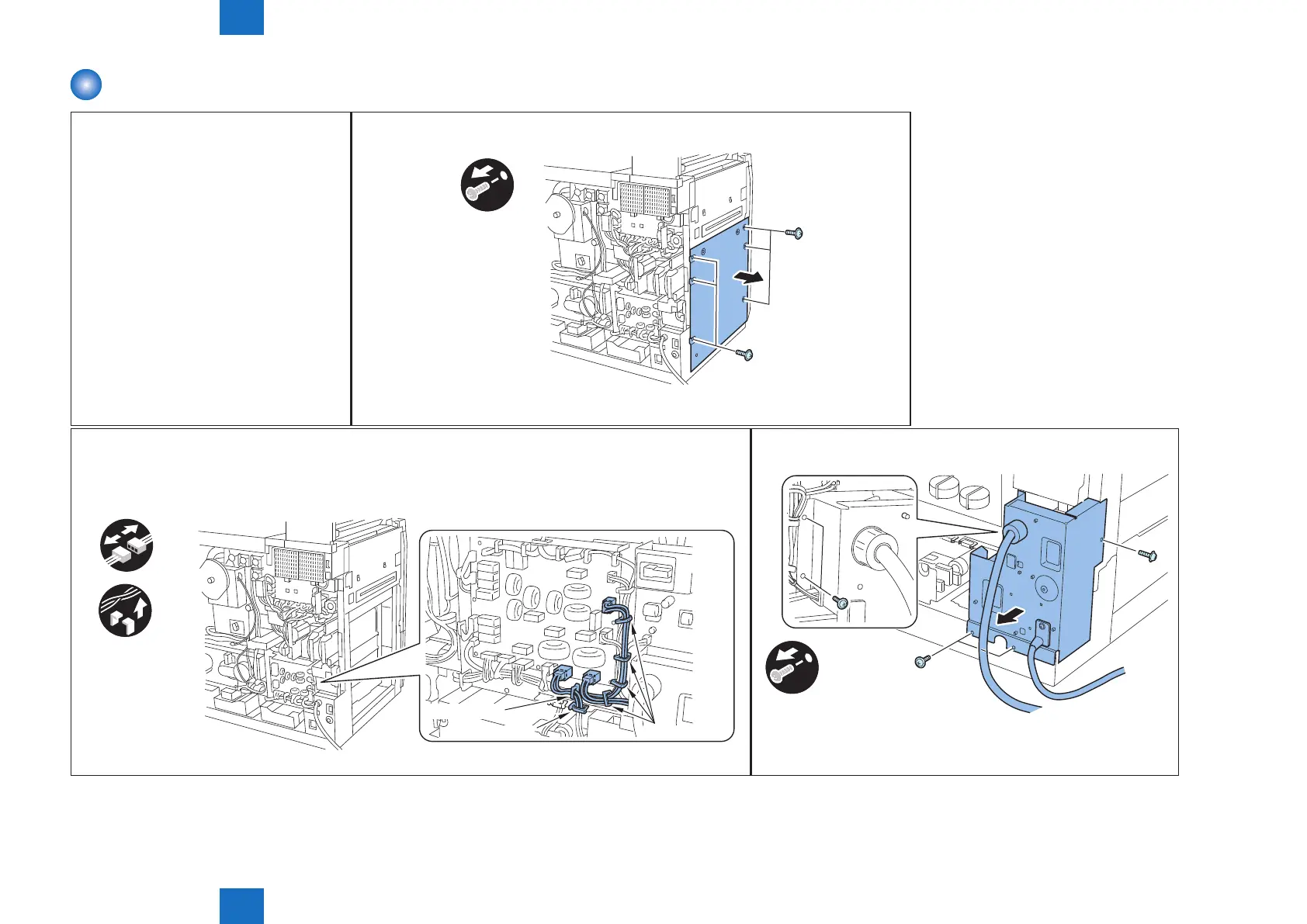

1) Remove the left lower cover.
• 6 screws
x6
F-4-853
2) Remove the harness.
• 3 connectors
• 5 wire saddles
• 1 edge saddle
x3
x6
Edge saddle Wire saddle
Wire saddle
F-4-854
3) Remove the leakage breaker unit.
• 5 screws
x5
F-4-855
