Canon imagePROGRAF IPF700 Service Manual

Chapter 4
4-6
b. Right side and left side covers

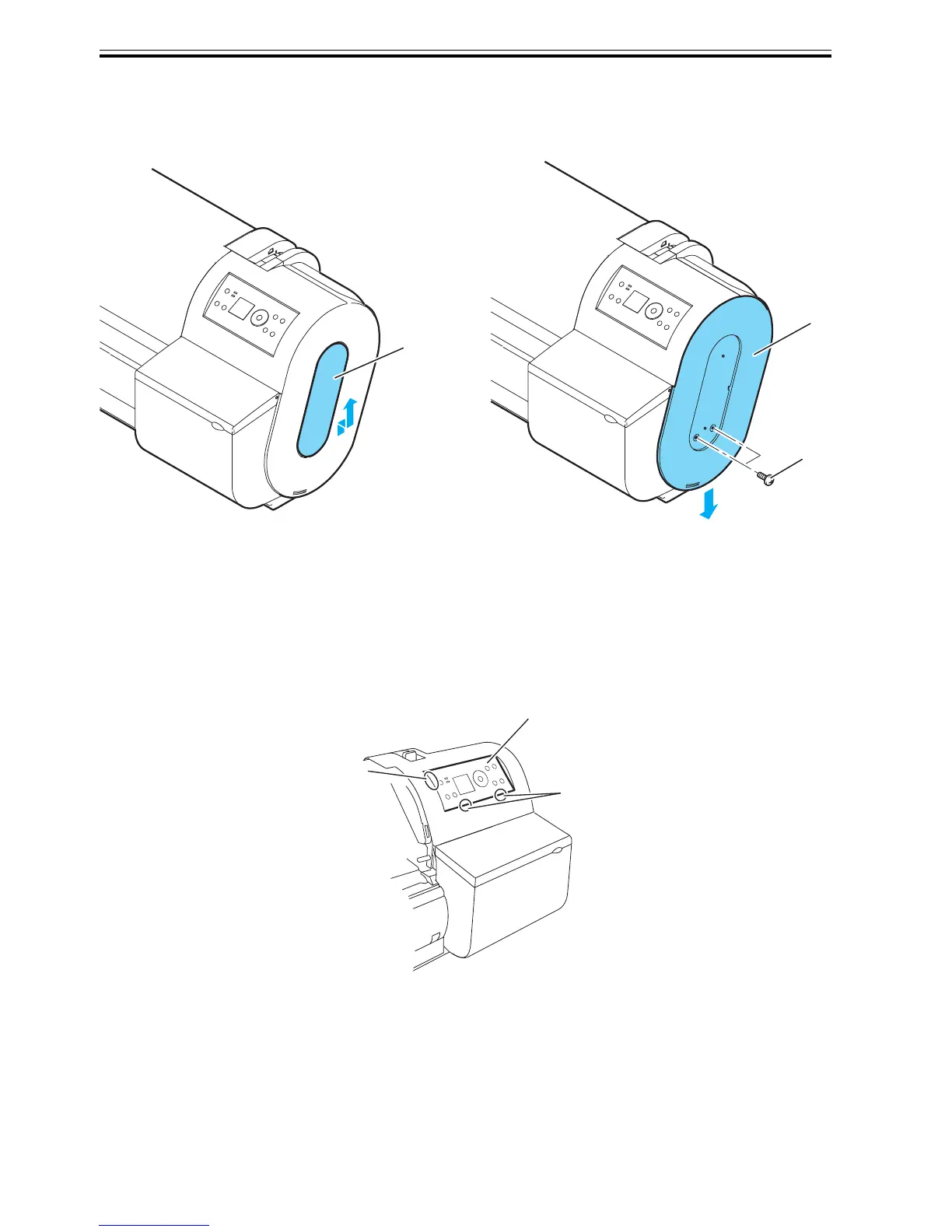

To detach a side cover, slide up side cover S [1] in the middle. Unscrew two screws[3] hidden under side
cover S [1] and slide downside cover [2] to detach the slide cover.
F-4-7
c. Operation panel
To remove the operation panel, first open the top cover, insert your hand into the inside of the right upper
cover from the left side and release two lower claws[2] securing operation panel [1] in position. Then, push
out operation panel [1] to front to release it from upper three hooks. Then, remove the two connectors[3] from
the back of operation panel [1] to which harnesses are attached.
F-4-8
[1]
[2
]
[3]
[1]
[2]
[3]

Canon imagePROGRAF IPF700 Specifications

General

Maximum Print Resolution	2400 x 1200 dpi
Ink Type	Pigment-based
Number of Ink Colors	5
Ink Colors	Cyan, Magenta, Yellow, Black, Matte Black
Connectivity	USB 2.0, Ethernet
Hard Drive	No
Operating Systems	Windows, Mac OS
Print Technology	Thermal Inkjet
Media Thickness	Up to 0.8 mm
Number of Nozzles	15, 360
Weight	103 lbs
