3

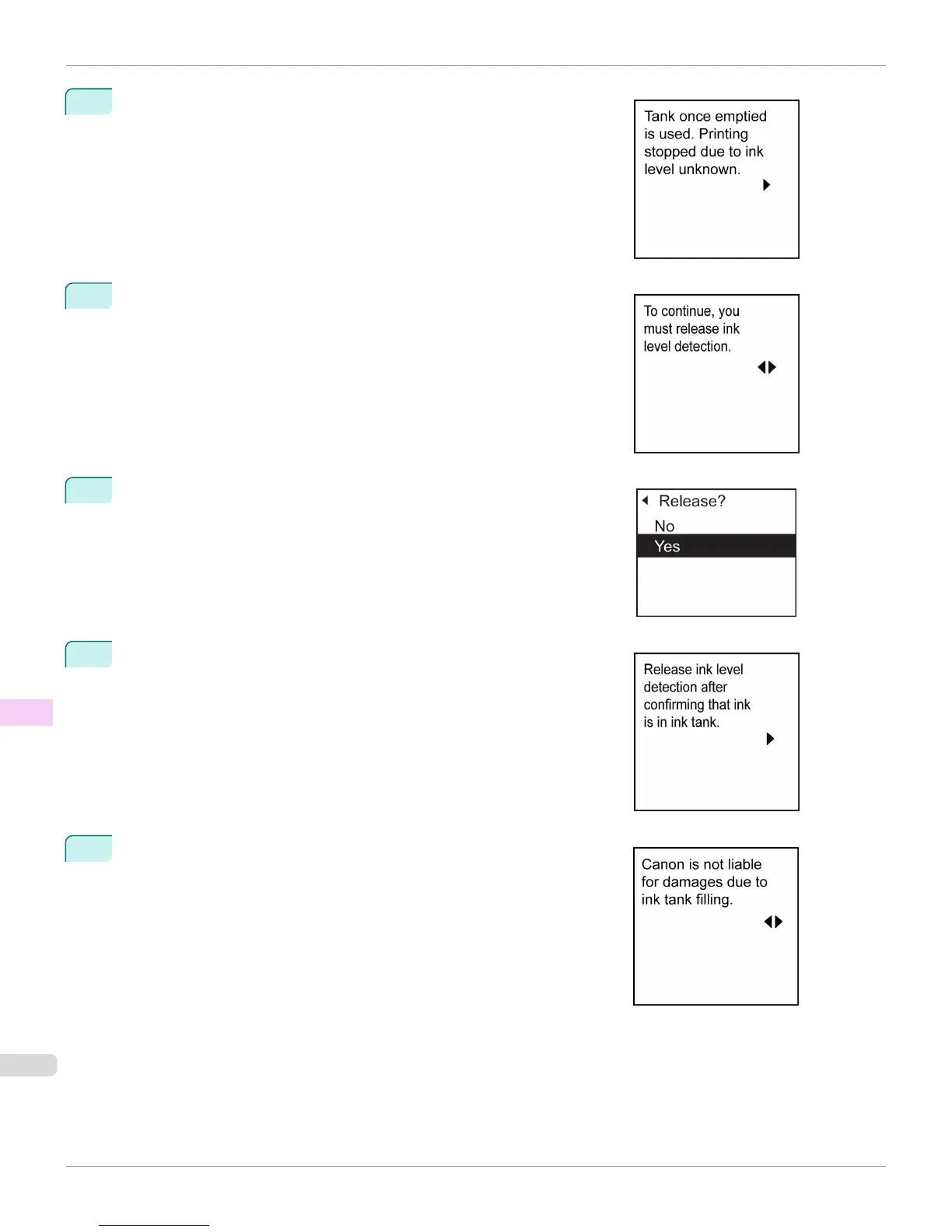

A confirmation message is shown on the Display Screen about releasing
ink level detection. After checking the message, press the
â–¶
button.
4
After checking the message, press the
â–¶
button.
5
Press
â–²
or
â–¼
to select
Yes
, and then press the
OK
button.
6
Check the message and press the
â–¶
button.
7
Check the message and press the
â–¶
button.
Ink Level Detection
iPF8400
User's Guide
Troubleshooting
Other problems
986
985
987
