Replacing the Toner Cartridge

5-11

Routine Maintenance

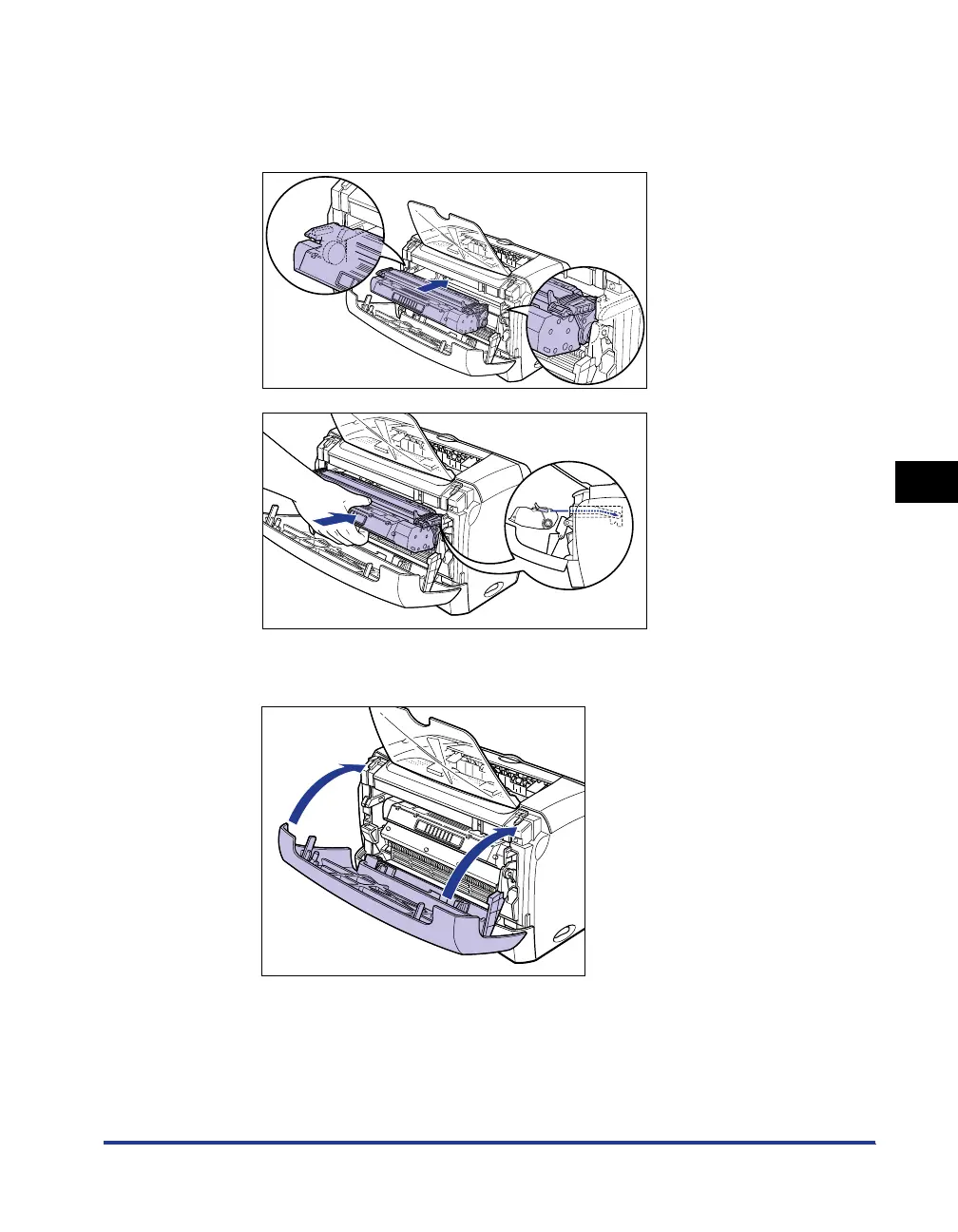

While aligning the projection on each side of the toner

cartridge with the toner cartridge guide, push the toner

cartridge completely.

Close the front cover.
