Launching the Triple Tray Acquisition

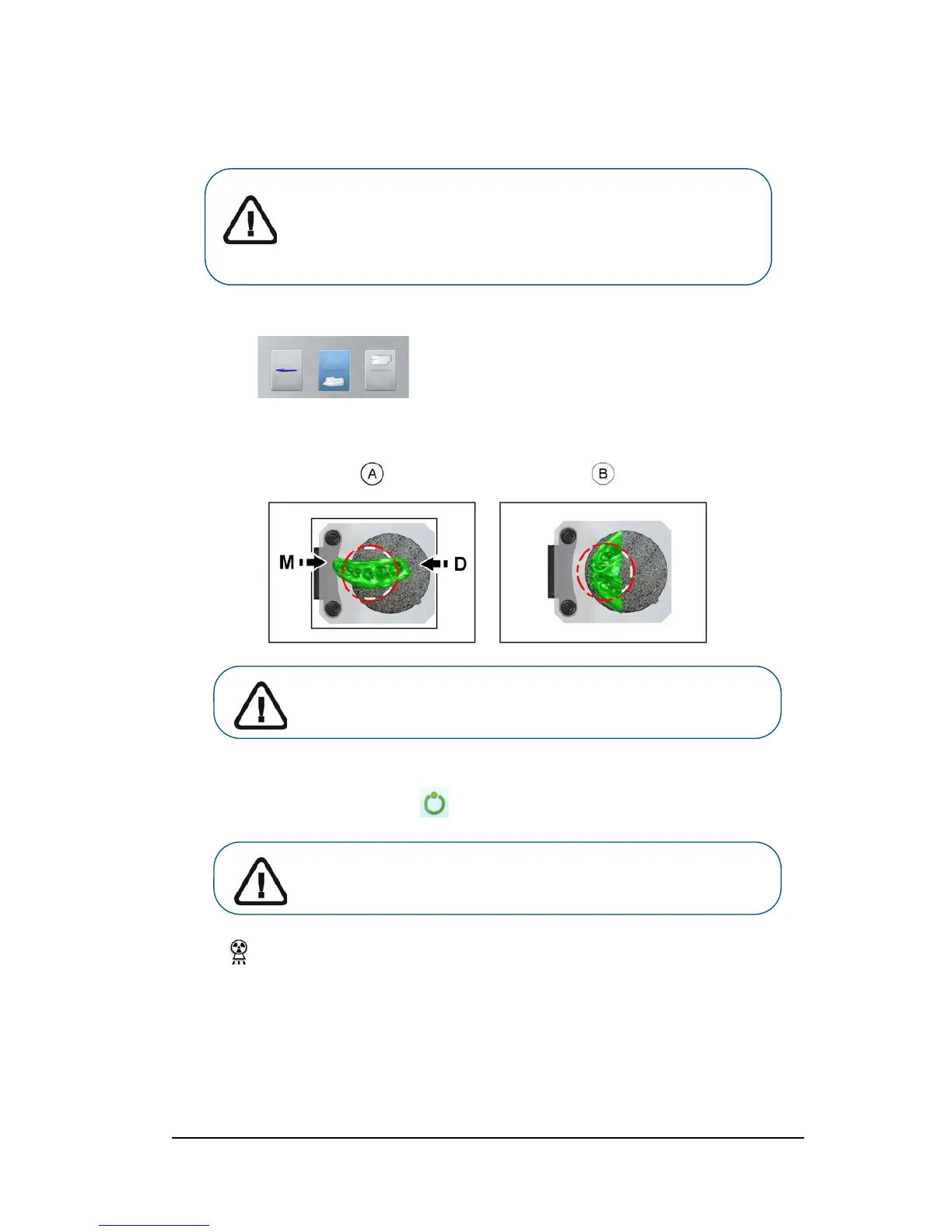

To launch the triple tray impression acquisition, follow these steps:
1. Select the triple tray impression acquisition mode.
2. Follow the on-screen animated instruction on how to correctly position the triple tray impression at
the center of the black foam.
3. Leave the X-ray room and close the door.
4. On the Acquisition interface, when is green, press and hold the exposure button of the X-ray
remote control until the end of acquisition.
The indicator in the acquisition interface turns yellow and a warning sound is emitted to
indicate that X-ray emission is in progress.
The acquired image appears in the Preview Screen.
5. Once the triple tray impression has been scanned, the Acquisition interface closes. Wait for the
3D object reconstruction.
The completely reconstructed object will display in the image browser.
Important:
• Make sure that the triple tray impression is dry.
• The triple tray impression must be level when you position
it on the black foam. If it is not level, use a scalpel to cut
and level it.
Important: You must place the triple tray impression on the black
foam in the same orientation as when you take it out of the patient
mouth.
Important: If you have a problem that requires you to stop the
acquisition, release the exposure button of the remote control or
press the red emergency stop button.
