Acquiring Images of CS Model Plaster Objects
Before acquiring an image of the object, do the following:
• On your desktop, double-click to open the CS Imaging Software.
• Select the patient record.
• Access the imaging window.
• Click then to access the Acquisition interface.
Preparing the Unit and Setting the Acquisition Options
To prepare the unit for acquisition, follow these steps:

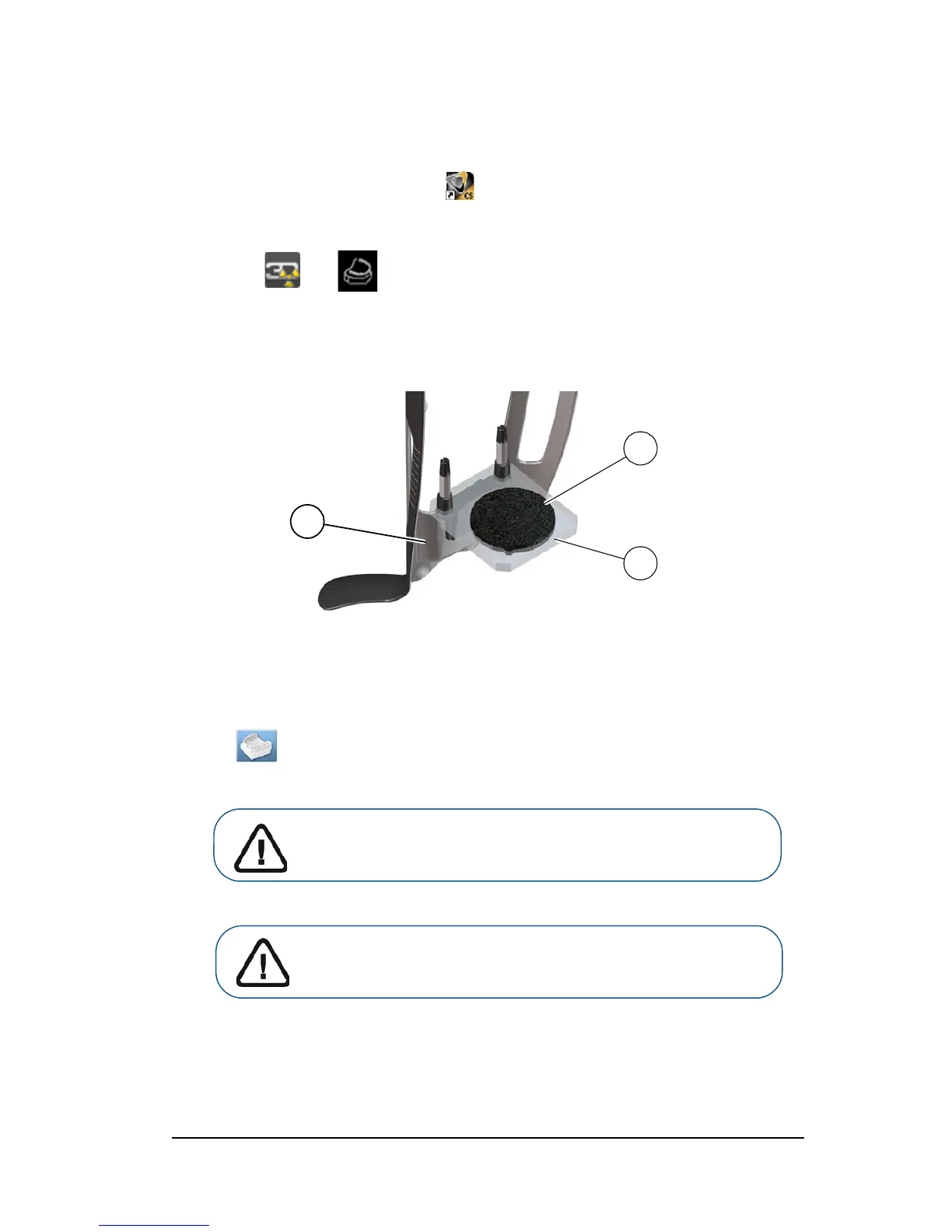

1. Insert the 3D bite block support (A) into the chin rest base.
2. Place the dental impression holder (B) on the 3D bite block support (A).
3. Place the black foam (C) on the dental impression holder (B).
4. Click the Program button to access the Program pane.
5. Click to access the plaster acquisition mode interface.
6. Select the acquisition that you require. See “Launching the Plaster Acquisition.” .
C
A
B
Important: The animated display screen will guide you on how to
position the acquisition material that you have selected.
WARNING: Make sure that you position the acquisition material
correctly to obtain quality data.
