80 Chapter 7 3D Object Acquisition
Acquiring Images of the Radiological Guide Alone
Before acquiring the images, do the following:
• On your desktop, double-click to open the CS Imaging Software.
• Select the patient record.
• Access the imaging window.
• Click then to access the 3D Acquisition interface.
Preparing the Unit and Setting the Acquisition Options
To prepare the unit for acquisition, follow these steps:

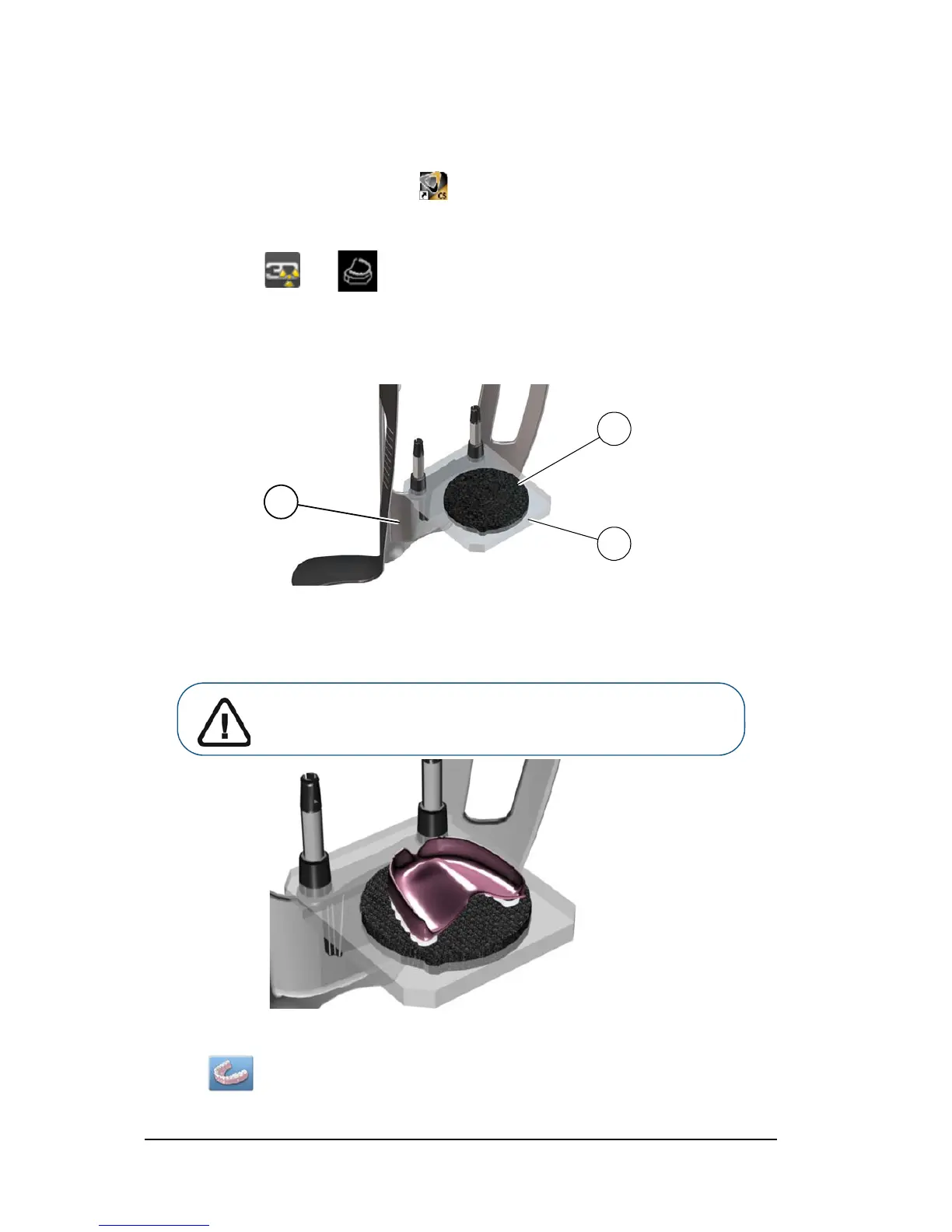

1. Insert the 3D bite block support (A) in the chin rest base.
2. Place the dental impression holder (B) onto the 3D bite block support (A).
3. Place the black foam (C) on the dental impression holder (B).
4. Place the Radiological Guide on the black foam.
5. Click the Program button to access the Program pane.
6. Click to access the Radiological Guide acquisition mode interface.
C
A
B
Important: You must place the Radiological Guide on the black foam
in the same orientation as when you take it out of the patient mouth.
