Paragraph 113
CASE/iNTERNATiONAL
distance wiU be approximately 4.410 inches (112.01
mm).
Stand pinion shaft on a flat surface. See Fig.
125.
Measure distance from pinion face to the bear-
ing housing mounting face. This is distance (C—Fig.
122).
Add distance (C) to the marked figure on pin-
ion face (distance B) and subtract from the resulting
(distance
A).
The final figure is the correct thickness
of shims (5—Fig. 121) to be instaUed for correct pin-
ion mainshaft position.
The balance of reassembly is the reverse of disas-
sembly procedures.
113.
MODELS 585-685-885 (TWO-WHEEL DRIVE)
AND ALL MODELS (FOUR-WHEEL DRIVE). Ib re-
move the bevel pinion mainshaft (2--Fig. 126), re-
move snap ring (14) from groove in pinion shaft. Un-
bolt retaining plates (6) and move bevel pinion shaft
rearward. Remove Hi sUding collar (16), Lo-Reverse
gear (15), snap ring (14) and four-wheel drive gear
(13),
if
so
equipped. Remove pinion mainshaft assem-
bly and shims (10) from transmission case. Measure
and note thickness of shims
(10)
if the same bevel pin-
ion mainshaft is to be reinstaUed. Using a dial indi-
cator, measure end play of bearing housing (8) on
bearings (7 and 9). If end play is more than 0.003 inch
(0.076 mm), renew the bearings as follows: Remove
snap ring
(12)
and spacer
(11),
then press bearings and
housing from bevel piruon mainshaft. Press new bear-

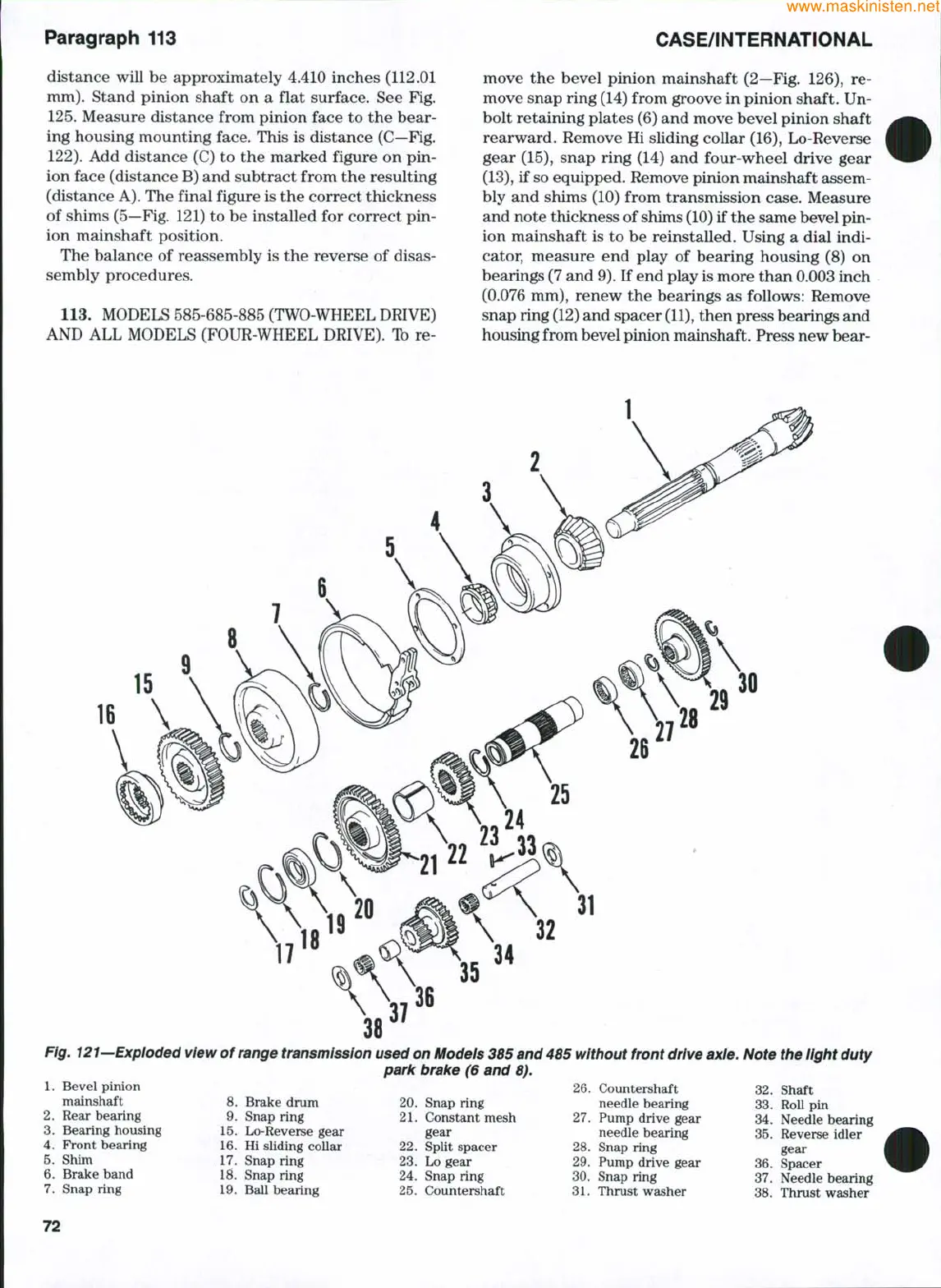

1—Expioded view of range transmission used on Models 385 and 485 without front drive axle. Note the iight duty
1.
Bevel pinion
mainshaft 8.
2.
Rear bearing 9.
3.
Bearing housing 15.
4.
Front bearing 16.
5.
Shim 17.
6. Brake band 18.
7.
Snap ring 19.
Brake drum
Snap ring
Lo-Reverse gear
Hi sliding collar
Snap ring
Snap ring
Ball bearing
park brake (6 and 8).
20.
Snap ring
21.
Constant mesh
gear
22.
Split spacer
23.
Lo gear
24.
Snap ring
25.
Countershaft
26.
Countershaft
needle bearing
27.
Pump drive gear
needle bearing
28.
Snap ring
29.
Pump drive gear
30.
Snap ring
31.
Thrust washer
32.
Shaft
33.
Roll pin
34.
Needle bearing
35.
Reverse idler
gear
36.
Spacer
37.
Needle bearing
38.
Thrust washer
72
