18 SECTION 25 - FRONT AXLES

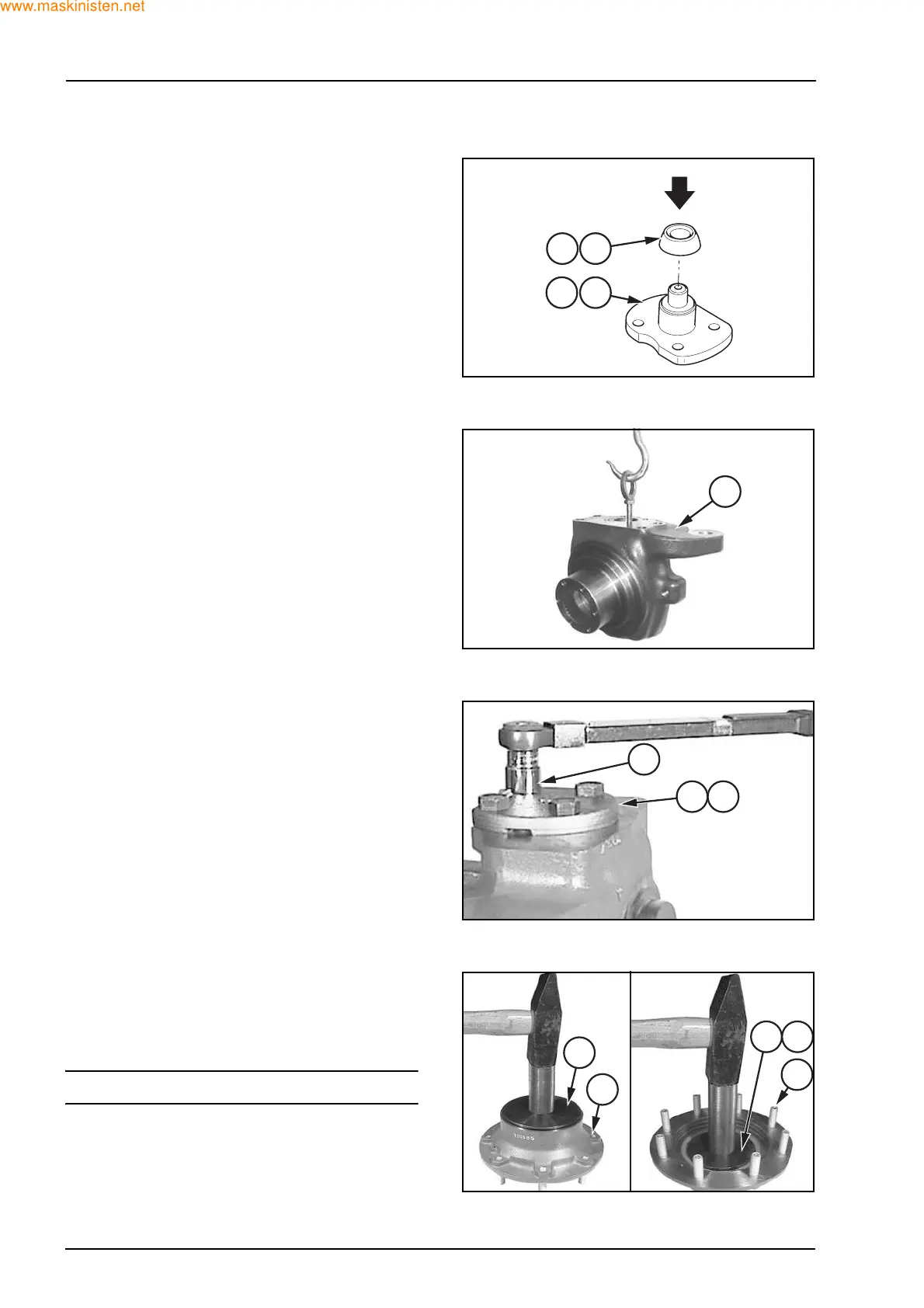

If ball joints (21) and (22) have been previously re-
moved, reassemble them on the upper (11) and low-
er king pin (13).
Secure the swivel housing (10) with a belt or a rope
to a hoist or to any other supporting device.
Protect the splined end of the axle shaft by winding
it with an adhesive tape to avoid damage to the seal
ring.
Assemble the swivel housing (10) on the axle shaft.
Assemble the king pins, the lower (13) and the up-
per (11), and tighten the retaining screws (12) to the
requested torque.
Assemble both bearing cups (5) and (8) to their
wheel hub (7) housings using the special tool
380002663 under a press or with a hammer.
Insert the seal ring (9) into the wheel hub (7) with the
special tool 380002227 and a hammer.
NOTE: do not lubricate the seal ring (9).
F27374
1113
2122
F27371
10
F27375
11
12
13
F27376
9
7
5
7
8
