SECTION 27 - REAR AXLE 43

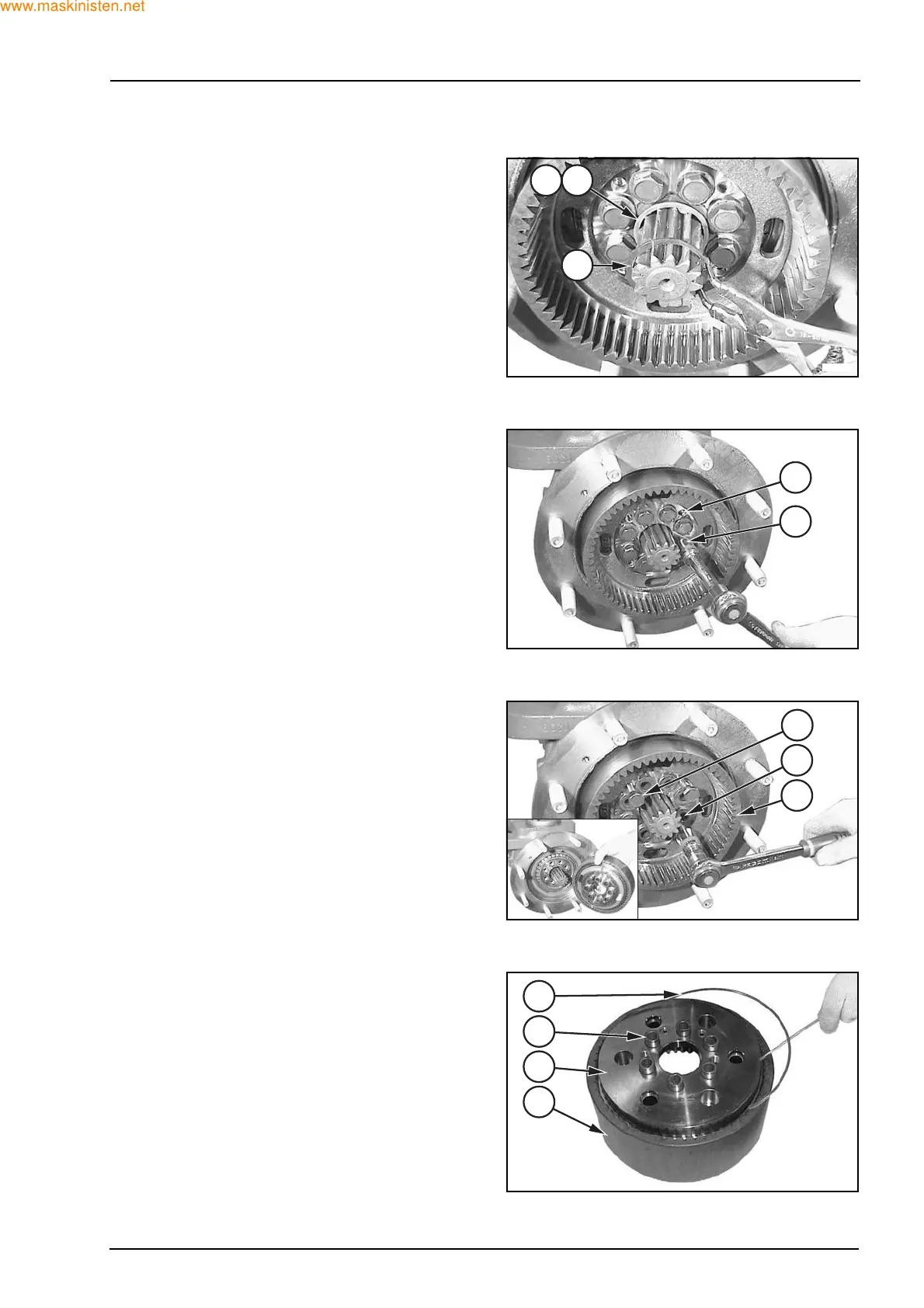

Remove the snap ring (1) from the cardan shaft.
Collect the washers (2) and (3) of the cardan shaft.
Unscrew and remove the fastening screws (5) from
the ring gear carrier (7).
To extract the ring gear carrier, screw in two of the
just removed screws (5) into the threaded holes.
Remove the ring gear carrier (7) with the ring gear
(4).
Remove the retaining ring (8) and separate the ring
gear carrier (7) from the ring gear (4).
Only if necessary, remove the bushes (6) from the
ring gear carrier using a hammer and the special
tool 380002667.
F27250
1
23
F27251
7
5
F27253
7
4
5
F27252
6
8
7
4
