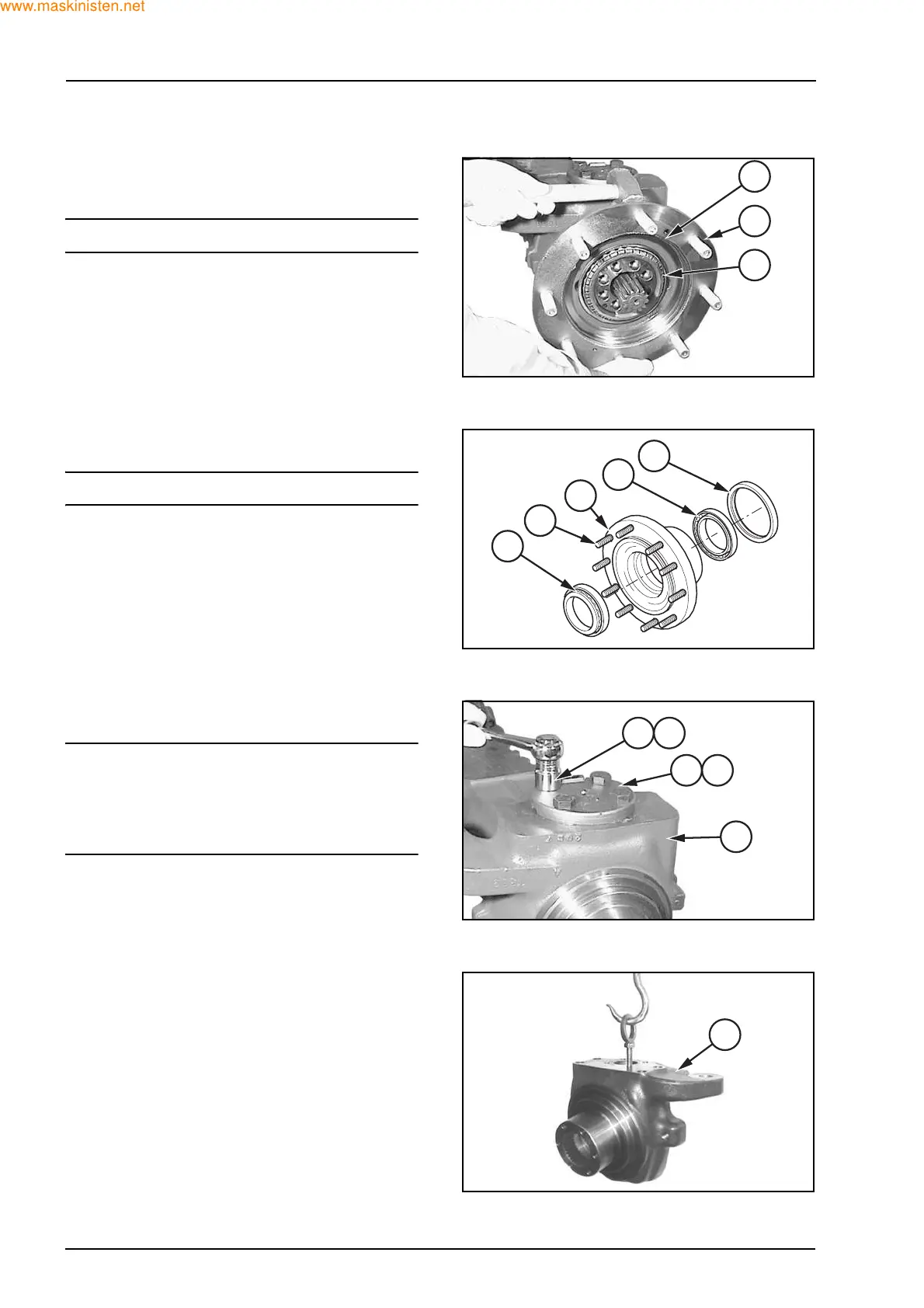

44 SECTION 27 - REAR AXLE
Remove the O-ring (15).
Remove the wheel hub (11) using levers and a ham-
mer to facilitate the operation.
NOTE: collect the bearing cone (9).
Position the wheel hub (11) on a flat surface and re-
move the seal ring (13) with a lever.
NOTE: destructive operation for the seal ring (13).
Remove the bearing cups (9) and (12) using a ham-
mer and a suitable drift.
Remove the bearing cone (12) from the swivel hous-
ing end using a suitable extractor.
Unscrew and remove the fastening bolts (19) and
(17) from the upper (18) and lower (16) king pin.
SWARNING
Before removing the king pins (16) and (18), secure
the swivel housing (14) to a rope or a hoist or to any
other supporting device; observe all current safety
regulations to guarantee the operator’s safety.
Remove the king pins (16) and (18).
Extract the swivel housing (14) from the axle shaft
and the cardan shaft.
F27254
11
15
9
F27412
10
9
11
12
13
F27256
16
14
17
18
19
F27257
14
