54 SECTION 27 - REAR AXLE
Assembly

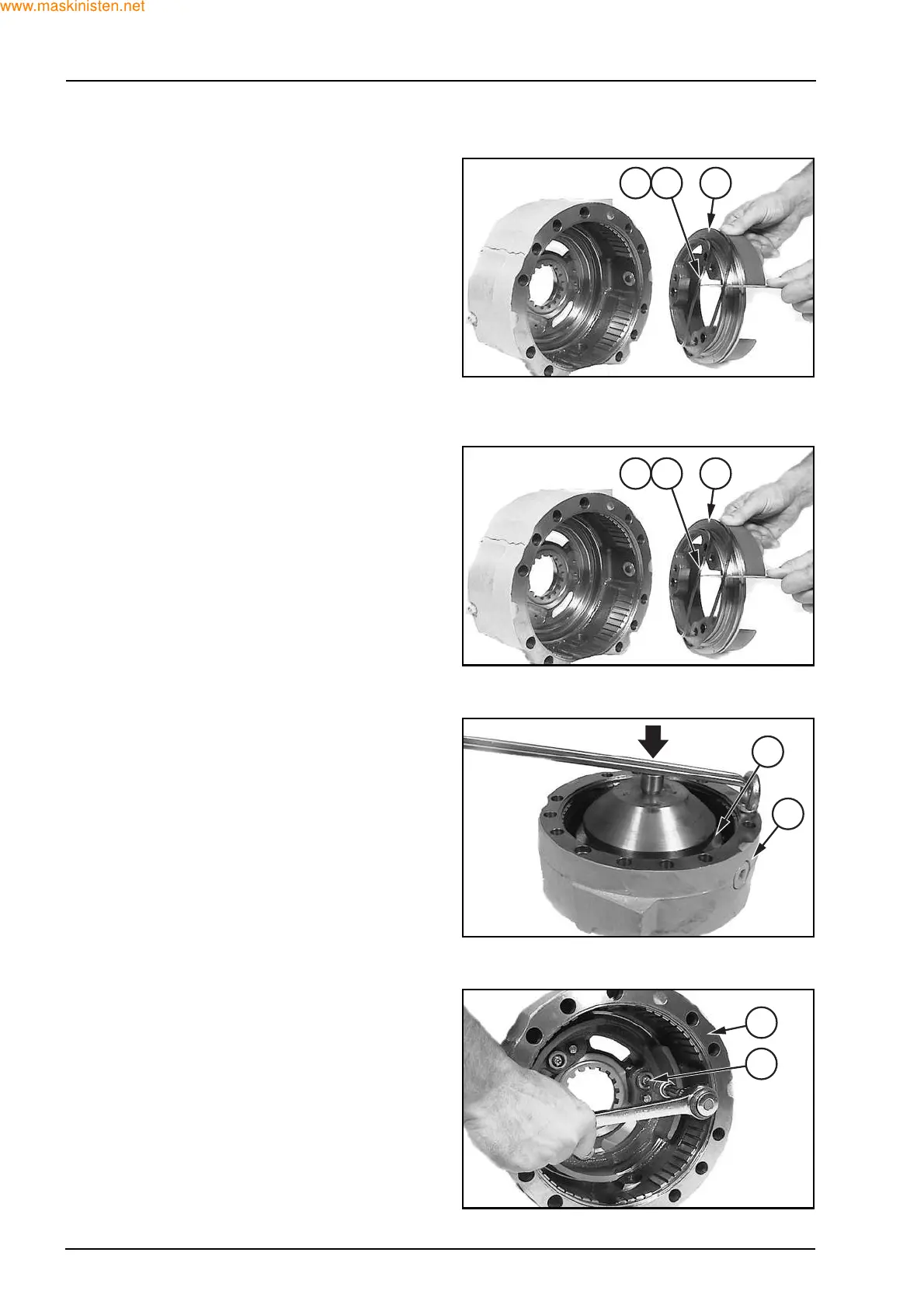

Take the piston out (14).
If necessary, blow in air through the brake bleeder
vent to eject the piston, using the minimum pres-
sure.
Remove the O-rings (16) and (17) from the piston
(14) and check their conditions.
Assemble the O-rings (16) and (17) on the piston
(14) and lubricate the fraying surface piston/flange
with a light layer of grease.
Install the piston (14) into the brake flange (7) and
then a support flat disk on the piston and with a lever
anchored to an eyescrew, exert a pressure just
enough to insert the piston (14) into the brake flange
(7).
Collect the self-adjust kits components and insert
them in the piston (14).
Insert the fastening screws (11) and tighten them to
the specified torque.
F28040
17 1416
F28040
17 1416
F28042
14
7
F28116
14
11
