74 SECTION 27 - REAR AXLE
Assembly

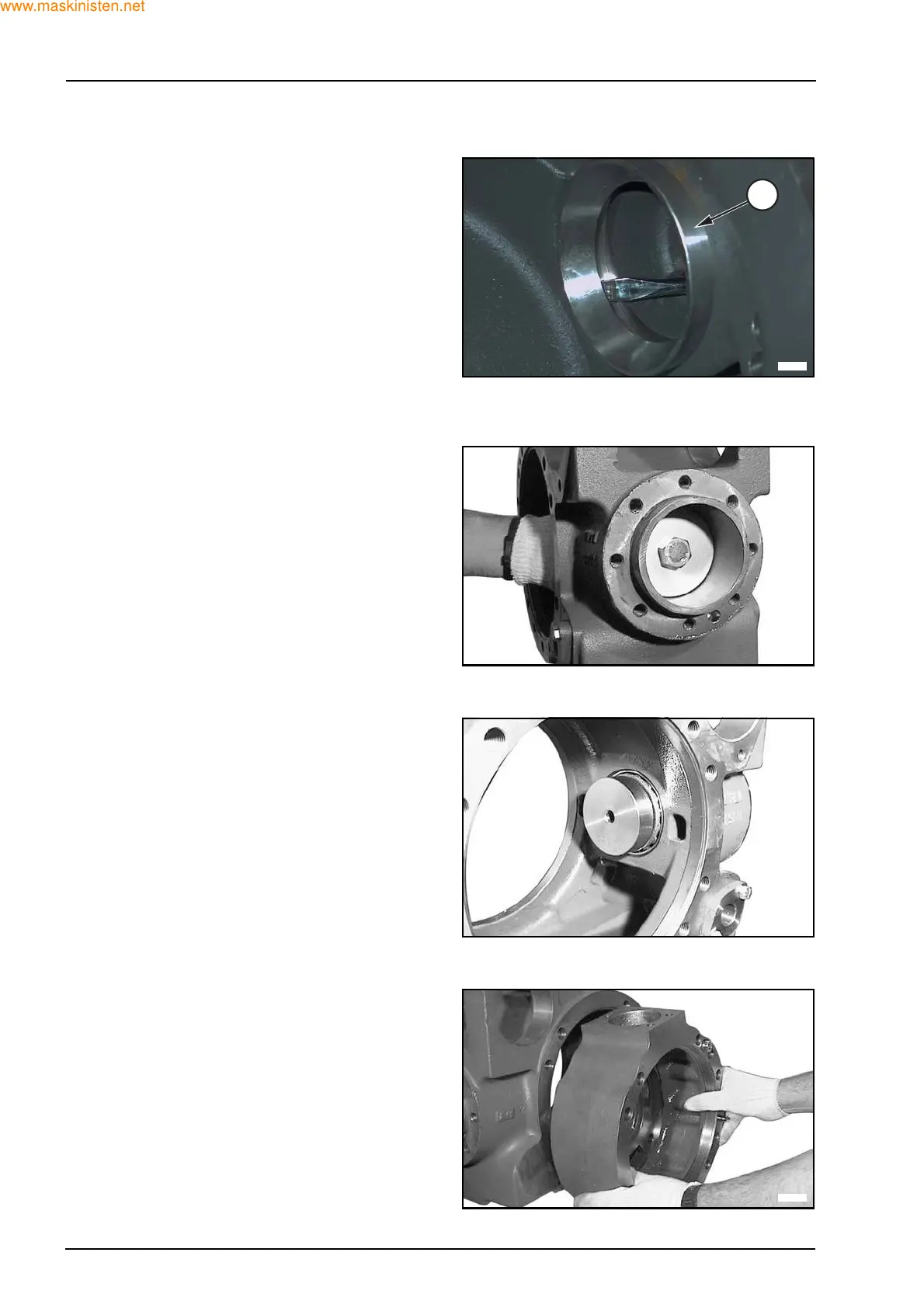

Remove the bearing cup (3) from the central body.
Position the central body on a workbench.
Force the cups of the bearings on their housings us-
ing the special tool 380002215 for outer bearing
race and for inner bearing race.
In order to measure the distance, the kit composed
of the special tools, respectively called “false pinion”
380002673 and “false differential box” 380002674,
is used.
Insert the false pinion, together with its bearings and
its ring nut, in the just mounted housings for the
bearings.
Tighten without exceeding, till the backlash is elimi-
nated.
Check the correct positioning of the right and left
flanges, using the reference marks on them and on
the central body.
Assemble the two brake flanges and fix them with
their screws (screw in at least two ones diametrical-
ly-opposed for each flange).
