SECTION 27 - REAR AXLE 75

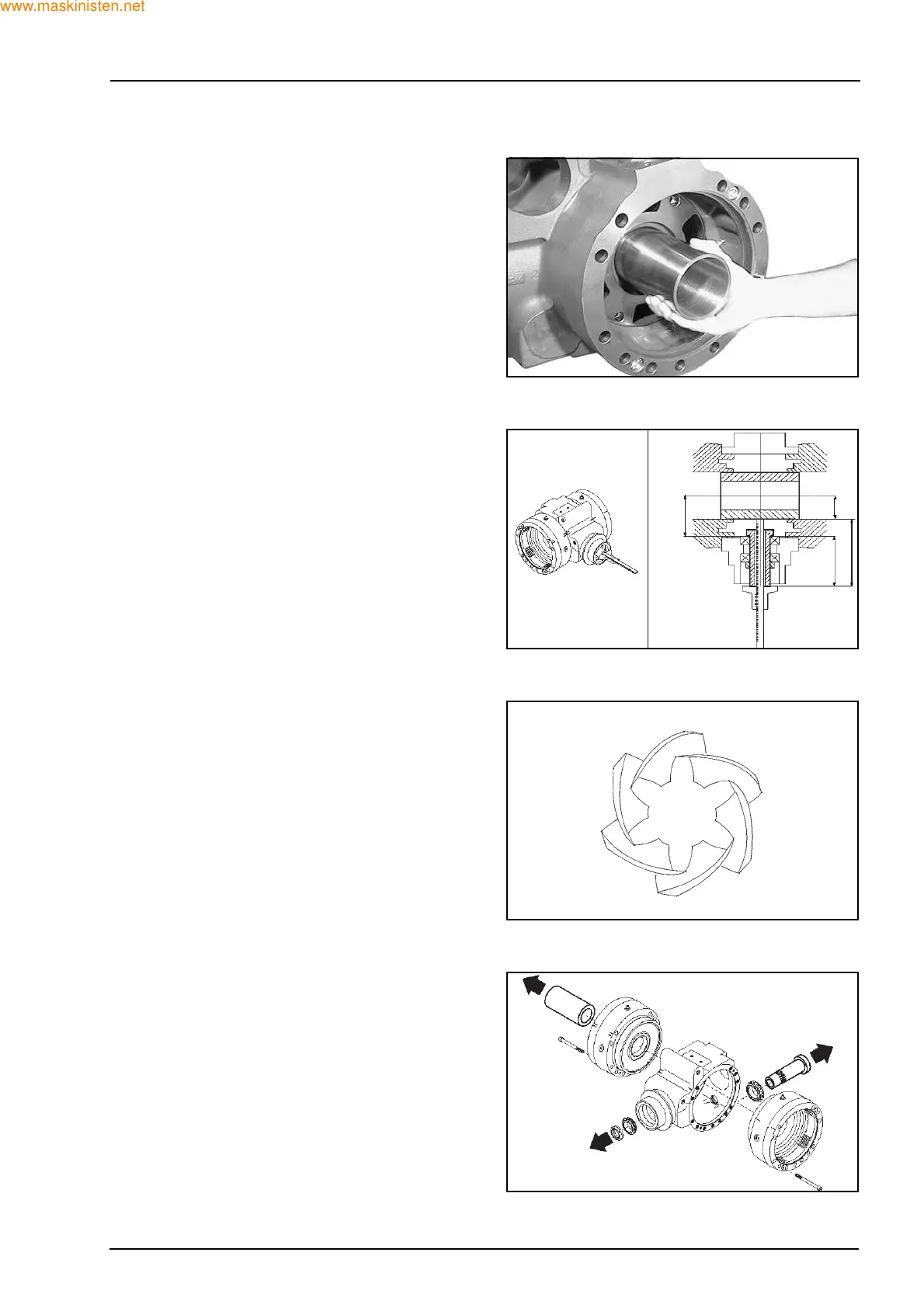

Insert the false differential box 380002674 into the
central body to measure the distance.
Check that the false box is inserted in both brake
flanges’ housings.
Carry out the measurement with a depth gauge
through the suitable false pinion hole.
X = (conical distance to be measured)
A = (measured value)
B= (known value)= 100 mm
C= (known value)= 50 mm
(A+C) - B = X
In order to determine the shim (S) necessary be-
tween the pinion and the bearing, you should sub-
tract the (V) value stamped on the pinion head (V =
requested conical distance) from the (X) value.
S = X-V
Remove the false pinion, the bearings and the ring
nut from the central body.
Disassemble the false differential box from the
flanges and then unscrew the screws to remove the
flanges.
F28093
A
BC
X
F28094
F27331
V
F28095
