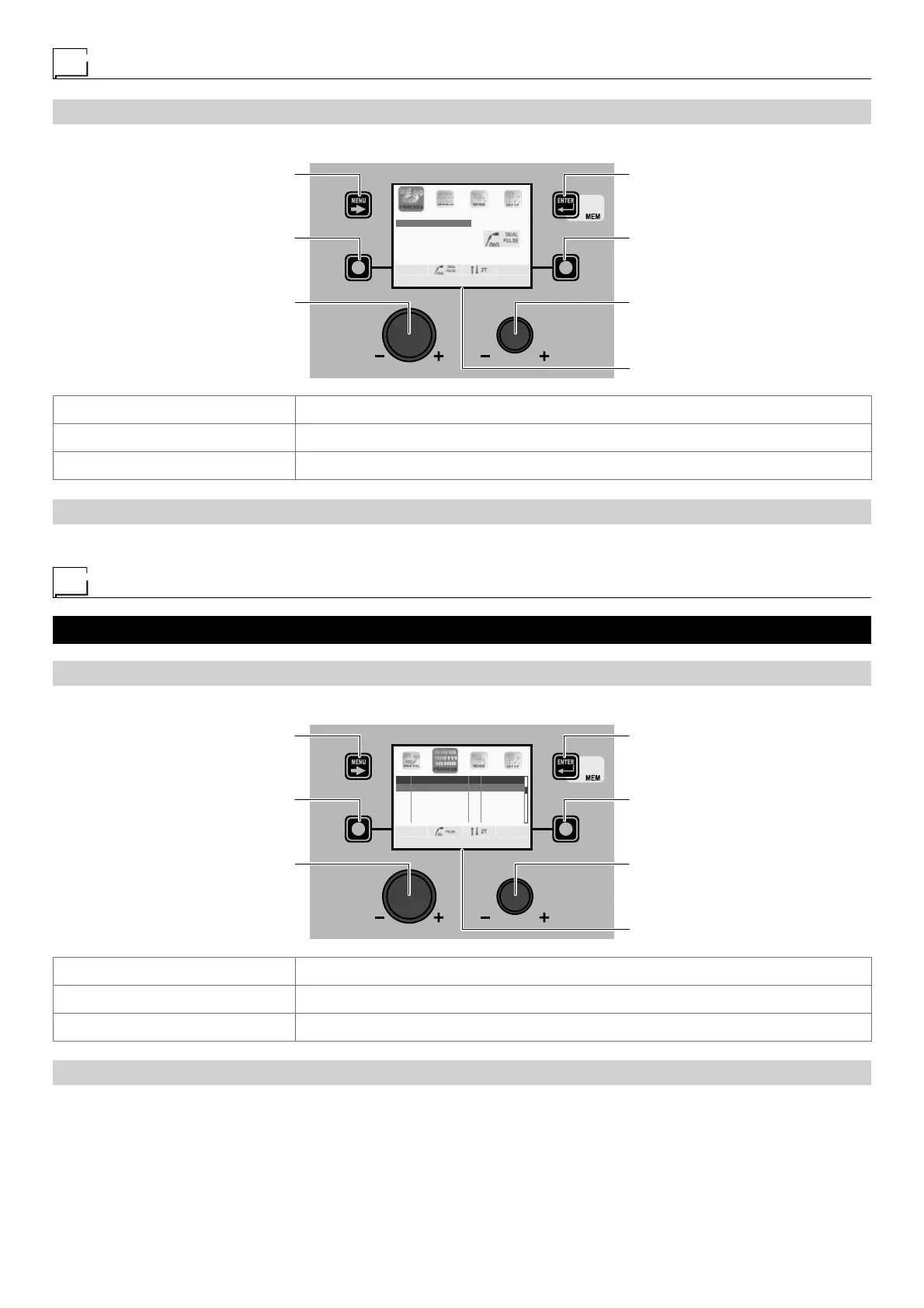

WELDING PROCESS SELECTION Menu (PROCESS)
“DH” CONTROL PANEL
To access the PROCESS SELECTION Menu (PROCESS) push the MENU KEY.
MENU KEY ENTER/MEM KEY
ENCODER KNOB - SX ENCODER KNOB - DX
VISION S
CREEN
SX KEY DX KEY
MIG PULSE
MIG DUAL PULSE
MIG/MAG SYNERGIC
MIG/MAG MANUAL
MMA
TIG LIFT
2011 Fe G3 SI-1 Ø 0.8 Ar 16-20% CO2
MENU KEY Provides access to the next menus.
ENCODER K
NOB - SX Select the welding process.
ENTER/MEM K
EY This key is used to access PRE-SETTING for the process selected.
“HT4” CONTROL PANEL
It is not possible to access the PROCESS SELECTION Menu (PROCESS) via the HT4 control panel.
MIG pulse
1 - PROGRAM SELECTION Menu (PROGRAM) MIG pulse
“DH” CONTROL PANEL
To access the PROGRAM SELECTION Menu (PROGRAM) push the MENU KEY.
MENU KEY ENTER/MEM KEY
ENCODER KNOB - SX ENCODER KNOB - DX
VISION S
CREEN
SX KEY DX KEY
PRG MATERIAL Ø GAS
1011 Fe G3 SI-1 0.8 Ar 16-20% CO2
1012 Fe G3 SI-1 1.0 Ar 16-20% CO2
1013 Fe G3 SI-1 1.2 Ar 16-20% CO2
1014 Fe G3 SI-1 1.6 Ar 16-20% CO2
1021 Fe G3 SI-1 0.8 Ar 11-15% CO2
1011 Fe G3 SI-1 Ø 0.8 Ar 16-20% CO2
1/50
MENU KEY Used to access subsequent menus if there are any.
ENCODER K
NOB - SX Select the welding program.
ENTER/MEM K
EY Used to access PRE-SETTING of the program selected.
“HT4” CONTROL PANEL
It is not possible to access the PROGRAM SELECTION Menu (PROGRAM) via the HT4 control panel.
