CEA DIGITECH vision PULSE 5000 - Job Pre-Setting

51

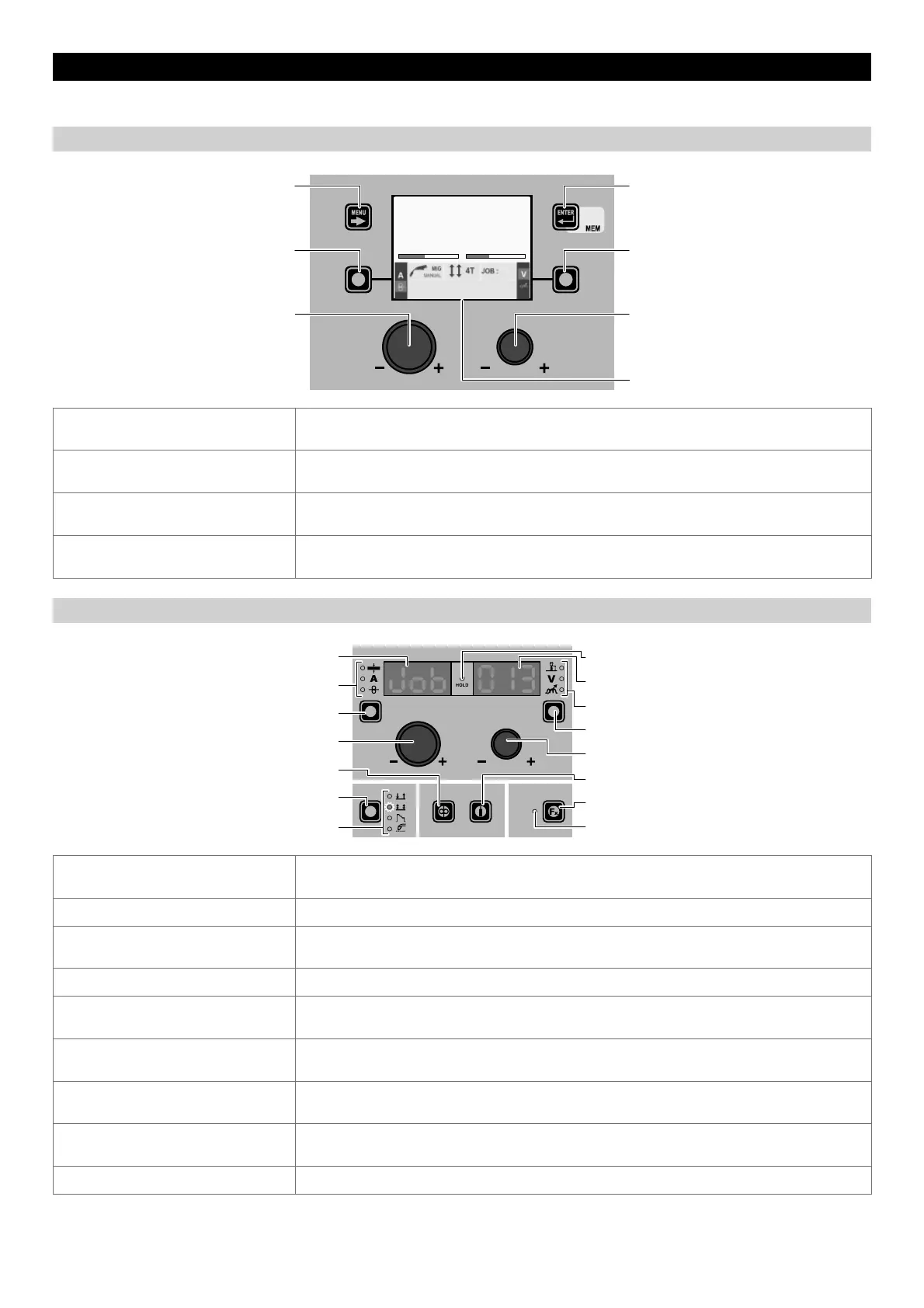

3 - PRE-SETTING JOB
WARNING: All the parameters saved within a JOB (including SPECIAL FUNCTIONS (Fx)) can be viewed but not edited!
“DH” CONTROL PANEL
MENU KEY ENTER/MEM KEY
ENCODER KNOB - SX ENCODER KNOB - DX
VISION S
CREEN
SX KEY DX KEY
m/min V
11.1 33.3
013
MENU KEY
Used to access the PROCESS SELECTION Menu (PROCESS) and subsequent menus, as
applicable.
SX KEY
Scrolls the active parameters in succession, based on the type of welding process saved in
the JOB selected.
ENTER/MEM KEY
If held down for a period of about 3 consecutive seconds, this key allows the VISION SCREEN to
load all the parameters for the JOB onto the screen (making them available to the operator).
DX K
EY
Scrolls the active parameters in succession, based on the type of welding process saved in
the JOB selected.
“HT4” CONTROL PANEL
WELDING MODE SELECTION LED
WELDING MODE SELECTION K
EY
WIRE KEY
ENCODER KNOB - A
PARAMETER SELECTION K
EY - A
PARAMETER SELECTION LED - A
PARAMETER DISPLAY S
CREEN - A
SPECIAL FUNCTIONS (FX) LED
SPECIAL FUNCTIONS (F
X) KEY
GAS KEY
ENCODER KNOB - V
PARAMETER SELECTION KEY - V
PARAMETER SELECTION LED - V
PARAMETER DISPLAY SCREEN - V
HOLD Function LED
PARAMETER DISPLAY SCREEN - A
Shows the JOB term or value of the parameter indicated by the PARAMETER SELECTION LED -
A.
PARAMETER SELECTION LED - A The LED unit shows the welding parameter selected using the PARAMETER SELECTION K
EY - A.
PARAMETER SELECTION K
EY - A
Scrolls the active parameters in succession, based on the type of welding process saved in
the JOB selected.
WIRE K
EY Activates loading of the wire.
WELDING MODE SELECTION LED
The LED unit indicates the welding mode saved in the JOB selected, which is coherent with
the VISION S
CREEN.
PARAMETER DISPLAY S
CREEN - V
Shows the number for the JOB selected or the value for the parameter indicated by the
PARAMETER SELECTION LED - V.
PARAMETER SELECTION LED - V
The LED unit indicates the welding parameter selected using the PARAMETER SELECTION K
EY
- V.
PARAMETER SELECTION KEY - V
Scrolls the active parameters in succession, based on the type of welding process saved in
the JOB selected.
ENCODER K
NOB - V Used to scroll and select a JOB.
(continued)
