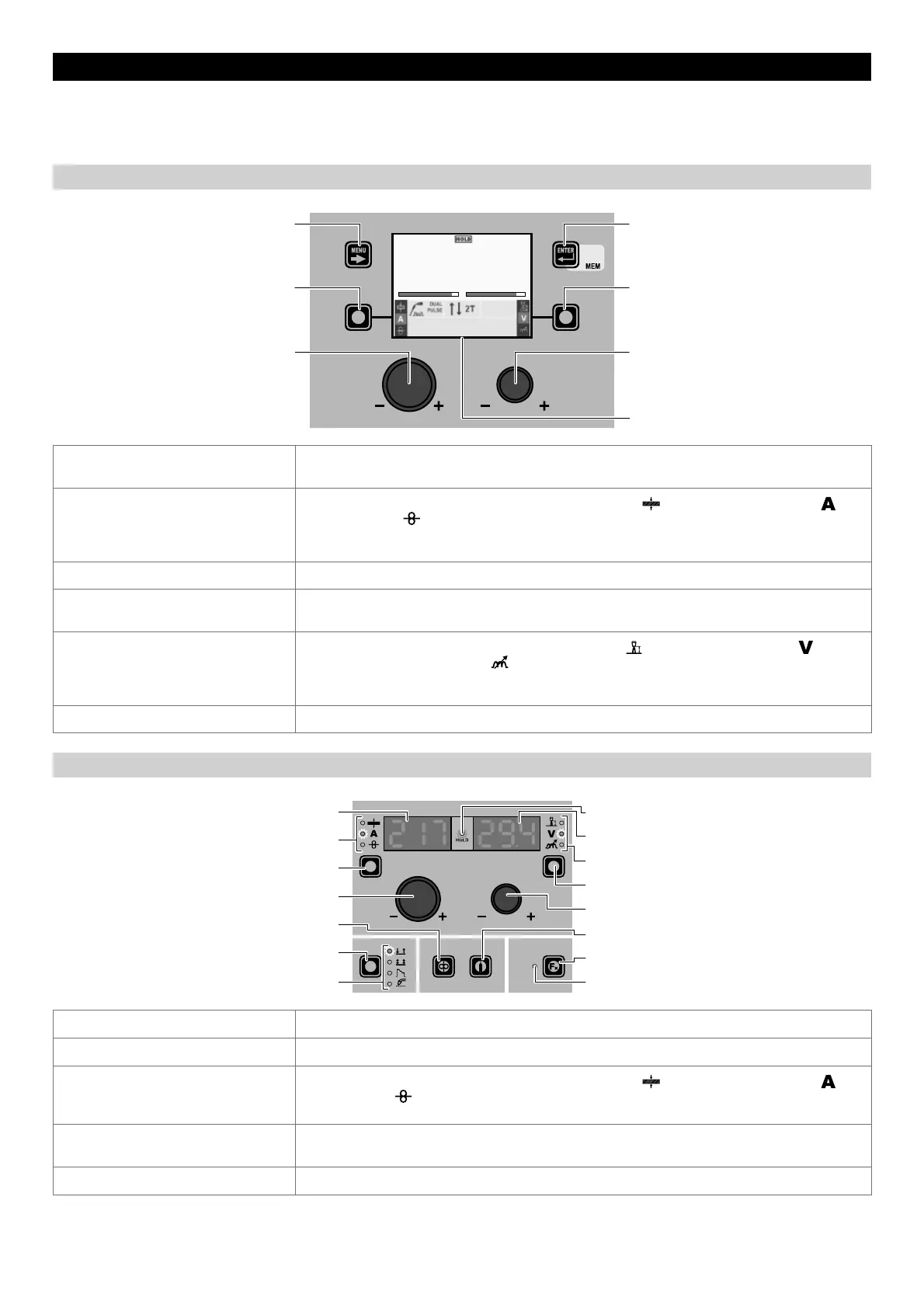

6 - HOLD MIG dual pulse
When welding ends the fields in the display must show the same values that were displayed during welding, with the difference
that they are now values defined as HOLD. In this phase the VISION S CREEN shows the HOLD box highlighted, while on the HT4
panel the HOLD FUNCTION LED flashes until the end of the HOLD Function. If the HOLD Function is Interrupted via a panel (e.g. DH),
it will also be interrupted automatically on the other (HT4) and vice-versa.
“DH” CONTROL PANEL
MENU KEY ENTER/MEM KEY
ENCODER KNOB - SX ENCODER KNOB - DX
VISION S
CREEN
SX KEY DX KEY
Fe G3 SI-1 Ø 0.8 Ar 16-20% CO2
PROGRAM 2011
AV
217 29.4
MENU KEY
Used to access the PROCESS SELECTION Menu (PROCESS) interrupting the HOLD
Function and subsequent menus, as applicable.
SX K
EY
Scrolls in succession THICKNESS OF WELDED ITEM ( ) - WELDING CURRENT ( )
- WIRE SPEED (
) only on the VISION SCREEN (this operation is activated when the key is
released).
In this case the values displayed are those for: HOLD.
ENCODER K
NOB - SX Adjusts the parameter selected using the SX KEY interrupting the HOLD Function.
ENTER/MEM K
EY
If held down for 3 consecutive seconds, it interrupts the HOLD Function and makes it
possible to access SAVE JOB.
DX KEY
Scrolls in succession ARC LENGTH ADJUSTMENT ( ) - WELDING VOLTAGE ( ) -
ELECTRONIC INDUCTANCE (
) only on the VISION SCREEN (this operation is activated when
the key is released).
In this case the values displayed are those for: HOLD.
ENCODER K
NOB - DX Adjusts the parameter selected using the DX KEY interrupting the HOLD Function.
“HT4” CONTROL PANEL
WELDING MODE SELECTION LED
WELDING MODE SELECTION K
EY
WIRE KEY
ENCODER KNOB - A
PARAMETER SELECTION K
EY - A
PARAMETER SELECTION LED - A
PARAMETER DISPLAY S
CREEN - A
SPECIAL FUNCTIONS (FX) LED
SPECIAL FUNCTIONS (FX) KEY
GAS KEY
ENCODER KNOB - V
PARAMETER SELECTION KEY - V
PARAMETER SELECTION LED - V
PARAMETER DISPLAY SCREEN - V
HOLD Function LED
PARAMETER DISPLAY SCREEN - A Shows the parameter indicated by the PARAMETER SELECTION LED - A.
PARAMETER SELECTION LED - A The LED unit shows the welding parameter selected using the PARAMETER SELECTION K
EY - A.
PARAMETER SELECTION K
EY - A
Scrolls in succession THICKNESS OF WELDED ITEM (
) - WELDING CURRENT ( ) -
WIRE SPEED (
) only on panel HT4.
In this case the values displayed are those for: HOLD.
ENCODER K
NOB - A
Adjusts the parameter displayed by the PARAMETER DISPLAY S
CREEN - A interrupting the HOLD
Function.
WIRE K
EY Activates loading of the wire without interrupting the HOLD Function.
(continued)
