CEA DIGITECH vision PULSE 5000 - MMA Program Selection

39
HOLD FUNCTION LED Flashes for a set time, informing the operator that the HOLD Function is active.
PARAMETER DISPLAY S
CREEN - V Shows the parameter indicated by the PARAMETER SELECTION LED - V.
PARAMETER SELECTION LED - V
The LED unit indicates the welding parameter selected using the PARAMETER SELECTION K
EY
- V.
PARAMETER SELECTION K
EY - V
Scrolls in succession WELDING VOLTAGE (
) - ELECTRONIC INDUCTANCE ( ) only on
the HT4 panel.
In this case the values displayed are those for: HOLD.
ENCODER K
NOB - V
Adjusts the parameter displayed by the PARAMETER DISPLAY S
CREEN - V interrupting the HOLD
Function.
GAS K
EY Activates the flow of gas without interrupting the HOLD Function.
SPECIAL FUNCTIONS (F
X) KEY
Only enables entering, interrupting the HOLD Function and exit afterwards from the
SPECIAL FUNCTIONS Menu (SET UP Fx) on the HT4 panel and not on the DH panel.
MMA
1 - PROGRAM SELECTION Menu (PROGRAM) MMA

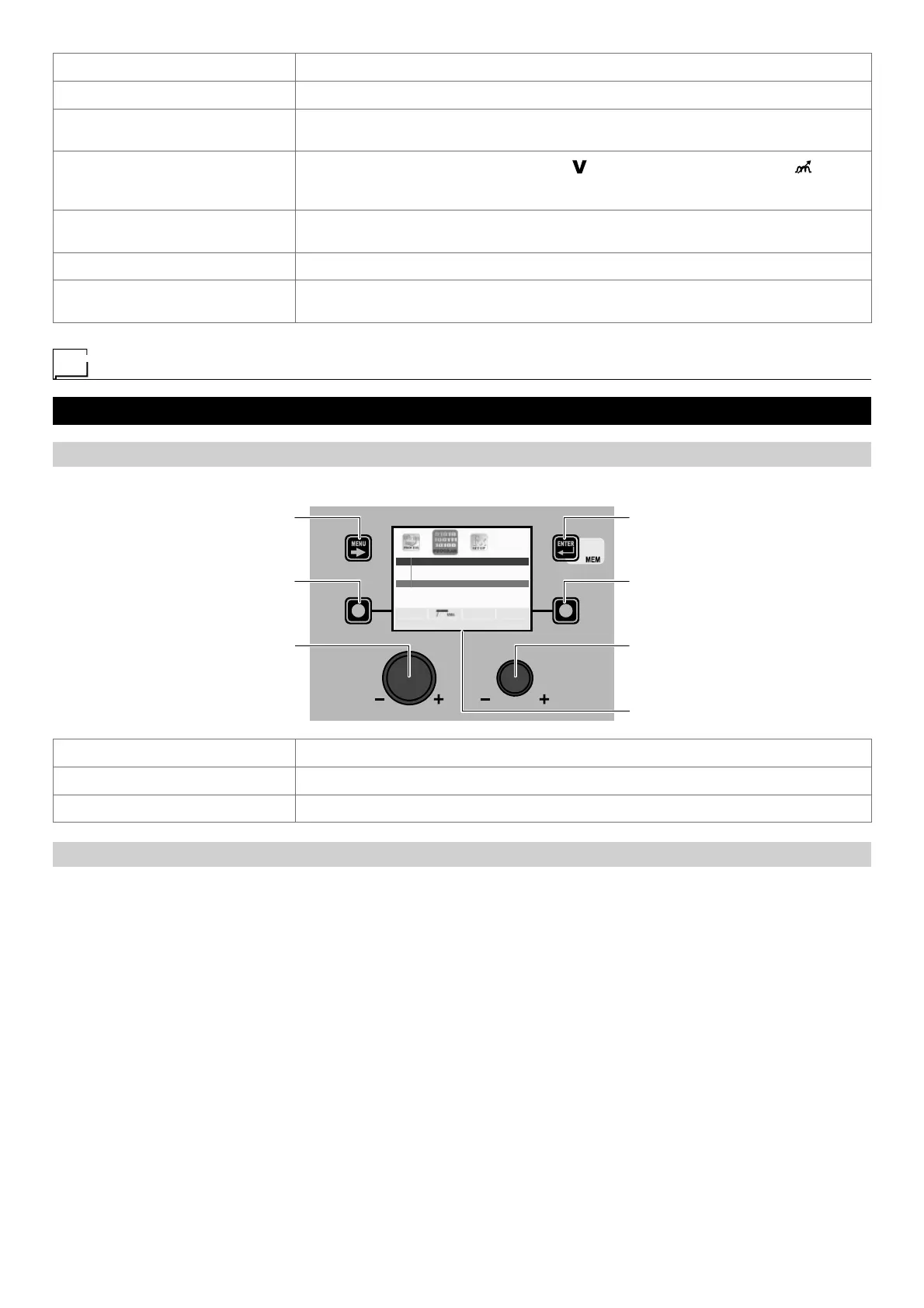

“DH” CONTROL PANEL
To access the PROGRAM SELECTION Menu (PROGRAM) push the MENU KEY.
MENU KEY ENTER/MEM KEY
ENCODER KNOB - SX ENCODER KNOB - DX
VISION SCREEN
SX KEY DX KEY
PRG TYPE
ϯϬϬϬ DDZƵƟů
3100 MMA Basic
3200 MMA Cr Ni
3200 MMA Cr Ni
3/3
MENU KEY Used to access subsequent menus if there are any.
ENCODER K
NOB - SX Select the welding program.
ENTER/MEM K
EY Used to access PRE-SETTING of the program selected.
“HT4” CONTROL PANEL
It is not possible to access the PROGRAM SELECTION Menu (PROGRAM) via the HT4 control panel.
