71

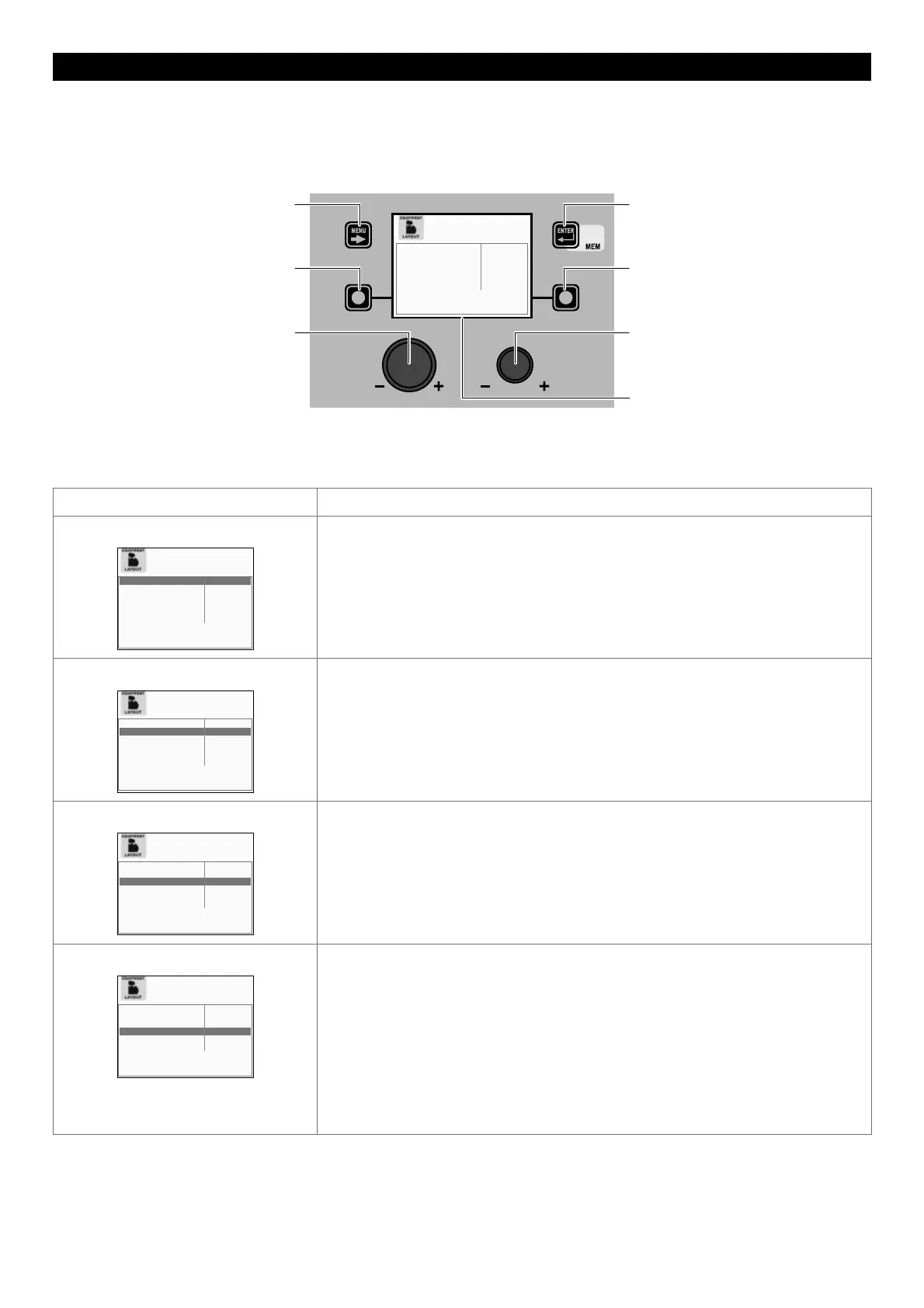

EQUIPMENT LAYOUT ADVANCED SETUP Menu
The purpose of this menu is to allow the operator to manage connections of components and accessories that are part of the
welding plant.
To access the EQUIPMENT LAYOUT Menu from the ADVANCED SETUP Menu:
• Turn the ENCODER K
NOB - SX to select the desired icon.
• Push the ENTER/MEM K
EY.
MENU KEY ENTER/MEM KEY
ENCODER KNOB - SX ENCODER KNOB - DX
VISION SCREEN
SX KEY DX KEY
WATER COOLER OPTIONAL
WIRE FEEDER OPTIONAL
DIGITORCH OPTIONAL
ANALOGIC RC OPTIONAL
TORCH TYPE 400A H2O
SAFETY CALIBRATION CODE 013
Within the EQUIPMENT LAYOUT Menu, it is possible, by rotating the ENCODER KNOB - SX, to select the component of the welding
plant, while by rotating the ENCODER K
NOB - DX, you can decide the type of connection required (e.g. Optional) or the type of com-
ponent (e.g. Torch 400 A H2O) that is to be connected to the plant (this operation does not require confirmation).
Advanced function Description
WATER COOLER
WATER COOLER OPTIONAL
WIRE FEEDER OPTIONAL
DIGITORCH OPTIONAL
ANALOGIC RC OPTIONAL
TORCH TYPE 400A H2O
SAFETY CALIBRATION CODE 013
OPTIONAL - Means that the water cooler system may or may not be connected to the
welding machine.
OBLIGATORY - Means that it is obligatory for the water cooler system to be connected to
the welding plant.
A error condition is generated when:
• Switching on or at any other time if the welding plant does not detect the presence.
• During normal operation if the water cooler system is disconnected.
WIRE FEEDER
WATER COOLER OPTIONAL
WIRE FEEDER OPTIONAL
DIGITORCH OPTIONAL
ANALOGIC RC OPTIONAL
TORCH TYPE 400A H2O
SAFETY CALIBRATION CODE 013
OPTIONAL - Means that the wire feeder may or may not be connected to the welding
machine.
OBLIGATORY - Means that it is obligatory for the wire feeder to be connected to the
welding plant.
A error condition is generated when:
• Switching on or at any other time if the welding plant does not detect the presence.
• During normal operation if the wire feeder is disconnected.
DIGITORCH
WATER COOLER OPTIONAL
WIRE FEEDER OPTIONAL
DIGITORCH OPTIONAL
ANALOGIC RC OPTIONAL
TORCH TYPE 400A H2O
SAFETY CALIBRATION CODE 013
OPTIONAL - Means that the DIGITORCH torch may or may not be connected to the
welding machine.
ANALOGIC RC
WATER COOLER OPTIONAL
WIRE FEEDER OPTIONAL
DIGITORCH OPTIONAL
ANALOGIC RC OPTIONAL
TORCH TYPE 400A H2O
SAFETY CALIBRATION CODE 013
OPTIONAL - Means that the ANALOGIC RC remote control may or may not be
connected to the welding plant.
OBLIGATORY - Means that it is obligatory for the ANALOGIC RC remote control to be
connected to the welding plant.
A error condition is generated when:
• Switching on or at any other time if the welding plant does not detect the presence.
• During normal operation if the ANALOGIC RC remote control is disconnected.
WARNING: For indications on use and functioning of the ANALOGIC RC remote
control see the manuals for the welding machine and the wire feeder, enclosed with the
documentation.
(continued)
