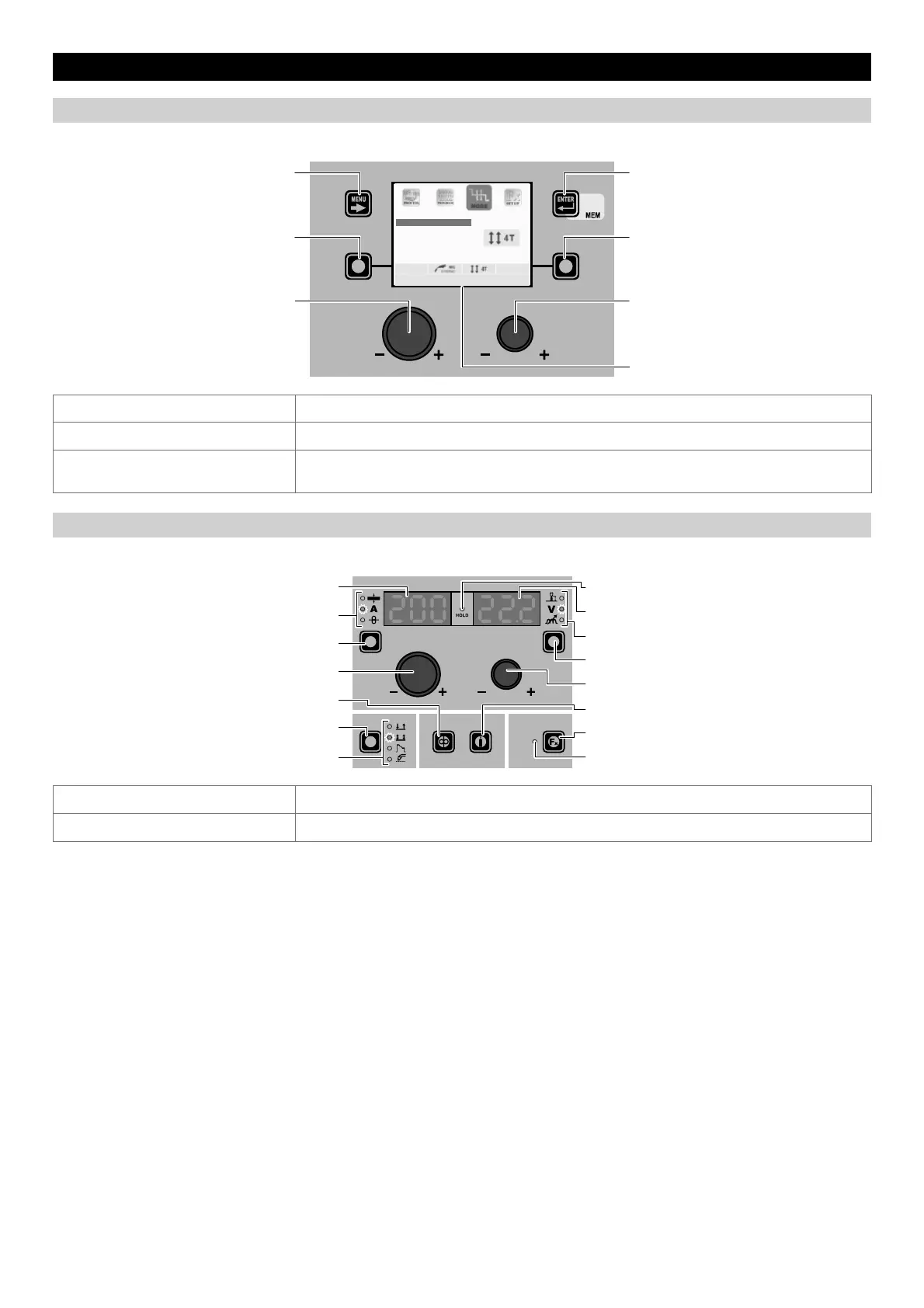

2 - WELDING MODE SELECTION Menu (MODE) MIG-MAG synergic
“DH” CONTROL PANEL
To access the WELDING MODE SELECTION Menu (MODE) push the MENU KEY.
MENU KEY ENTER/MEM KEY
ENCODER KNOB - SX ENCODER KNOB - DX
VISION S
CREEN
SX KEY DX KEY
TWO STROKE (2T)
FOUR STROKE (4T)
CRATER 2T
CRATER 4T
SPOT WELDING
STITCH WELDING
0011 Fe G3 Sl-1 Ø 0.8 Ar 16-20% CO2
MENU KEY Used to access subsequent menus if there are any.
ENCODER K
NOB - SX Select the welding mode.
ENTER/MEM K
EY
Used to access the PRE-SETTING for the program selected beforehand, in the MODE
chosen.
“HT4” CONTROL PANEL
To access the WELDING MODE SELECTION Menu (MODE) push the WELDING MODE SELECTION KEY.
WELDING MODE SELECTION LED
WELDING MODE SELECTION K
EY
WIRE KEY
ENCODER KNOB - A
PARAMETER SELECTION K
EY - A
PARAMETER SELECTION LED - A
PARAMETER DISPLAY S
CREEN - A
SPECIAL FUNCTIONS (FX) LED
SPECIAL FUNCTIONS (FX) KEY
GAS KEY
ENCODER KNOB - V
PARAMETER SELECTION KEY - V
PARAMETER SELECTION LED - V
PARAMETER DISPLAY SCREEN - V
HOLD Function LED
WELDING MODE SELECTION KEY Scrolls the various welding modes available in succession.
WELDING MODE SELECTION LED Displays the welding mode selected.
