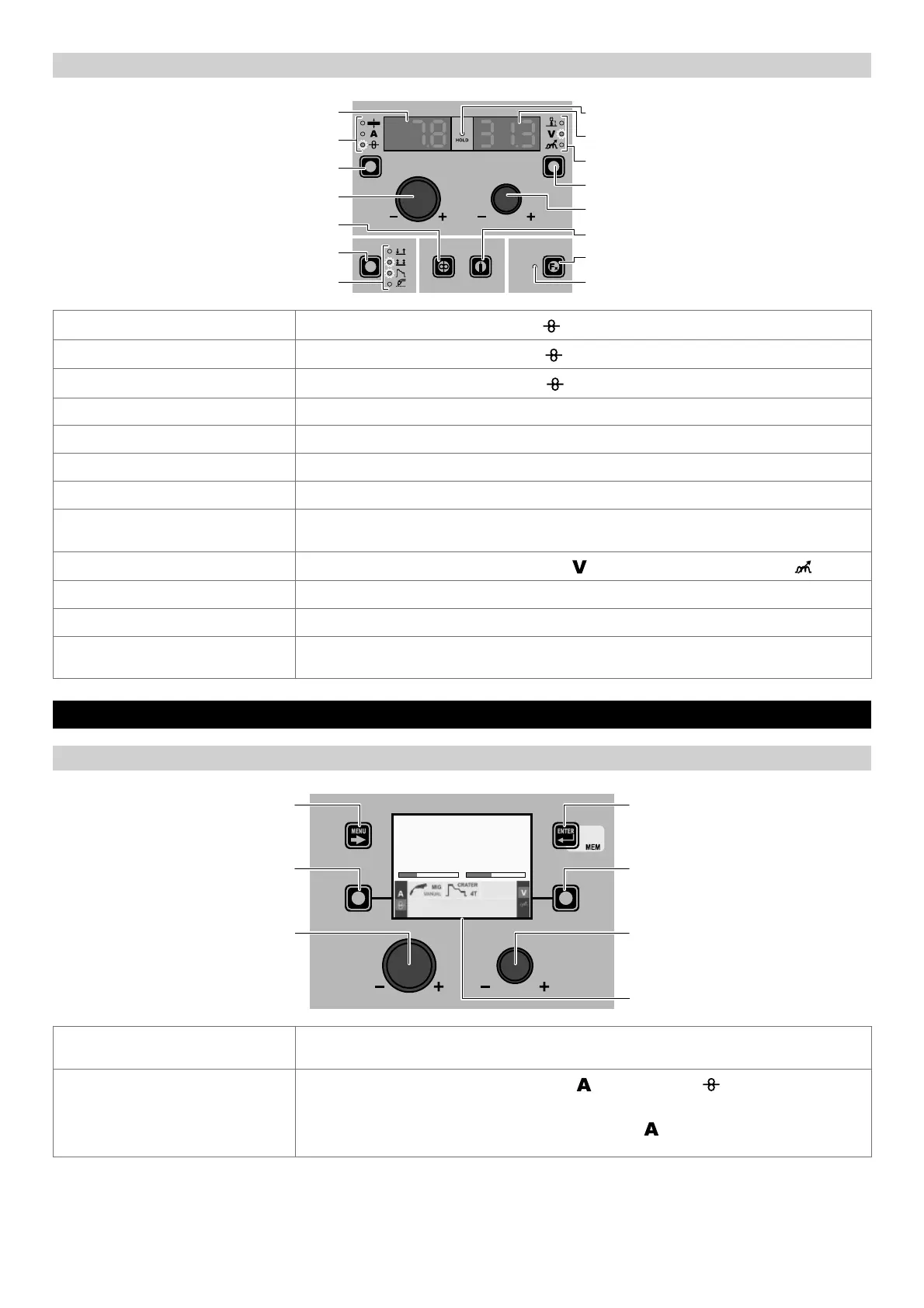

“HT4” CONTROL PANEL
WELDING MODE SELECTION LED
WELDING MODE SELECTION K
EY
WIRE KEY
ENCODER KNOB - A
PARAMETER SELECTION K
EY - A
PARAMETER SELECTION LED - A
PARAMETER DISPLAY S
CREEN - A
SPECIAL FUNCTIONS (FX) LED
SPECIAL FUNCTIONS (F
X) KEY
GAS KEY
ENCODER KNOB - V
PARAMETER SELECTION K
EY - V
PARAMETER SELECTION LED - V
PARAMETER DISPLAY S
CREEN - V
HOLD Function LED
PARAMETER DISPLAY SCREEN - A
Shows the value for the WIRE SPEED (
).
PARAMETER SELECTION LED - A
The LED unit shows the WIRE SPEED (
) switched on.
ENCODER KNOB - A
Adjusts the value for the WIRE SPEED (
).
WIRE K
EY Activates loading of the wire.
WELDING MODE SELECTION K
EY Scrolls the various welding modes in succession.
WELDING MODE SELECTION LED The LED unit indicates the welding mode selected according to the VISION S
CREEN.
PARAMETER DISPLAY S
CREEN - V Shows the parameter indicated by the PARAMETER SELECTION LED - V.
PARAMETER SELECTION LED - V
The LED unit indicates the welding parameter selected using the PARAMETER SELECTION K
EY
- V.
PARAMETER SELECTION K
EY - V
Scrolls in succession WELDING VOLTAGE (
) - ELECTRONIC INDUCTANCE ( ).
ENCODER K
NOB - V Adjusts the parameter displayed by the PARAMETER DISPLAY SCREEN - V.
GAS K
EY Activates the flow of gas.
SPECIAL FUNCTIONS (F
X) KEY
Only enables entering and exit afterwards from the SPECIAL FUNCTIONS Menu (SET UP
Fx) on the HT4 panel and not on the DH panel.
4 - WELDING MIG-MAG manual
“DH” CONTROL PANEL
MENU KEY ENTER/MEM KEY
ENCODER KNOB - SX ENCODER KNOB - DX
VISION SCREEN
SX KEY DX KEY
m/min V
7.8 31.3
MENU KEY
Used to access the PROCESS SELECTION Menu (PROCESS) and subsequent menus, as
applicable.
SX K
EY
Scrolls in succession WELDING CURRENT ( ) - WIRE SPEED ( ) only on the VISION
S
CREEN.
In this case, where possible, the values displayed will be those measured.
When welding is in progress the WELDING CURRENT (
) is displayed continuously until
this key is pushed.
(continued)
