GAS KEY Activates the flow of gas.
SPECIAL FUNCTIONS (F
X) KEY Used to access the SPECIAL FUNCTIONS (Fx) saved in the JOB selected.
4 - WELDING JOB
WARNING: All the parameters saved within a JOB (including SPECIAL FUNCTIONS (Fx)) can be viewed but not edited!

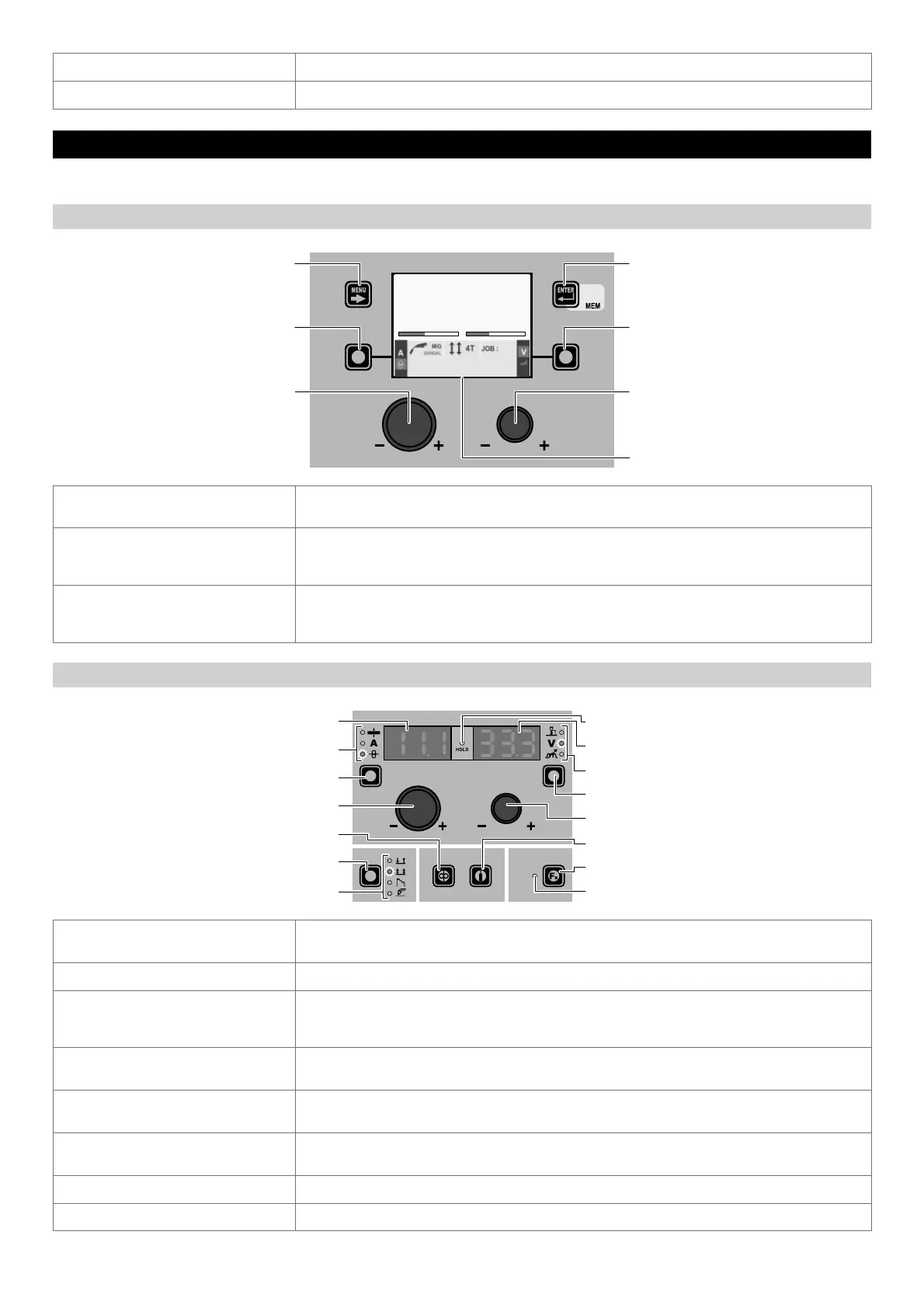

“DH” CONTROL PANEL
MENU KEY ENTER/MEM KEY
ENCODER KNOB - SX ENCODER KNOB - DX
VISION S
CREEN
SX KEY DX KEY
m/min V
11.1 33.3
013
MENU KEY
Used to access the PROCESS SELECTION Menu (PROCESS) and subsequent menus, as
applicable.
SX K
EY
Scrolls the active parameters in succession, only on the VISION SCREEN, based on the type of
welding process saved in the JOB selected.
In this case, where possible, the values displayed will be those measured.
DX K
EY
Scrolls the active parameters in succession, only on the VISION SCREEN, based on the type of
welding process saved in the JOB selected.
In this case, where possible, the values displayed will be those measured.
“HT4” CONTROL PANEL
WELDING MODE SELECTION LED
WELDING MODE SELECTION K
EY
WIRE KEY
ENCODER KNOB - A
PARAMETER SELECTION K
EY - A
PARAMETER SELECTION LED - A
PARAMETER DISPLAY S
CREEN - A
SPECIAL FUNCTIONS (FX) LED
SPECIAL FUNCTIONS (FX) KEY
GAS KEY
ENCODER KNOB - V
PARAMETER SELECTION KEY - V
PARAMETER SELECTION LED - V
PARAMETER DISPLAY SCREEN - V
HOLD Function LED
PARAMETER DISPLAY SCREEN - A
Shows the JOB term or value of the parameter indicated by the PARAMETER SELECTION LED -
A.
PARAMETER SELECTION LED - A The LED unit shows the welding parameter selected using the PARAMETER SELECTION K
EY - A.
PARAMETER SELECTION K
EY - A
Scrolls the active parameters in succession, based on the type of welding process saved in
the JOB selected.
In this case, where possible, the values displayed will be those measured.
WELDING MODE SELECTION LED
The LED unit indicates the welding mode saved in the JOB selected, which is coherent with
the VISION S
CREEN.
PARAMETER DISPLAY S
CREEN - V
Shows the number for the JOB selected or the value for the parameter indicated by the
PARAMETER SELECTION LED - V.
PARAMETER SELECTION LED - V
The LED unit indicates the welding parameter selected using the PARAMETER SELECTION K
EY
- V.
PARAMETER SELECTION K
EY - V Used to access displaying of the SPECIAL FUNCTIONS (Fx) saved in the JOB selected.
SPECIAL FUNCTIONS (F
X) KEY Used to access the SPECIAL FUNCTIONS (Fx) saved in the JOB selected.
