CEA DIGITECH vision PULSE 5000 - MIG Dual Pulse Program Selection

16
MIG dual pulse

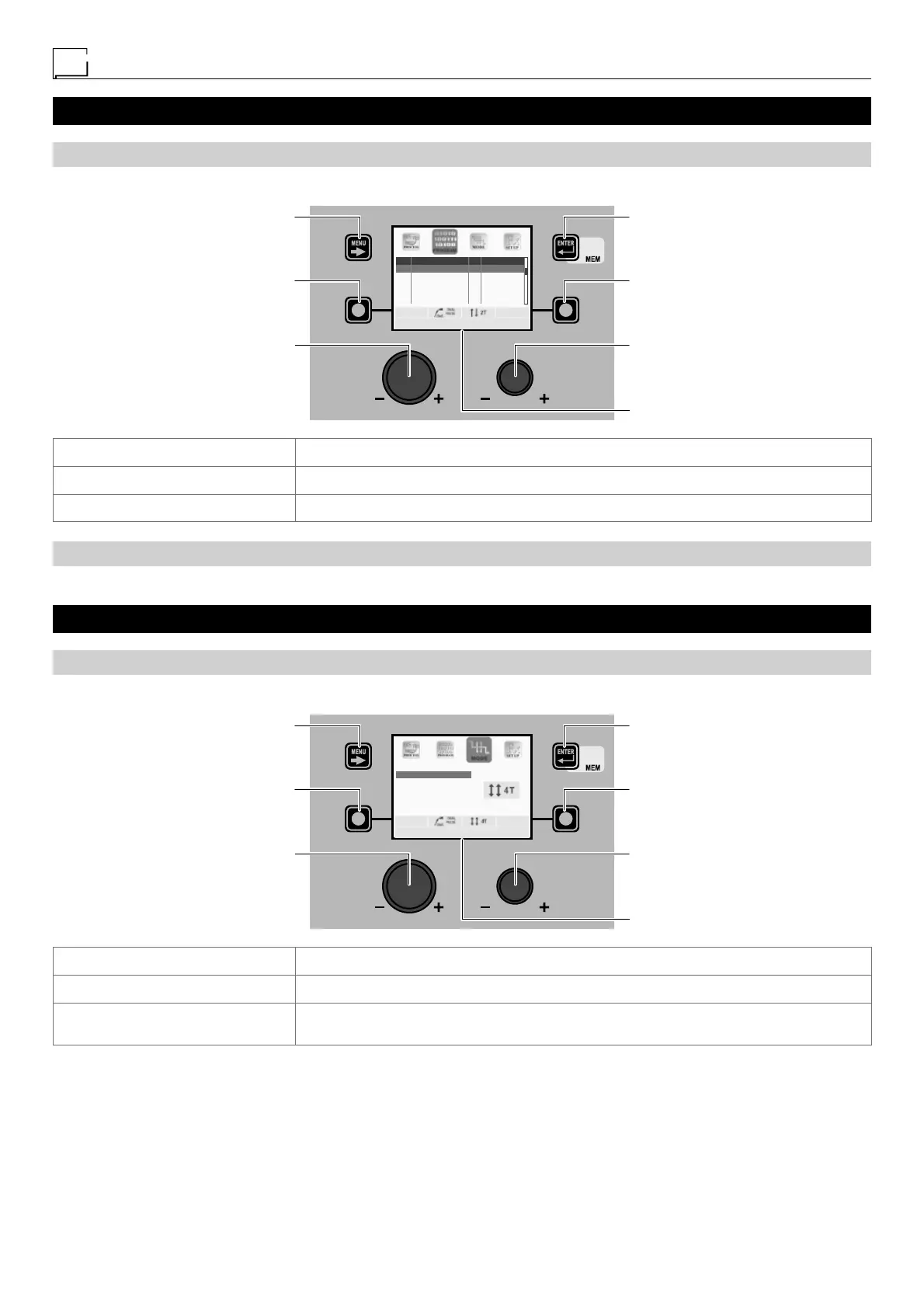

1 - PROGRAM SELECTION Menu (PROGRAM) MIG dual pulse
“DH” CONTROL PANEL
To access the PROGRAM SELECTION Menu (PROGRAM) push the MENU KEY.
MENU KEY ENTER/MEM KEY
ENCODER KNOB - SX ENCODER KNOB - DX
VISION S
CREEN
SX KEY DX KEY
PRG MATERIAL Ø GAS
2011 Fe G3 SI-1 0.8 Ar 16-20% CO2
2012 Fe G3 SI-1 1.0 Ar 16-20% CO2
2013 Fe G3 SI-1 1.2 Ar 16-20% CO2
2014 Fe G3 SI-1 1.6 Ar 8-10% CO2
2021 Fe G3 SI-1 0.8 Ar 8-10% CO2
2011 Fe G3 SI-1 Ø 1.6 Ar 16-20% CO2
1/50
MENU KEY Used to access subsequent menus if there are any.
ENCODER K
NOB - SX Select the welding program.
ENTER/MEM K
EY Used to access PRE-SETTING of the program selected.
“HT4” CONTROL PANEL
It is not possible to access the PROGRAM SELECTION Menu (PROGRAM) via the HT4 control panel.
2 - WELDING MODE SELECTION Menu (MODE) MIG dual pulse
“DH” CONTROL PANEL
To access the WELDING MODE SELECTION Menu (MODE) push the MENU KEY.
MENU KEY ENTER/MEM KEY
ENCODER KNOB - SX ENCODER KNOB - DX
VISION S
CREEN
SX KEY DX KEY
TWO STROKE (2T)
FOUR STROKE (4T)
CRATER 2T
CRATER 4T
SPOT WELDING
STITCH WELDING
CYCLE (4T CRATER)
2011 Fe G3 Sl-1 Ø 0.8 Ar 16-20% CO2
MENU KEY Used to access subsequent menus if there are any.
ENCODER K
NOB - SX Select the welding mode.
ENTER/MEM K
EY
Used to access the PRE-SETTING for the program selected beforehand, in the MODE
chosen.
