2 - JOB SELECTION Menu (JOB) JOB
WARNING: All the parameters saved within a JOB (including SPECIAL FUNCTIONS (Fx)) can be viewed but not edited!

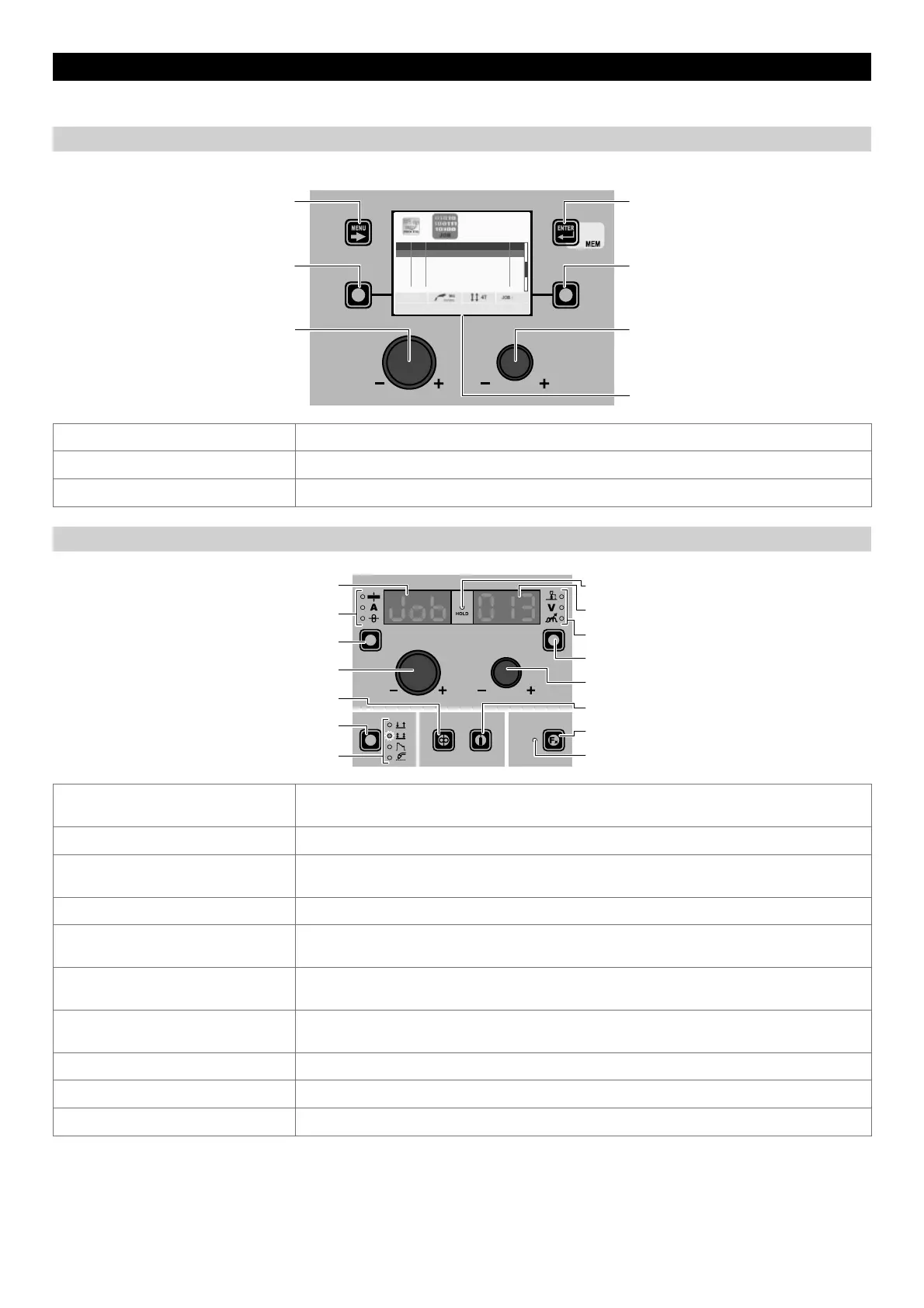

“DH” CONTROL PANEL
To access the JOB SELECTION Menu (JOB) push the MENU KEY.
MENU KEY ENTER/MEM KEY
ENCODER KNOB - SX ENCODER KNOB - DX
VISION S
CREEN
SX KEY DX KEY
PRG JOB PROCESS I
0013 MIG/MAG MANUAL 111
01311/17
MENU KEY Used to access subsequent menus if there are any.
ENCODER K
NOB - SX Used to scroll and select a JOB.
ENTER/MEM K
EY Used to select the JOB displayed.
“HT4” CONTROL PANEL
WELDING MODE SELECTION LED
WELDING MODE SELECTION K
EY
WIRE KEY
ENCODER KNOB - A
PARAMETER SELECTION K
EY - A
PARAMETER SELECTION LED - A
PARAMETER DISPLAY S
CREEN - A
SPECIAL FUNCTIONS (FX) LED
SPECIAL FUNCTIONS (FX) KEY
GAS KEY
ENCODER KNOB - V
PARAMETER SELECTION KEY - V
PARAMETER SELECTION LED - V
PARAMETER DISPLAY SCREEN - V
HOLD Function LED
PARAMETER DISPLAY SCREEN - A
Shows the JOB term or value of the parameter indicated by the PARAMETER SELECTION LED -
A.
PARAMETER SELECTION LED - A The LED unit shows the welding parameter selected using the PARAMETER SELECTION K
EY - A.
PARAMETER SELECTION K
EY - A
Scrolls the active parameters in succession, based on the type of welding process saved in
the JOB selected.
WIRE K
EY Activates loading of the wire.
WELDING MODE SELECTION LED
The LED unit indicates the welding mode saved in the JOB selected, which is coherent with
the VISION S
CREEN.
PARAMETER DISPLAY S
CREEN - V
Shows the number for the JOB selected or the value for the parameter indicated by the
PARAMETER SELECTION LED - V.
PARAMETER SELECTION K
EY - V
Scrolls the active parameters in succession, based on the type of welding process saved in
the JOB selected.
ENCODER K
NOB - V Used to scroll and select a JOB.
GAS K
EY Activates the flow of gas.
SPECIAL FUNCTIONS (F
X) KEY Used to access displaying of the SPECIAL FUNCTIONS (Fx) saved in the JOB selected.
