CEA DIGITECH vision PULSE 5000 - MIG-MAG Synergic Program Selection

24
WELDING MODE SELECTION KEY Scrolls the various welding modes in succession, interrupting the HOLD Function.
WELDING MODE SELECTION LED The LED unit indicates the welding mode selected according to the VISION S
CREEN.
HOLD F
UNCTION LED Flashes for a set time, informing the operator that the HOLD Function is active.
PARAMETER DISPLAY S
CREEN - V Shows the parameter indicated by the PARAMETER SELECTION LED - V.
PARAMETER SELECTION LED - V
The LED unit indicates the welding parameter selected using the PARAMETER SELECTION K
EY
- V.
PARAMETER SELECTION K
EY - V
Scrolls in succession ARC LENGTH ADJUSTMENT (
) - WELDING VOLTAGE ( ) -
ELECTRONIC INDUCTANCE (
) only on panel HT4.
In this case the values displayed are those for: HOLD.
ENCODER K
NOB - V
Adjusts the parameter displayed by the PARAMETER DISPLAY S
CREEN - V interrupting the HOLD
Function.
GAS K
EY Activates the flow of gas without interrupting the HOLD Function.
SPECIAL FUNCTIONS (F
X) KEY
Only enables entering, interrupting the HOLD Function and exit afterwards from the
SPECIAL FUNCTIONS Menu (SET UP Fx) on the HT4 panel and not on the DH panel.
MIG-MAG synergic
1 - PROGRAM SELECTION Menu (PROGRAM) MIG-MAG synergic

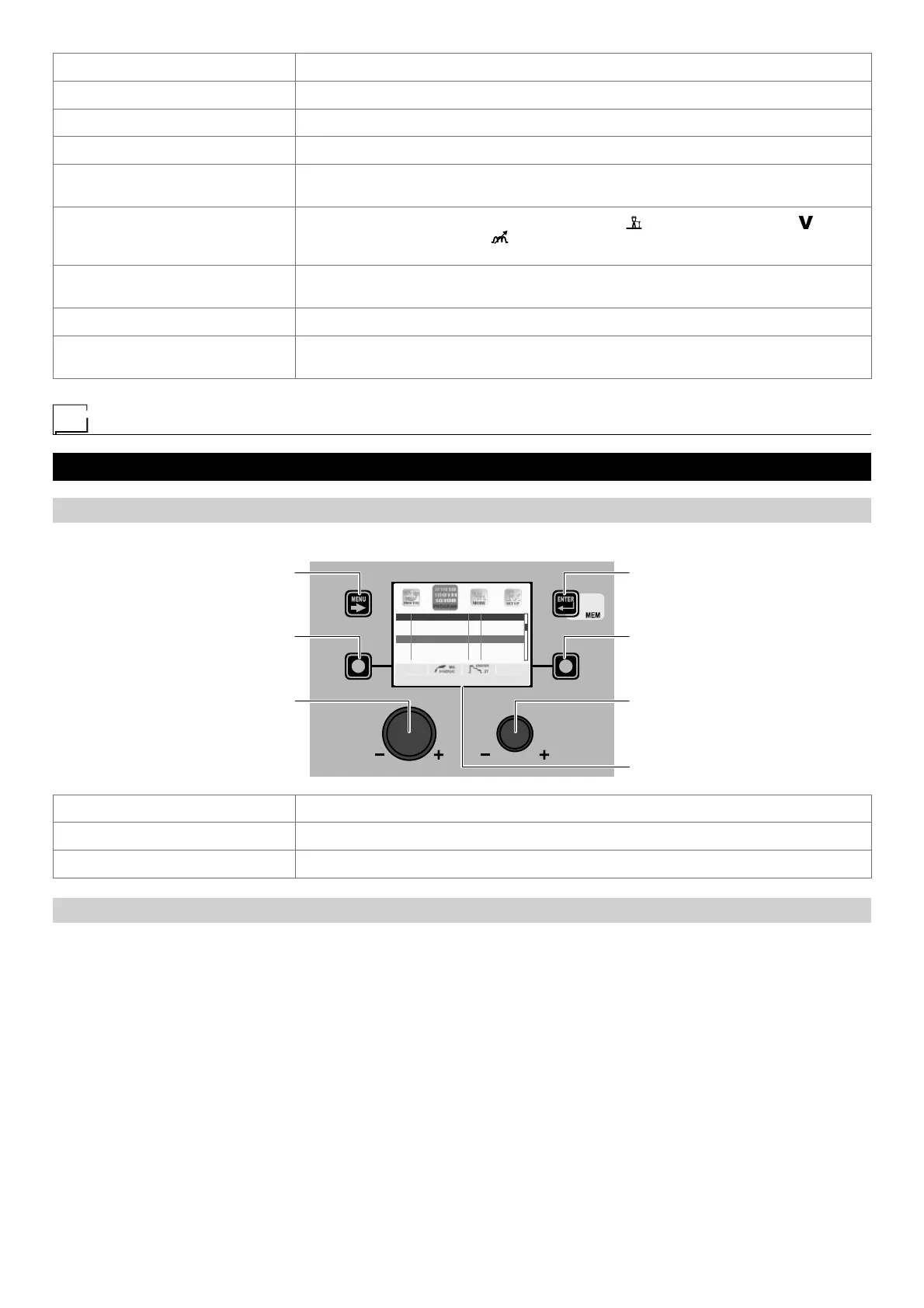

“DH” CONTROL PANEL
To access the PROGRAM SELECTION Menu (PROGRAM) push the MENU KEY.
MENU KEY ENTER/MEM KEY
ENCODER KNOB - SX ENCODER KNOB - DX
VISION SCREEN
SX KEY DX KEY
PRG MATERIAL Ø GAS
0012 Fe G3 SI-1 1.0 Ar 16-20% CO2
0013 Fe G3 SI-1 1.2 Ar 16-20% CO2
0014 Fe G3 SI-1 1.6 Ar 16-20% CO2
0031 Fe G3 SI-1 0.8 Ar 8-10% CO2
0032 Fe G3 SI-1 1.0 Ar 8-10% CO2
0014 Fe G3 SI-1 Ø 1.6 Ar 16-20% CO2
8/38
MENU KEY Used to access subsequent menus if there are any.
ENCODER K
NOB - SX Select the welding program.
ENTER/MEM K
EY Used to access PRE-SETTING of the program selected.
“HT4” CONTROL PANEL
It is not possible to access the PROGRAM SELECTION Menu (PROGRAM) via the HT4 control panel.
