CEA DIGITECH vision PULSE 5000 - Hold

38

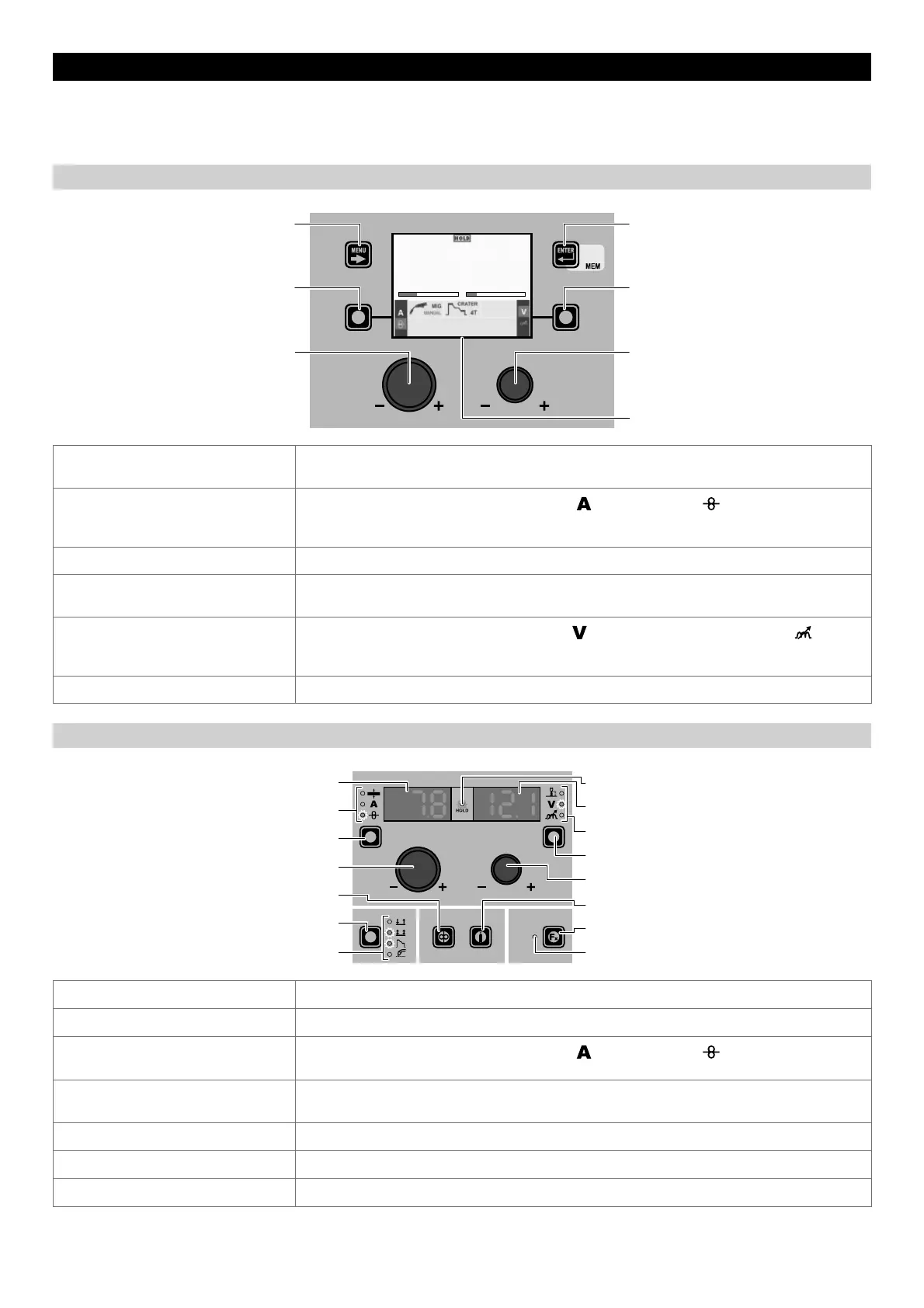

5 - HOLD MIG-MAG manual
When welding ends the fields in the display must show the same values that were displayed during welding, with the difference
that they are now values defined as HOLD. In this phase the VISION S CREEN shows the HOLD box highlighted, while on the HT4
panel the HOLD FUNCTION LED flashes until the end of the HOLD Function. If the HOLD Function is Interrupted via a panel (e.g. DH),
it will also be interrupted automatically on the other (HT4) and vice-versa.
“DH” CONTROL PANEL
MENU KEY ENTER/MEM KEY
ENCODER KNOB - SX ENCODER KNOB - DX
VISION S
CREEN
SX KEY DX KEY
m/min V
7.8 12.1
MENU KEY
Used to access the PROCESS SELECTION Menu (PROCESS) interrupting the HOLD
Function and subsequent menus, as applicable.
SX K
EY
Scrolls in succession WELDING CURRENT ( ) - WIRE SPEED ( ) only on the VISION
S
CREEN.
In this case the values displayed are those for: HOLD.
ENCODER K
NOB - SX Adjusts the parameter selected using the SX KEY interrupting the HOLD Function.
ENTER/MEM K
EY
If held down for 3 consecutive seconds, it interrupts the HOLD Function and makes it
possible to access SAVE JOB.
DX K
EY
Scrolls in succession WELDING VOLTAGE ( ) - ELECTRONIC INDUCTANCE ( ) only on
the VISION S
CREEN.
In this case the values displayed are those for: HOLD.
ENCODER K
NOB - DX Adjusts the parameter selected using the DX KEY interrupting the HOLD Function.
“HT4” CONTROL PANEL
WELDING MODE SELECTION LED
WELDING MODE SELECTION K
EY
WIRE KEY
ENCODER KNOB - A
PARAMETER SELECTION K
EY - A
PARAMETER SELECTION LED - A
PARAMETER DISPLAY S
CREEN - A
SPECIAL FUNCTIONS (FX) LED
SPECIAL FUNCTIONS (FX) KEY
GAS KEY
ENCODER KNOB - V
PARAMETER SELECTION KEY - V
PARAMETER SELECTION LED - V
PARAMETER DISPLAY SCREEN - V
HOLD Function LED
PARAMETER DISPLAY SCREEN - A Shows the parameter indicated by the PARAMETER SELECTION LED - A.
PARAMETER SELECTION LED - A The LED unit shows the welding parameter selected using the PARAMETER SELECTION K
EY - A.
PARAMETER SELECTION K
EY - A
Scrolls in succession WELDING CURRENT (
) - WIRE SPEED ( ) only on the HT4 panel.
In this case the values displayed are those for: HOLD.
ENCODER K
NOB - A
Adjusts the parameter displayed by the PARAMETER DISPLAY S
CREEN - A interrupting the HOLD
Function.
WIRE K
EY Activates loading of the wire without interrupting the HOLD Function.
WELDING MODE SELECTION K
EY Scrolls the various welding modes in succession, interrupting the HOLD Function.
WELDING MODE SELECTION LED The LED unit indicates the welding mode selected according to the VISION S
CREEN.
(continued)
