CEA DIGITECH vision PULSE 5000 - Page 61

37
ENCODER KNOB - SX
Adjusts the WIRE SPEED ( ) parameter (the WELDING CURRENT ( ) cannot be
adjusted).
In this case the values displayed become those pre-set.
After a period of 3 seconds the values displayed go back to those measured if possible.
DX K
EY
Scrolls in succession WELDING VOLTAGE ( ) - ELECTRONIC INDUCTANCE ( ) only on
the VISION S
CREEN.
In this case, where possible, the values displayed will be those measured.
ENCODER K
NOB - DX
Adjusts the parameter selected using the DX K
EY.
In this case the values displayed become those pre-set.
After a period of 3 seconds the values displayed go back to those measured if possible.

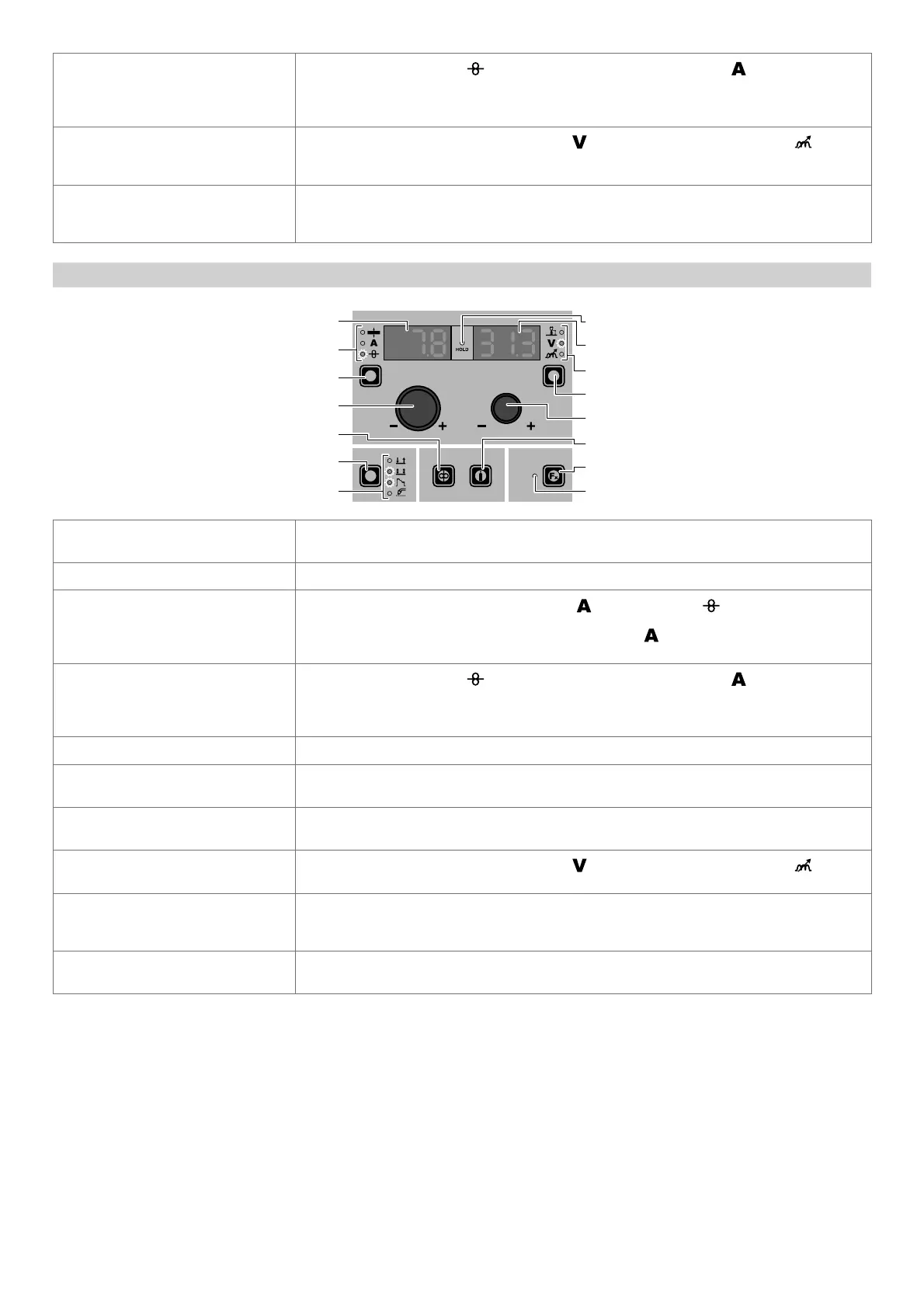

“HT4” CONTROL PANEL
WELDING MODE SELECTION LED
WELDING MODE SELECTION K
EY
WIRE KEY
ENCODER KNOB - A
PARAMETER SELECTION K
EY - A
PARAMETER SELECTION LED - A
PARAMETER DISPLAY S
CREEN - A
SPECIAL FUNCTIONS (FX) LED
SPECIAL FUNCTIONS (FX) KEY
GAS KEY
ENCODER KNOB - V
PARAMETER SELECTION KEY - V
PARAMETER SELECTION LED - V
PARAMETER DISPLAY SCREEN - V
HOLD Function LED
PARAMETER DISPLAY SCREEN - A
Shows the value (measured, if possible) for the parameter indicated by the PARAMETER
SELECTION LED - A.
PARAMETER SELECTION LED - A The LED unit shows the welding parameter selected using the PARAMETER SELECTION K
EY - A.
PARAMETER SELECTION K
EY - A
Scrolls in succession WELDING CURRENT ( ) - WIRE SPEED ( ) only on the HT4 panel.
In this case, where possible, the values displayed will be those measured.
When welding is in progress the WELDING CURRENT (
) is displayed continuously until
this key is pushed.
ENCODER K
NOB - A
Adjusts the WIRE SPEED (
) parameter (the WELDING CURRENT ( ) cannot be
adjusted).
In this case the values displayed become those pre-set.
After a period of 3 seconds the values displayed go back to those measured if possible.
WELDING MODE SELECTION LED The LED unit indicates the welding mode selected according to the VISION S
CREEN.
PARAMETER DISPLAY S
CREEN - V
Shows the value (measured, if possible) for the parameter indicated by the PARAMETER
SELECTION LED - V.
PARAMETER SELECTION LED - V
The LED unit indicates the welding parameter selected using the PARAMETER SELECTION K
EY
- V.
PARAMETER SELECTION K
EY - V
Scrolls in succession WELDING VOLTAGE (
) - ELECTRONIC INDUCTANCE ( ).
In this case, where possible, the values displayed will be those measured.
ENCODER K
NOB - V
Adjusts the parameter displayed by the PARAMETER DISPLAY S
CREEN - V.
In this case the values displayed become those pre-set.
After a period of 3 seconds the values displayed go back to those measured if possible.
SPECIAL FUNCTIONS (F
X) KEY
Only enables entering and exit afterwards from the SPECIAL FUNCTIONS Menu (SET UP
Fx) on the HT4 panel and not on the DH panel.
