CEA DIGITECH vision PULSE 5000 - Page 46

22

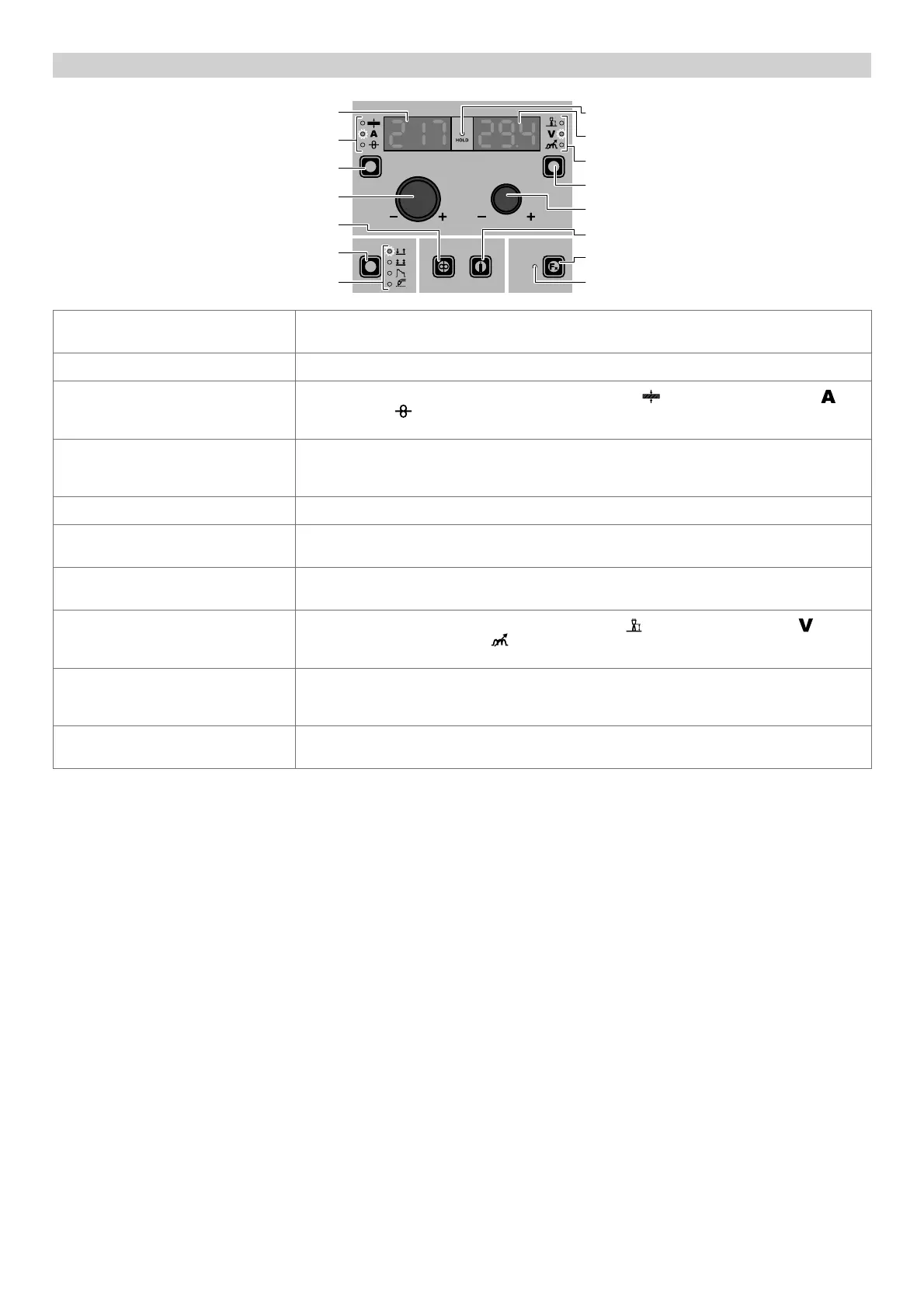

“HT4” CONTROL PANEL
WELDING MODE SELECTION LED
WELDING MODE SELECTION K
EY
WIRE KEY
ENCODER KNOB - A
PARAMETER SELECTION K
EY - A
PARAMETER SELECTION LED - A
PARAMETER DISPLAY S
CREEN - A
SPECIAL FUNCTIONS (FX) LED
SPECIAL FUNCTIONS (F
X) KEY
GAS KEY
ENCODER KNOB - V
PARAMETER SELECTION K
EY - V
PARAMETER SELECTION LED - V
PARAMETER DISPLAY S
CREEN - V
HOLD Function LED
PARAMETER DISPLAY SCREEN - A
Shows the value (measured, if possible) for the parameter indicated by the PARAMETER
SELECTION LED - A.
PARAMETER SELECTION LED - A The LED unit shows the welding parameter selected using the PARAMETER SELECTION K
EY - A.
PARAMETER SELECTION K
EY - A
Scrolls in succession THICKNESS OF WELDED ITEM (
) - WELDING CURRENT ( ) -
WIRE SPEED (
) only on panel HT4.
In this case, where possible, the values displayed will be those measured.
ENCODER K
NOB - A
Adjusts the parameter displayed by the PARAMETER DISPLAY S
CREEN - A.
In this case the values displayed become those pre-set.
After a period of 3 seconds the values displayed go back to those measured if possible.
WELDING MODE SELECTION LED The LED unit indicates the welding mode selected according to the VISION S
CREEN.
PARAMETER DISPLAY S
CREEN - V
Shows the value (measured, if possible) for the parameter indicated by the PARAMETER
SELECTION LED - V.
PARAMETER SELECTION LED - V
The LED unit indicates the welding parameter selected using the PARAMETER SELECTION K
EY
- V.
PARAMETER SELECTION K
EY - V
Scrolls in succession ARC LENGTH ADJUSTMENT (
) - WELDING VOLTAGE ( ) -
ELECTRONIC INDUCTANCE (
) only on panel HT4.
In this case, where possible, the values displayed will be those measured.
ENCODER K
NOB - V
Adjusts the parameter displayed by the PARAMETER DISPLAY S
CREEN - V.
In this case the values displayed become those pre-set.
After a period of 3 seconds the values displayed go back to those measured if possible.
SPECIAL FUNCTIONS (F
X) KEY
Only enables entering and exit afterwards from the SPECIAL FUNCTIONS Menu (SET UP
Fx) on the HT4 panel and not on the DH panel.
