34

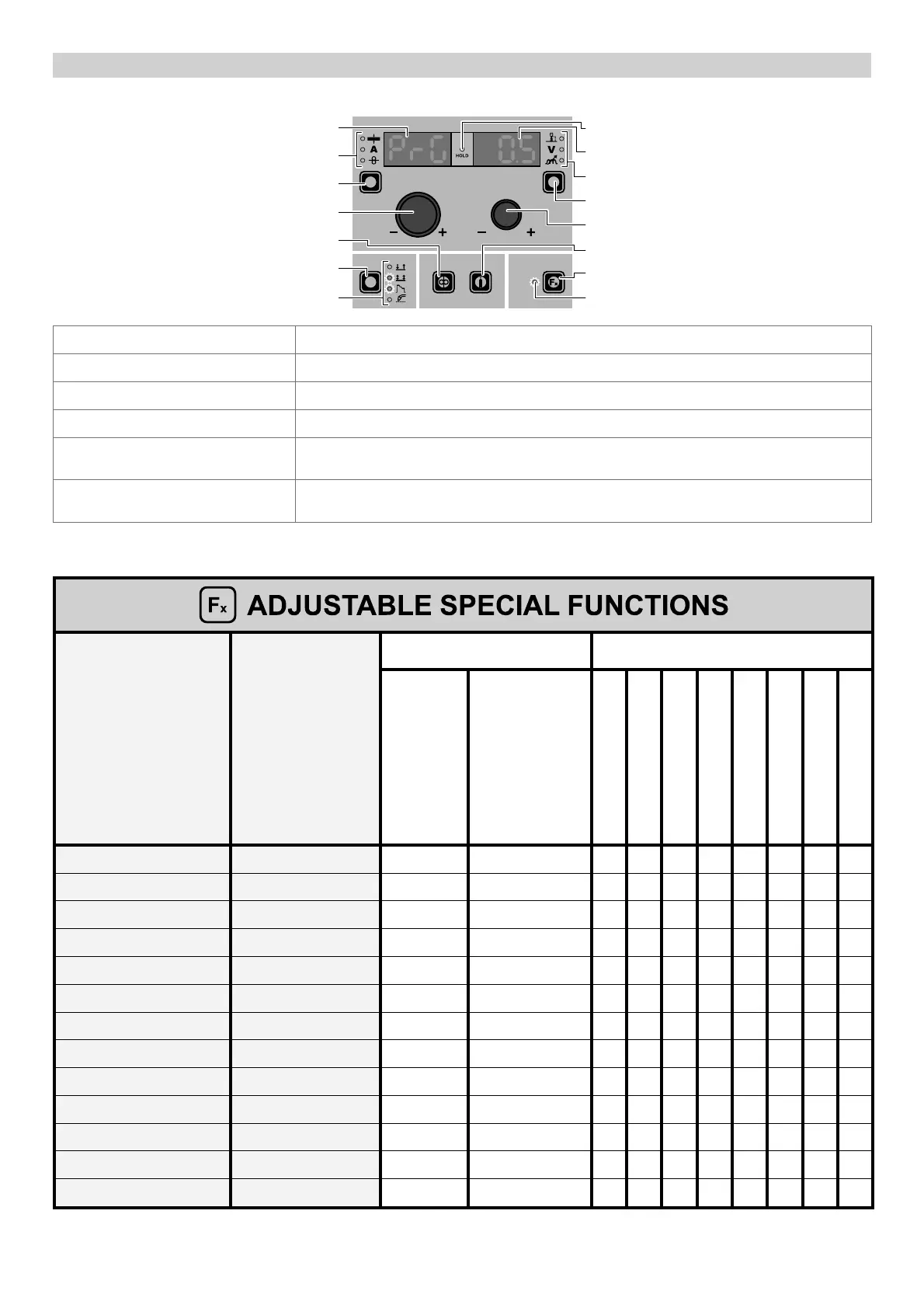

“HT4” CONTROL PANEL
To access the SPECIAL FUNCTIONS Menu (SET UP Fx) push the MENU KEY.
WELDING MODE SELECTION LED
WELDING MODE SELECTION K
EY
WIRE KEY
ENCODER KNOB - A
PARAMETER SELECTION K
EY - A
PARAMETER SELECTION LED - A
PARAMETER DISPLAY S
CREEN - A
SPECIAL FUNCTIONS (FX) LED
SPECIAL FUNCTIONS (F
X) KEY
GAS KEY
ENCODER KNOB - V
PARAMETER SELECTION K
EY - V
PARAMETER SELECTION LED - V
PARAMETER DISPLAY S
CREEN - V
HOLD Function LED
PARAMETER DISPLAY SCREEN - A Displays the selected SPECIAL FUNCTION (Fx).
ENCODER K
NOB - A Used to select the various SPECIAL FUNCTIONS (Fx).
PARAMETER DISPLAY S
CREEN - V Displays the value for the selected SPECIAL FUNCTION (Fx).
ENCODER K
NOB - V Used to change the selected SPECIAL FUNCTION (Fx) value.
SPECIAL FUNCTIONS (F
X) KEY
Only enables entering and exit afterwards from the SPECIAL FUNCTIONS Menu (SET UP
Fx) on the HT4 panel and not on the DH panel.
SPECIAL FUNCTIONS (F
X) LED
The operator must press the SPECIAL FUNCTIONS (SET UP F
X) KEY for it to light up and be
included in the SPECIAL FUNCTIONS Menu (SET UP Fx).
The SPECIAL FUNCTIONS (Fx) related to the Manual MIG-MAG process correspond as follows to those on the wire feeder:
Special function
PARAMETER DISPLAY
Screen - A
PARAMETER DISPLAY Screen - V Welding mode
Default Range TWO STROKE (2T) FOUR STROKE (4T) CRATER 2T CRATER 4T SPOT WELDING STITCH WELDING CYCLE STANDARD CYCLE ADVANCED
PRE GAS PrG 0.1s (0.0 - 2.0)s ●●●●●●●●
STARTING SPEED StS 0 -30 - +30 ●●●●●●●●
HOT START Hot 0 -30 - +30 ●●●●●●●●
STITCH TIME F05 1.0s (0.1 - 8.0)s ●
STITCH PAUSE F06 1.0s (0.1 - 8.0)s ●
SPOT TIME F07 3.0s (0.1 - 20.0)s ●
INITIAL WIRE SPEED F08 5.0m/min (0.6 - MAX)m/min ●● ●●
INITIAL VOLTAGE F09 25.0V (min - MAX)V ● ● ●●
INITIAL CRATER TIME F10 1.0s (0.0 - 5.0)s ●
INITIAL SLOPE F11 1.0s (0.0 - 5.0)s ●● ●●
FINAL SLOPE F12 1.0s (0.0 - 8.0)s ●● ●●
FINAL WIRE SPEED F13 5.0m/min (0.6 - MAX)m/min ●● ●●
FINAL VOLTAGE F14 25.0V (min - MAX)V ● ● ●●
(continued)
