Chapter 3 Router Hardware Description
Router Overview

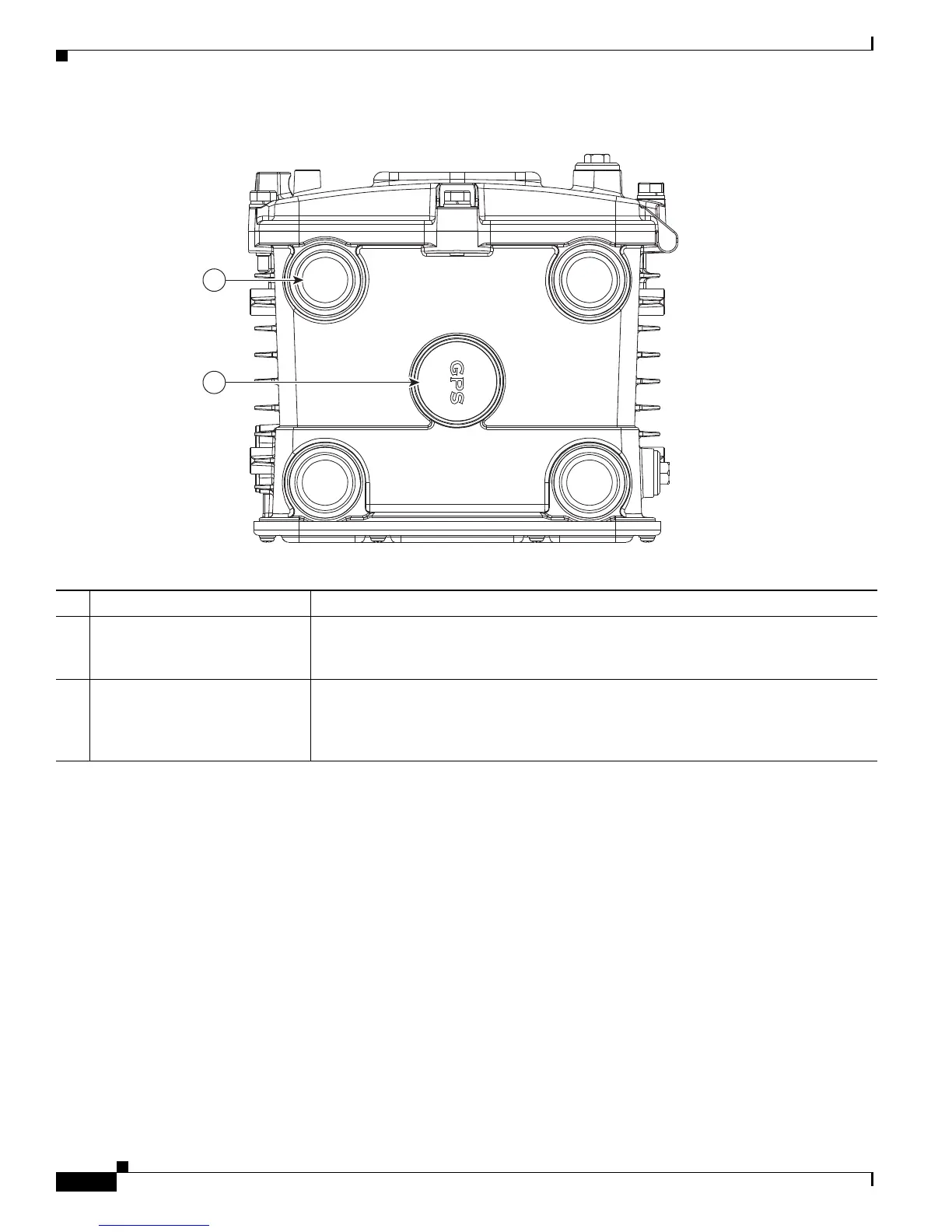

Figure 3-6 Router Top Exterior
Table 3-6 Router Top Exterior Features
Description Detailed Information
1 Antenna connectors (4) Install supported integrated or external antennas in these ports. For detailed
information about the router antennas, including how to find installation instructions,
see the “Antennas” chapter.
2 GPS antenna The GPS antenna connects the router GPS, which is described in the “GPS Module”
section on page 3-32, to the GPS source. For more information about GPS antenna,
including specifications and frequencies supported, see the “GPS Antenna” section on
page 10-2.
300537
1
2
