Chapter 3 Installing the Switch
Installing the Cable Management System (Catalyst 6509-NEB-A Switch Only)
Step 3 Loosen the two captive installation screws on the front panel. (See Figure 3-12.)

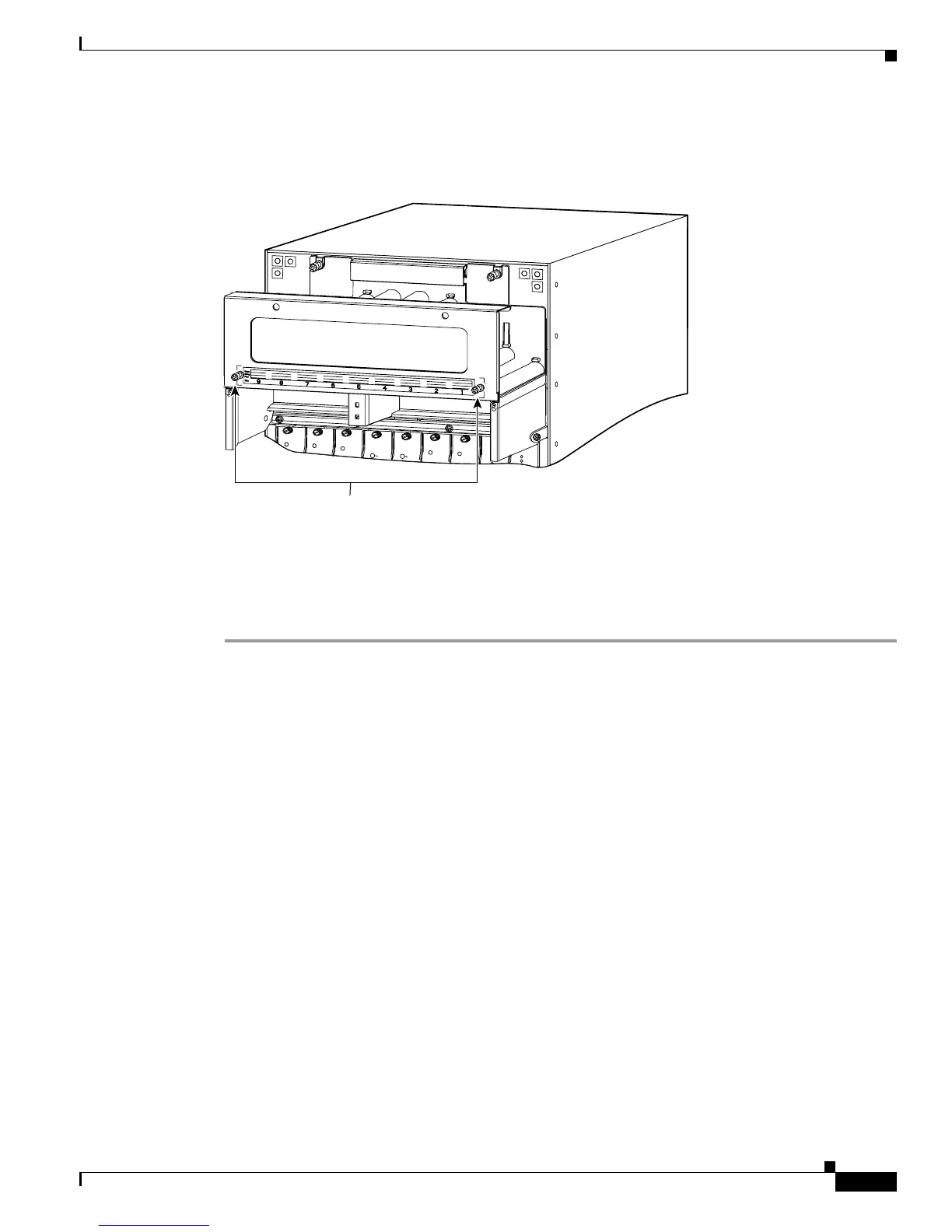

Figure 3-12 Removing the Front Panel
Step 4 Remove the front panel, and set it aside.
Step 5 Attach the interface cables to the modules, and route the cables through the cable guide.
Step 6 Install the front panel by hooking the top of the front panel over the cable guide.
Step 7 Tighten the two captive installation screws. (See Figure 3-12.)
