Cisco 6509 - Catalyst Chassis Switch User Manual

A-34
Catalyst 6500 Series Switches Installation Guide
OL-5781-04
Appendix A Power Supply Specifications
3000 W AC-Input Power Supply
3000 W AC-Input Power Supply
The 3000 W AC-input power supply (WS-CAC-3000W) is supported in the following Catalyst 6500
series switches:
• Catalyst 6506
• Catalyst 6506-E
• Catalyst 6509
• Catalyst 6509-E
• Catalyst 6509-NEB
• Catalyst 6509-NEB-A
• Catalyst 6513
The 3000 W power supply (see Figure A-13) shares the same form factor as the 1000 W, 1300 W,
2500 W, 4000 W, and 6000 W AC-input power supplies.
Note The 3000 W AC-input power supply needs 220 VAC to deliver 3000 W of power. When operating with
110 VAC, it delivers only 1400 W. In addition, the power supply needs 16 A, regardless of whether it is
plugged into 110 VAC or 220 VAC.

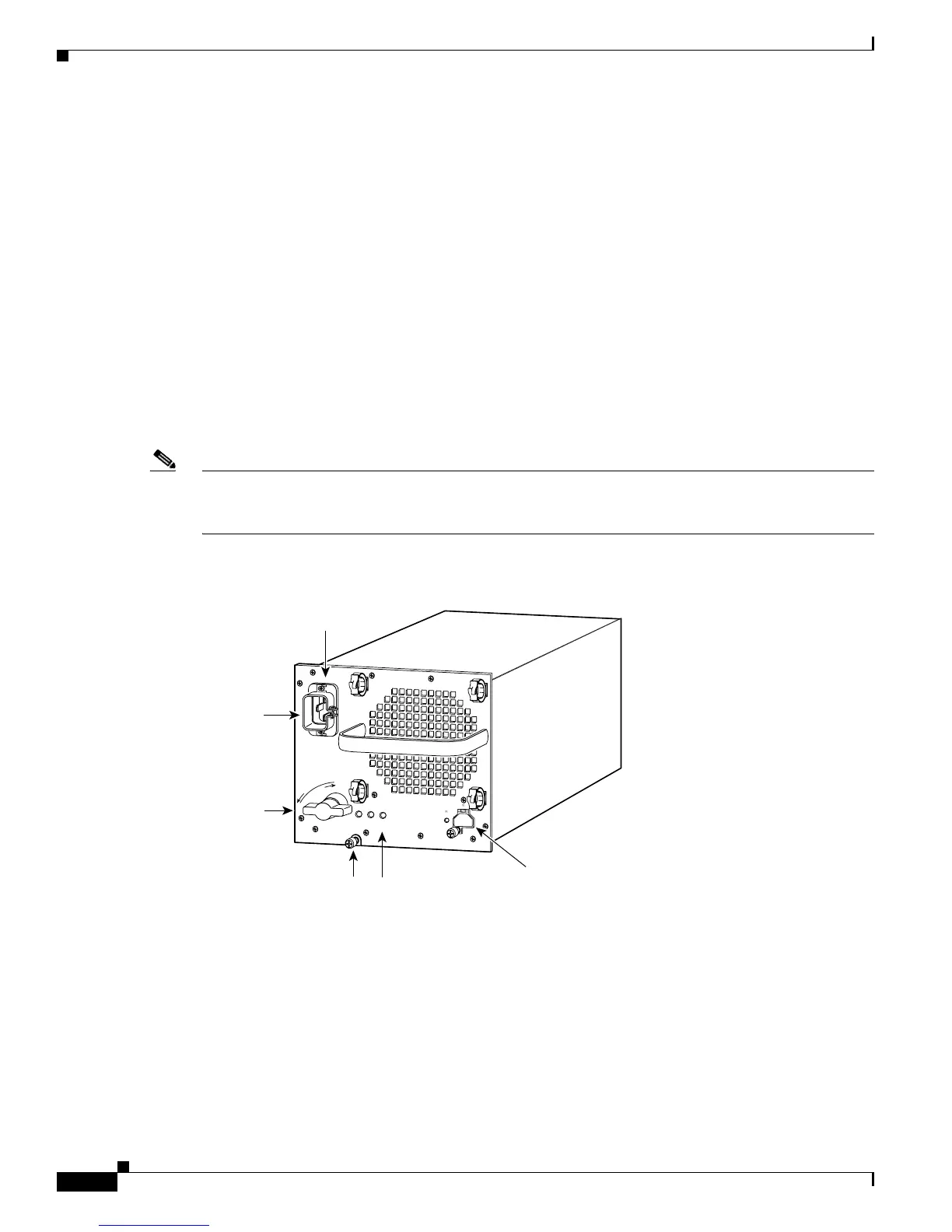

Figure A-13 3000 W AC-Input Power Supply
INPUT
OK
FAN
OK
OUTPUT
FAI L
OUTPUT 42V /17A
42V /17A
OK
I
I
N
S
T
A
L
L
R
U
N
O
110-120V - 15A
200-240V - 15A
60/50HZ
+
105069
Power
switch
Cable
retention
device
AC power
connection
Captive installation
screw
Status LEDs (3)
External power
connector cover
