Catalyst 6500 Series Switches Installation Guide
OL-5781-04
Appendix A Power Supply Specifications
4000 W AC-Input and DC-Input Power Supplies

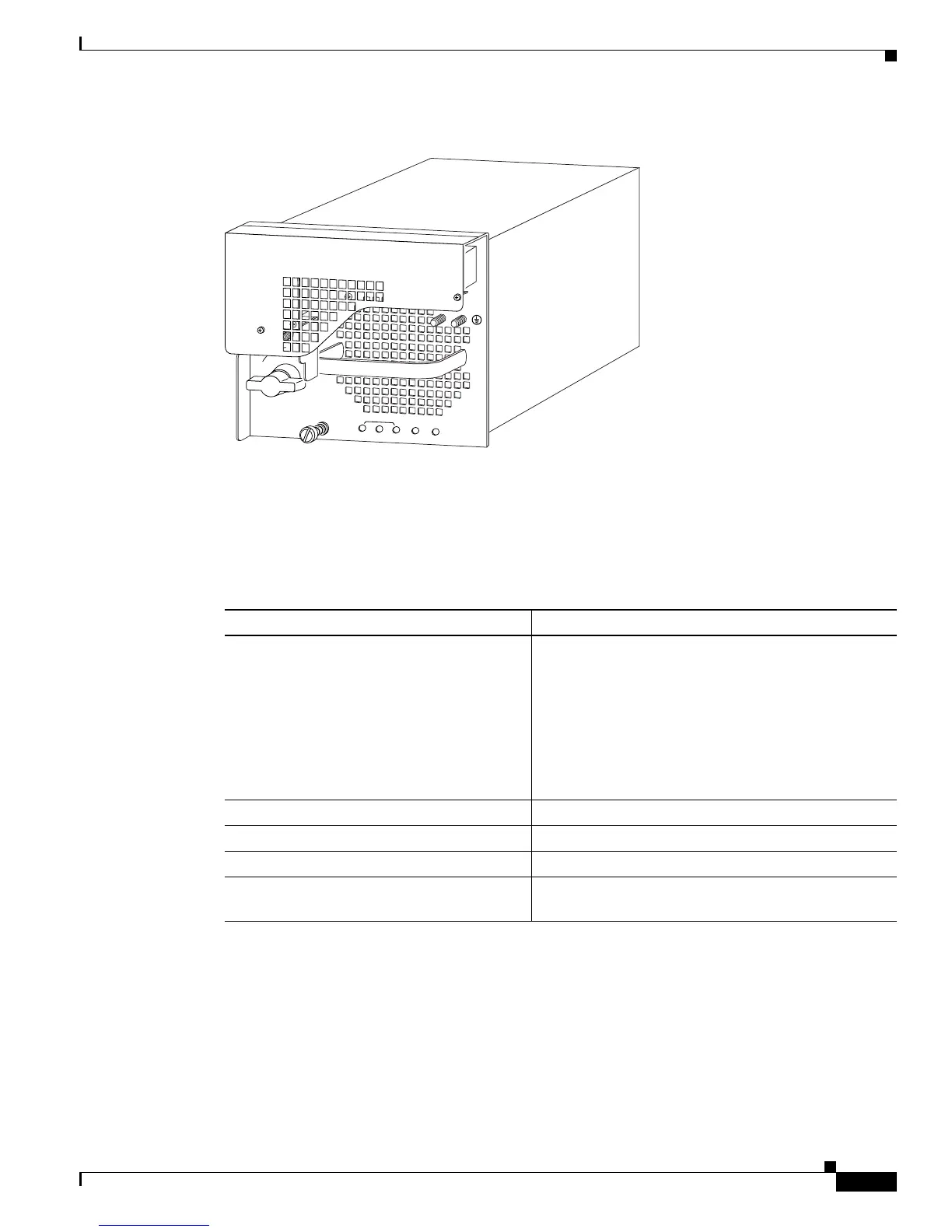

Figure A-15 4000 W DC-Input Power Supply
4000 W Power Supply Specifications
Table A-17 lists the specifications for the 4000 W AC-input and DC-input power supplies.
INPUT OK
FAN
OK
OUTPUT
FAIL
I
0
97297
1
3
2
+
VE-1
-
VE-1
+
VE-2
-
VE-2
+
VE-3
-
VE-3
Table A-17 4000 W AC-Input and DC-Input Power Supplies Specifications
Specification Description
AC-input type High-line input with power factor correction (PFC)
included.
Note Power factor correction is a standard feature on
all Catalyst 6500 series AC-input power
supplies. PFC reduces the reactive component
in the source AC current allowing higher power
factors (typically 99 percent or better) and
lower harmonic current components.
AC-input voltage 200 to 240 VAC (±10% for full range)
AC-input current 23 A
AC-input frequency 50/60 Hz (nominal) (±3% for full range)
Power supply output capacity (AC power
supply)
4000 W maximum
