A-47
Catalyst 6500 Series Switches Installation Guide
OL-5781-04
Appendix A Power Supply Specifications
AC Power Cord Illustrations
AC Power Cord Illustrations
This section contains the AC power cord illustrations. Note that an AC power cord may be used with
several power supplies. See the power supply specifications tables for the correct AC power cord
illustrations for your power supply.

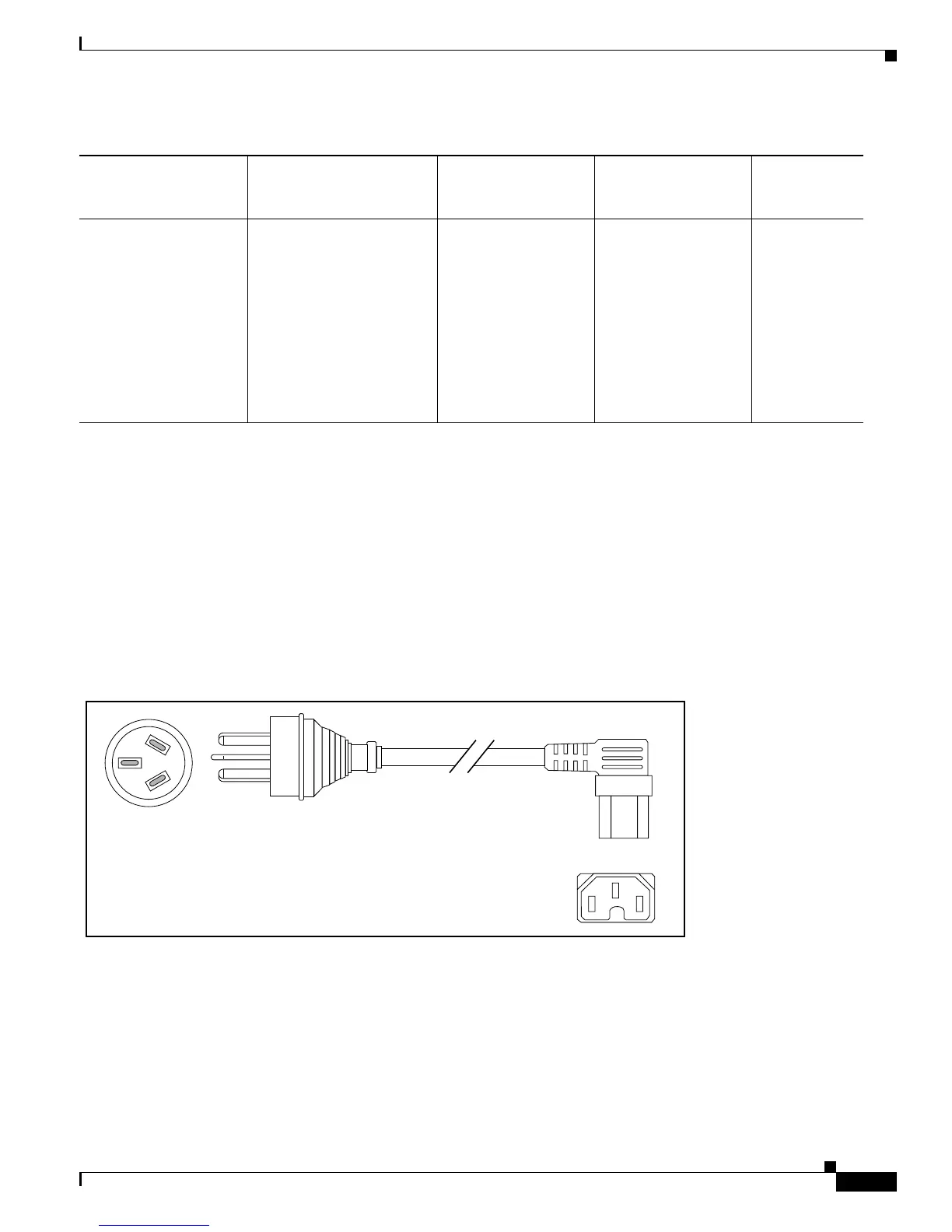

Figure A-17 CAB-AC10A-90L-AU=
Japan, North America
(locking plug)
200–240VAC operation
CAB-AC-C6K-TWLK= NEMAL6-20 16A, 250VAC Figure A-41
Japan, North America
100–120VAC
operation
1
CAB-7513AC=
2
NEMA 5-20 16 A, 125 VAC Figure A-33
Power Distribution Unit
(PDU
3
CAB-C19-CBN= IEC 60320 C19
IEC 60320 C20
16 A, 250 VAC Figure A-44
Switzerland CAB-ACS-16= SEV 5934-2 Type 23 16 A, 250 VAC Figure A-42
1. The 6000 W power supply operating on two 110 VAC inputs delivers 2900 W.
2. When operating with 100–120VAC, you must use two AC power cords and the power supply output is limited to 2900 W.
3. The PDU power cable is designed for users who power their switch from a PDU. The end of the cable that plugs into the Catalyst 6500 series switch
chassis has a C19 connector; the other end of the cable that plugs into the PDU has a C20 connector.
Table A-20 6000 W Power Supply AC Power Cords (continued)
Locale
Power Cord
Part Number Source Plug Type Cordset Rating
Power Cord
Reference
Illustration
Connector: IEC 60320 C15
Plug: SAA AS 3112
Cordset rating: 10 A, 250 V
Length: 8 ft 2 in. (2.5 m)
113341
