B-2
Catalyst 6500 Series Switches Installation Guide
OL-5781-04
Appendix B Transceivers, Module Connectors, and Cable Specifications
Transceivers
100-MB Transceiver Modules
The 100-MB SFP transceiver modules are listed and described in Table B-1. See Figure B-1 for a view
of the 100-MB SFP transceiver module.

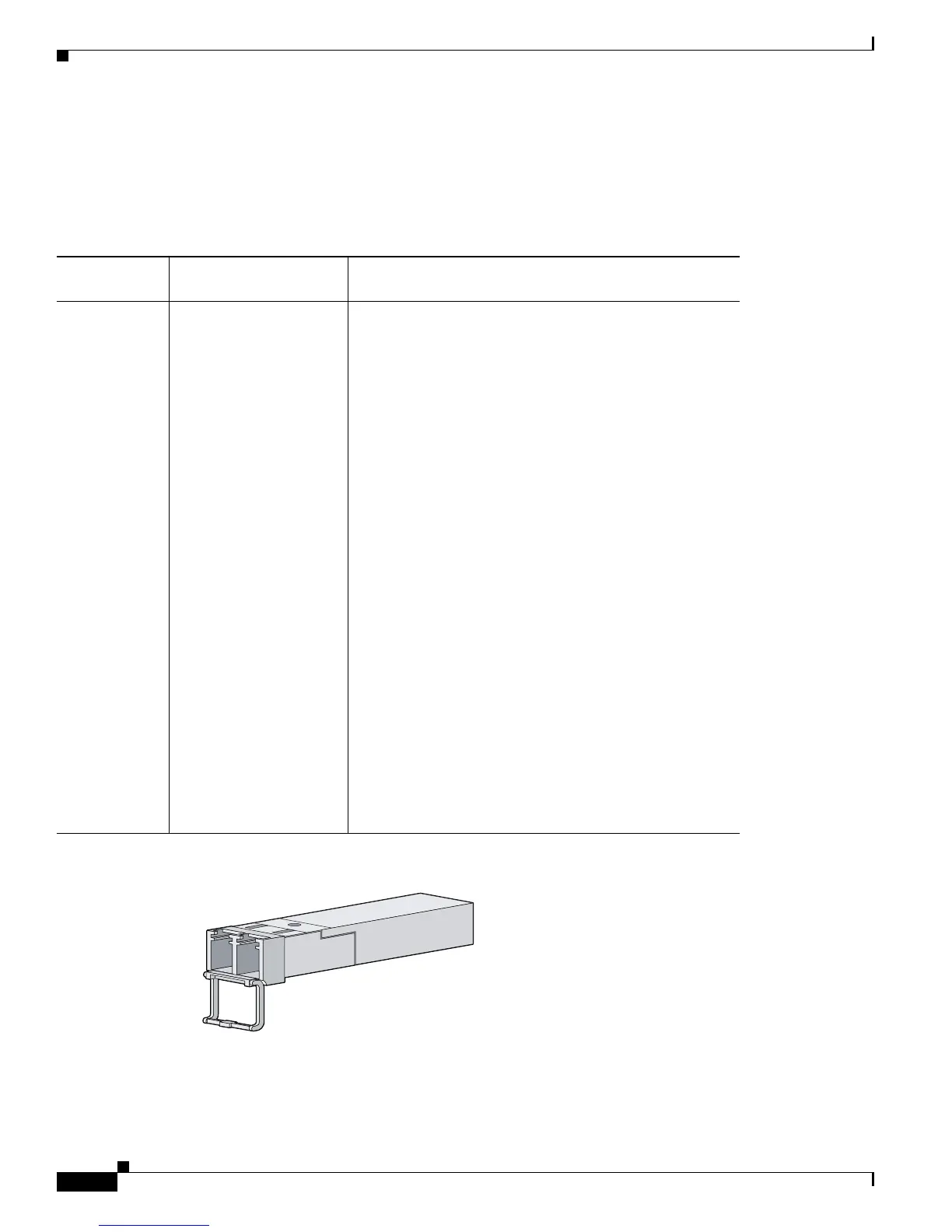

Figure B-1 100-MB SFP Transceiver Module
Table B-1 100-MB Transceiver Modules Descriptions
Transceiver
Type Product Number Description
SFP
Transceivers
GLC-FE-100FX=
• 100BASE-FX SFP for 100 Mb (Fast Ethernet) ports
• Operates with MMF
• 1310-nm wavelength
• LC duplex connector
• Cabling distance up to 1.24 mi (2 km)
GLC-FE-100LX=
• 100BASE-LX10 SFP for 100 Mb (Fast Ethernet) ports
• Operates with SMF (ITU G.652)
• 1310-nm wavelength
• LC duplex connector
• Cabling distance up to 6.2 mi (10 km)
GLC-FE-100BX-D=
• 100BASE-FX SFP for 100 Mb (Fast Ethernet) ports,
• Operates with single-strand SMF (ITU G.652),
• 1310-nm wavelength
• LC single connector
• Cabling distance up to 6.2 mi (10 km)
GLC-FE-100BX-U=
• 100BASE-FX SFP for 100 Mb (Fast Ethernet) ports
• Operates with single-strand SMF (ITU G.652)
• 1310-nm wavelength
• LC single connector
• Cabling distance up to 6.2 mi (10 km)
114944
