Catalyst 6500 Series Switches Installation Guide
OL-5781-04
Appendix A Power Supply Specifications
2500 W AC-Input and DC-Input Power Supplies

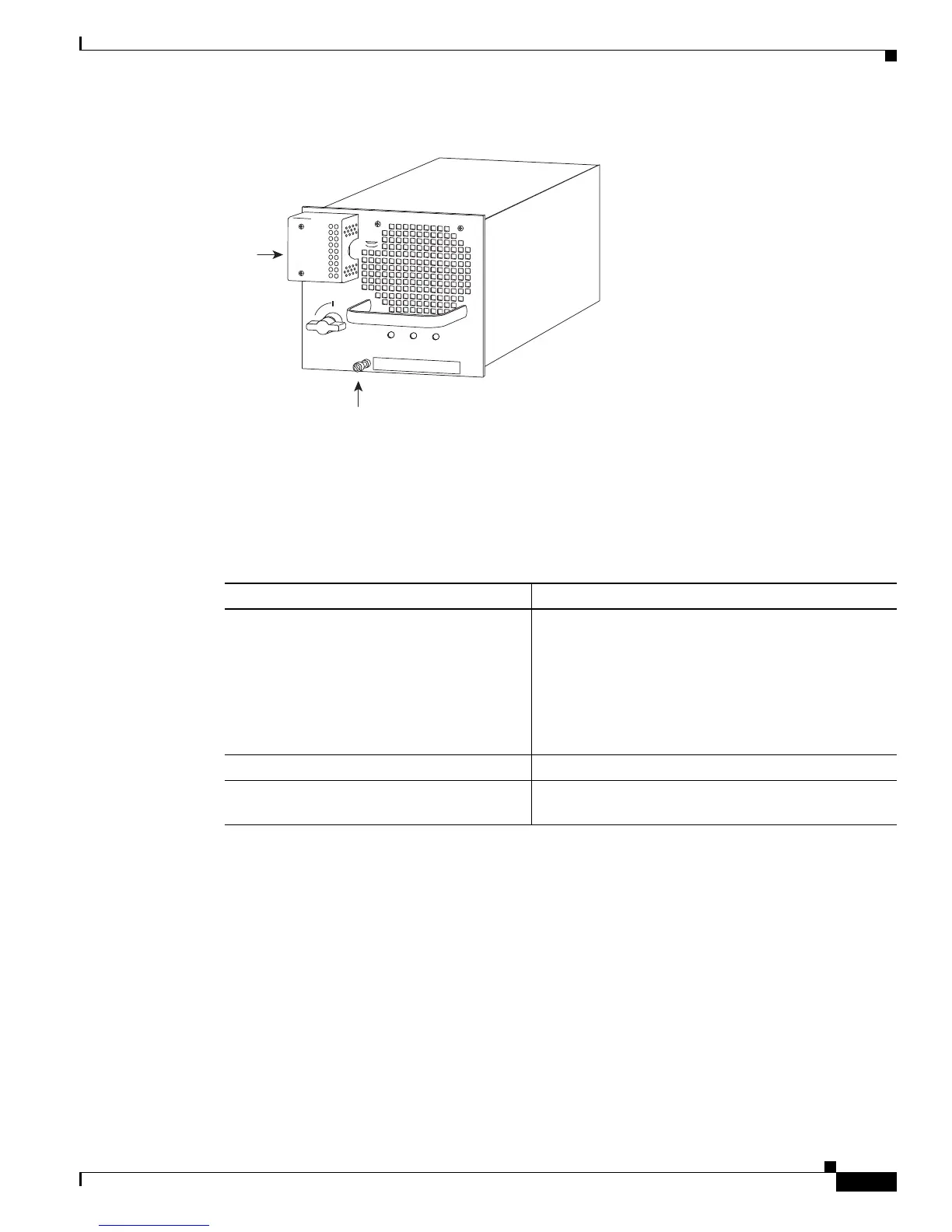

Figure A-10 2500 W DC-input Power Supply
2500 W Power Supply Specifications
Table A-11 lists the specifications for the 2500 W AC-input and DC-input power supplies.
Terminal
block
cover
Captive installation screw
o
16030
INPUT
OK
FAN
OK
OU
TPU
T
FAIL
Table A-11 2500 W Power Supply Specifications
Specification Description
AC-input type Autoranging input with power factor correction (PFC).
Note Power factor correction is a standard feature on
all Catalyst 6500 series AC-input power
supplies. PFC reduces the reactive component
in the source AC current allowing higher power
factors (typically 99 percent or better) and
lower harmonic current components.
AC-input voltage 100 to 120 VAC, 200 to 240 VAC (±10% for full range)
AC-input current 16 A maximum at 200 VAC at 2500 W output
16 A maximum at 100 VAC at 1300 W output
