A-13
Catalyst 6500 Series Switches Installation Guide
OL-5781-04
Appendix A Power Supply Specifications
1300 W AC-Input and DC-Input Power Supplies
1300 W AC-Input and DC-Input Power Supplies
The 1300 W AC-input power supply (WS-CAC-1300W) and 1300 W DC-input power supply
(WS-CDC-1300W) are supported in the following Catalyst 6500 series switches:
• Catalyst 6506
• Catalyst 6509
• Catalyst 6509-NEB
The 1300 W power supply (see Figure A-5 for the 1300 W AC-input power supply and Figure A-6 for
the 1300 W DC-input power supply) shares the same form factor as the 1000 W, 2500 W, 3000 W,
4000 W, and 6000 W AC-input power supplies.

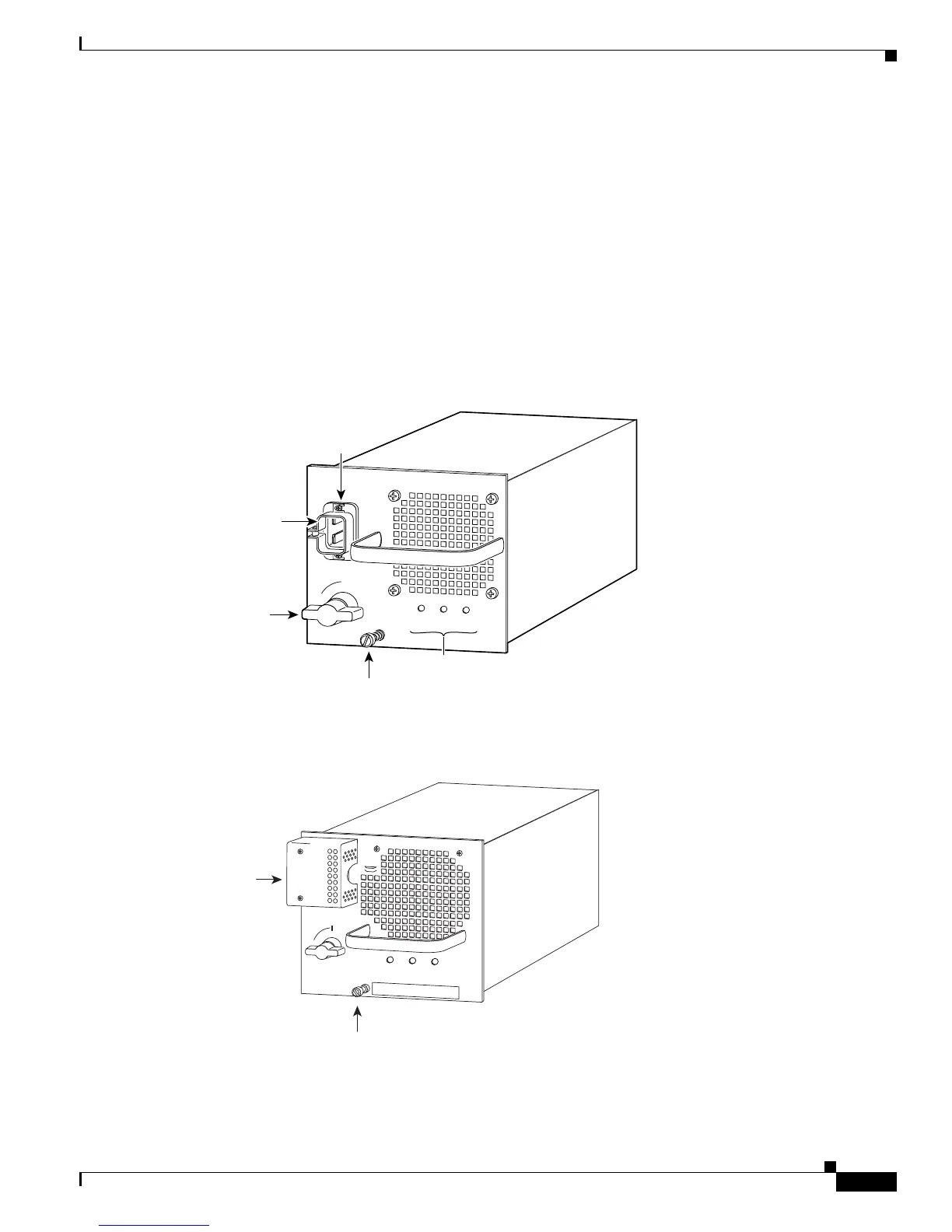

Figure A-5 1300 W AC-input Power Supply
Figure A-6 1300 W DC-Input Power Supply
Power
switch
Cable
retention
device
AC power
connection
INPUT
OK
FAN
OK
OUTPUT
FAIL
Captive installation
screw
Status LEDs
16029
I
0
Terminal
block
cover
Captive installation screw
o
16030
INPUT
OK
FAN
OK
OUTPUT
FAIL
