A-18
Catalyst 6500 Series Switches Installation Guide
OL-5781-04
Appendix A Power Supply Specifications
1400 W AC-Input Power Supply
1400 W AC-Input Power Supply
The 1400 W AC-input power supply (PWR-1400-AC) can be installed in the Catalyst 6503 switch and
Catalyst 6503-E switch chassis only. Due to form factor differences, the 1400 W AC-input power supply
cannot be installed in any other Catalyst 6500 series switch chassis.
The 1400 W power supplies (see Figure A-7) do not connect directly to source AC but use power entry
modules (PEMs), located on the front of the Catalyst 6503 and Catalyst 6503-E switch chassis, to
connect the site power source to the power supply located in the back of the chassis.
The AC-input PEM (PEM-20A-AC+) (shown in Figure A-8) provides an input power connection on the
front of the router chassis to connect the site power source to the power supply.
The PEMs have an illuminated power switch, current protection, surge and EMI suppression, and filtering
functions.

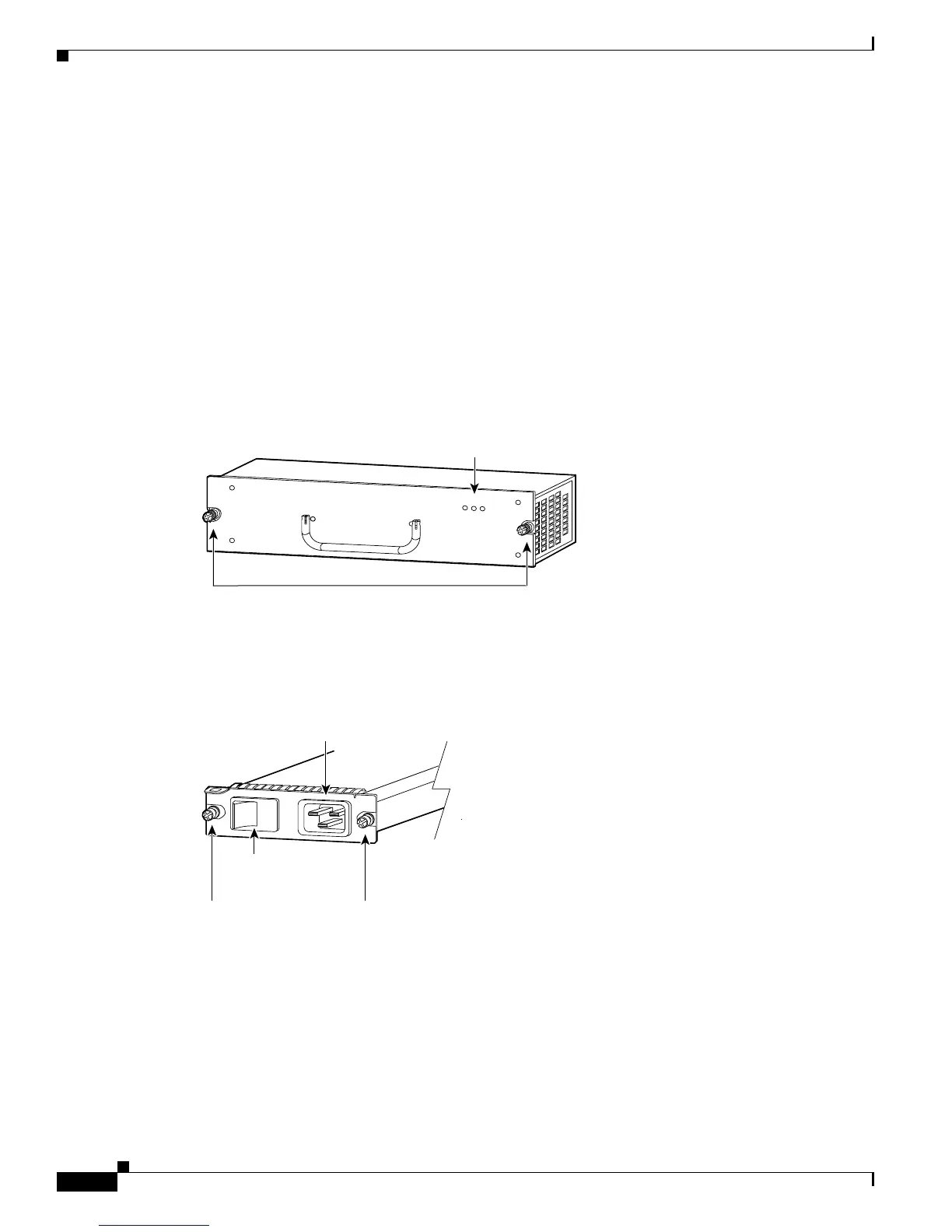

Figure A-7 1400 W AC-Input Power Supply (PWR-1400-AC)
Figure A-8 1400 W AC-Input PEM (PEM-20A-AC+)
63183
INPUT
OK
FAN
OK
OUTPU
T
FAI L
Captive installation screws
Status LEDs
Captive installation screws
IEC 60320 C19 connector
AC power
switch
130057
PEM-20A-AC+
50-60 Hz
120-240V 15A
