A-28
Catalyst 6500 Series Switches Installation Guide
OL-5781-04
Appendix A Power Supply Specifications
2700 W AC-Input and DC-Input Power Supplies
2700 W AC-Input and DC-Input Power Supplies
The 2700 W AC-input power supply (PWR-2700-AC/4) and 2700 W DC-input power supply
(PWR-2700-DC/4) are supported only in the Catalyst 6504-E switch. See Figure A-11 for the 2700 W
AC-input power supply and Figure A-12 for the 2700 W DC-input power supply.
Note The 2700 W AC-input power supply needs 220 VAC to deliver 2700 W of power. When powered with
110 VAC, it delivers only 1350 W. In addition, the power supply needs 16 A, regardless of whether it is
plugged into 110 VAC or 220 VAC.

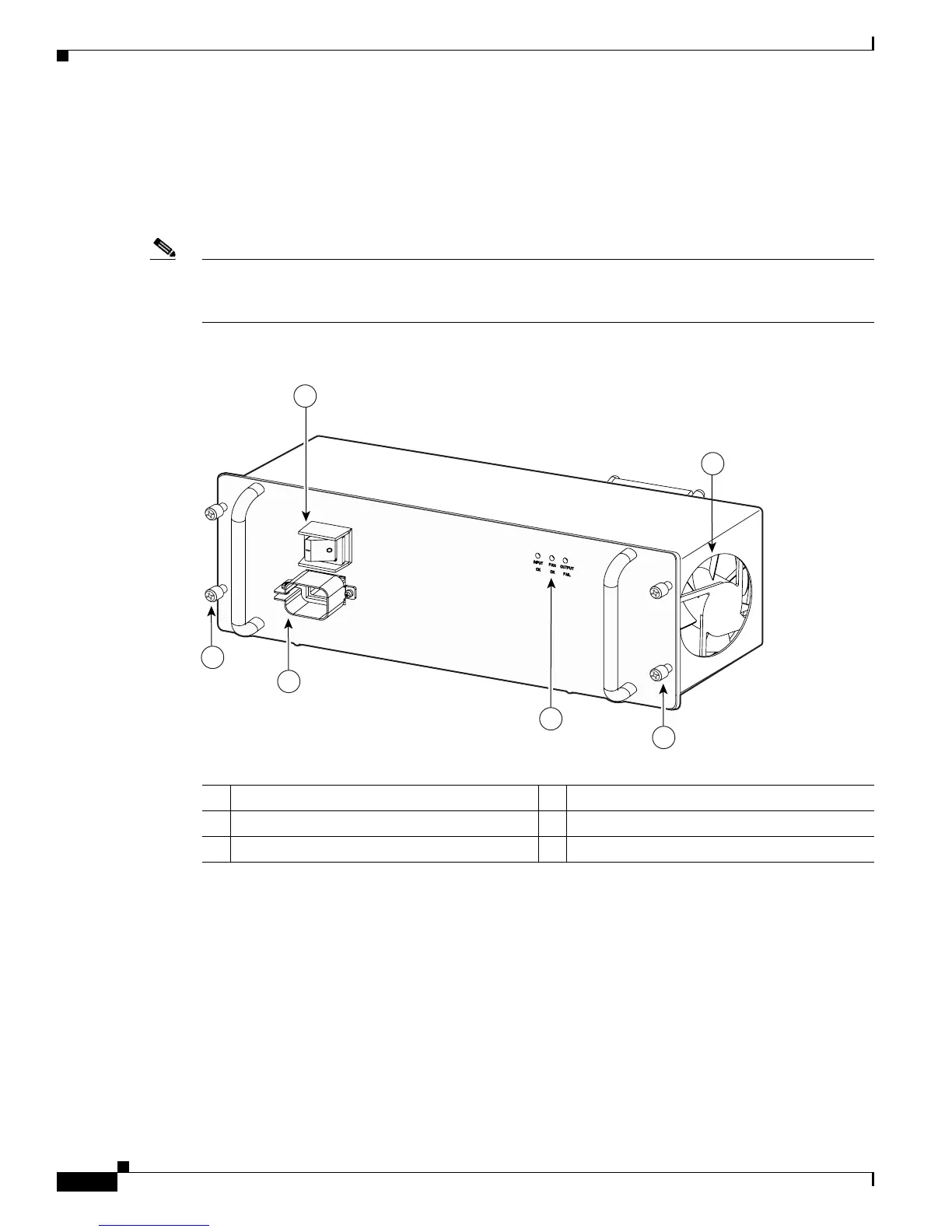

Figure A-11 2700 W AC-Input Power Supply
1 Power ON/OFF switch 4 Status LEDs
2 Power supply fan 5 AC In receptacle
3 Captive installation screw
154028
ALL FASTERNERS MUST BE FULLY ENGAGED
PRIOR TO OPERATING THE POWER SUPPLY
PWR-2700-AC/4
1
2
4
5
3
3
