Appendix A Power Supply Specifications
4000 W AC-Input and DC-Input Power Supplies
4000 W AC-Input and DC-Input Power Supplies
The 4000 W AC-input and DC-input power supplies, (WS-CAC-4000W-US, WS-CAC-4000W-INT, and
PWR-4000-DC) are supported in the following Catalyst 6500 series switches:
• Catalyst 6506
• Catalyst 6506-E
• Catalyst 6509
• Catalyst 6509-E
• Catalyst 6509-NEB
• Catalyst 6509-NEB-A
• Catalyst 6513
The 4000 W AC-input and DC-input power supplies, shown in Figure A-14 and Figure A-15, share the
same form factor as the 1000 W, 1300 W, 2500 W, and 3000 W power supplies.

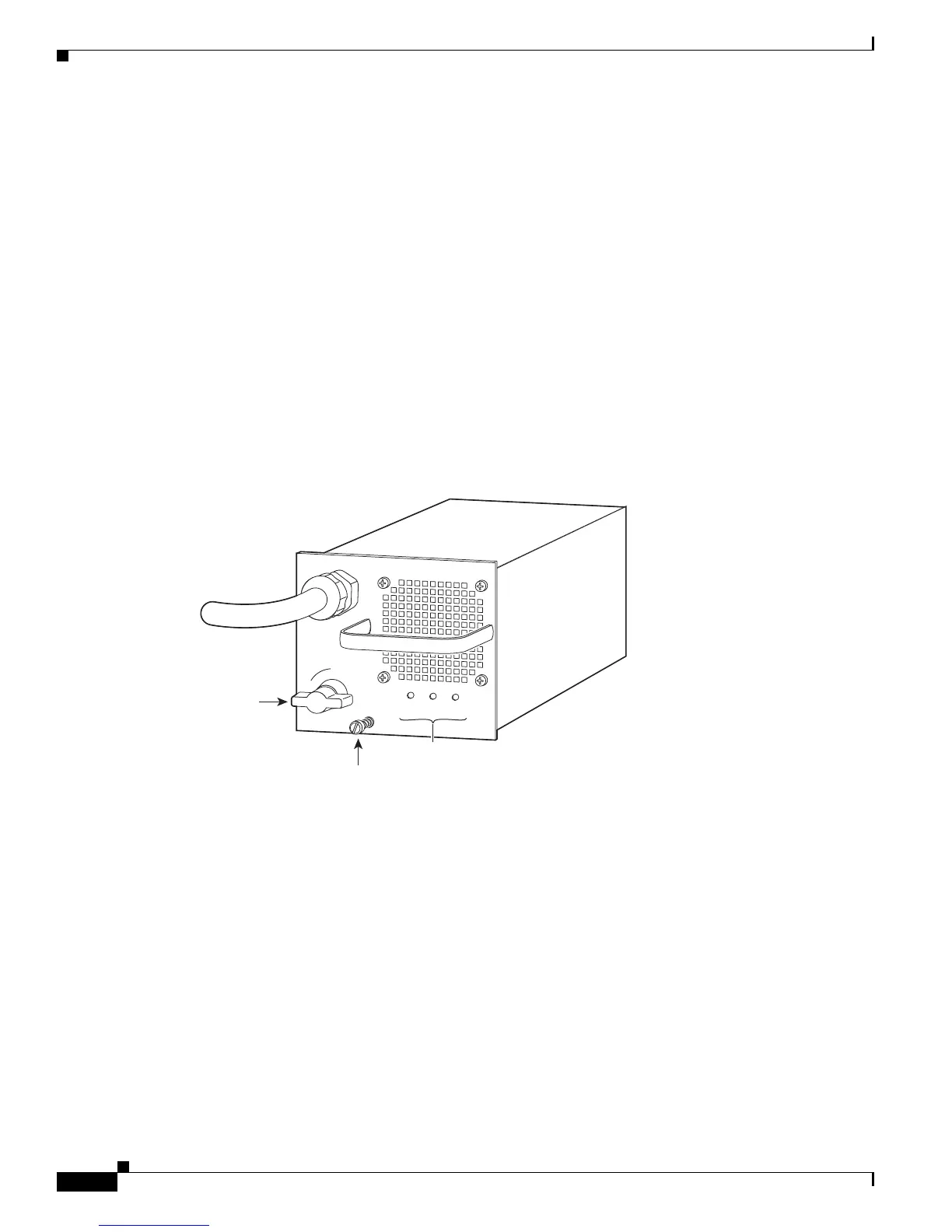

Figure A-14 4000 W AC-Input Power Supply
Power
switch
INPUT
OK
FAN
OK
OUTPU
T
FAIL
Captive installation
screw
Status LEDs
85756
I
0
