Coarse Wave Division Multiplexing GBICs
Eight GBICs are available for use with the CWDM Passive Optical System. (See
Figure 2-11.) Table 2-13 lists the available GBICs. These eight GBICs are
installed in the Catalyst 6500 series modules that support GBICs and are used
with the CWDM Passive Optical System. For more information on the CWDM
Passive Optical System, refer to the Installation Note for the Cisco CWDM
Passive Optical System.

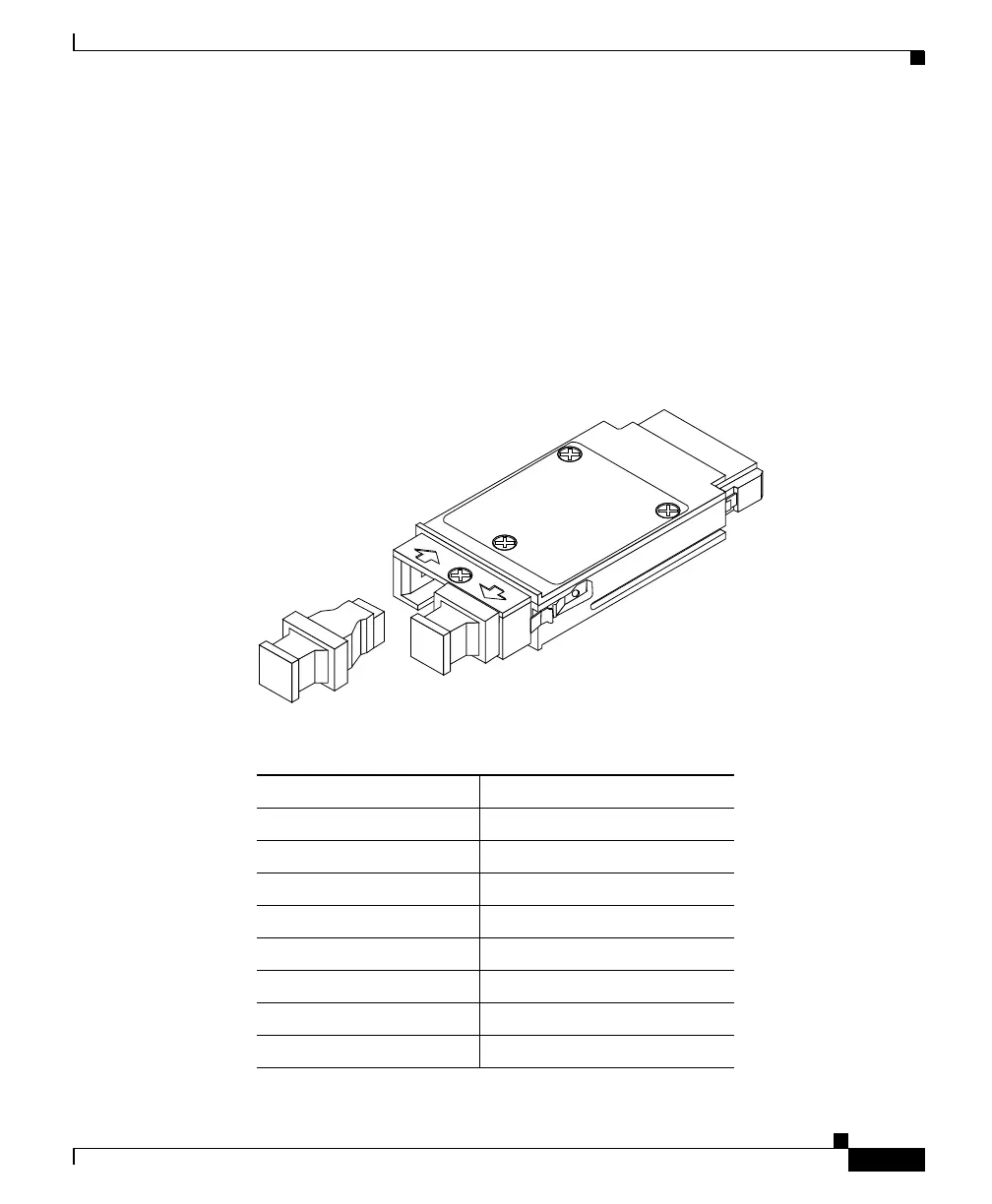

Figure 2-11 CWDM GBIC
Table 2-13 CWDM GBICs
Model Number CWDM GBIC Wavelength
CWDM-GBIC-1470= 1470 nm laser, single mode
CWDM-GBIC-1490= 1490 nm laser, single mode
CWDM-GBIC-1510= 1510 nm laser, single mode
CWDM-GBIC-1530= 1530 nm laser, single mode
CWDM-GBIC-1550= 1550 nm laser, single mode
CWDM-GBIC-1570= 1570 nm laser, single mode
CWDM-GBIC-1590= 1590 nm laser, single mode
CWDM-GBIC-1610= 1610 nm laser, single mode
